GEYA

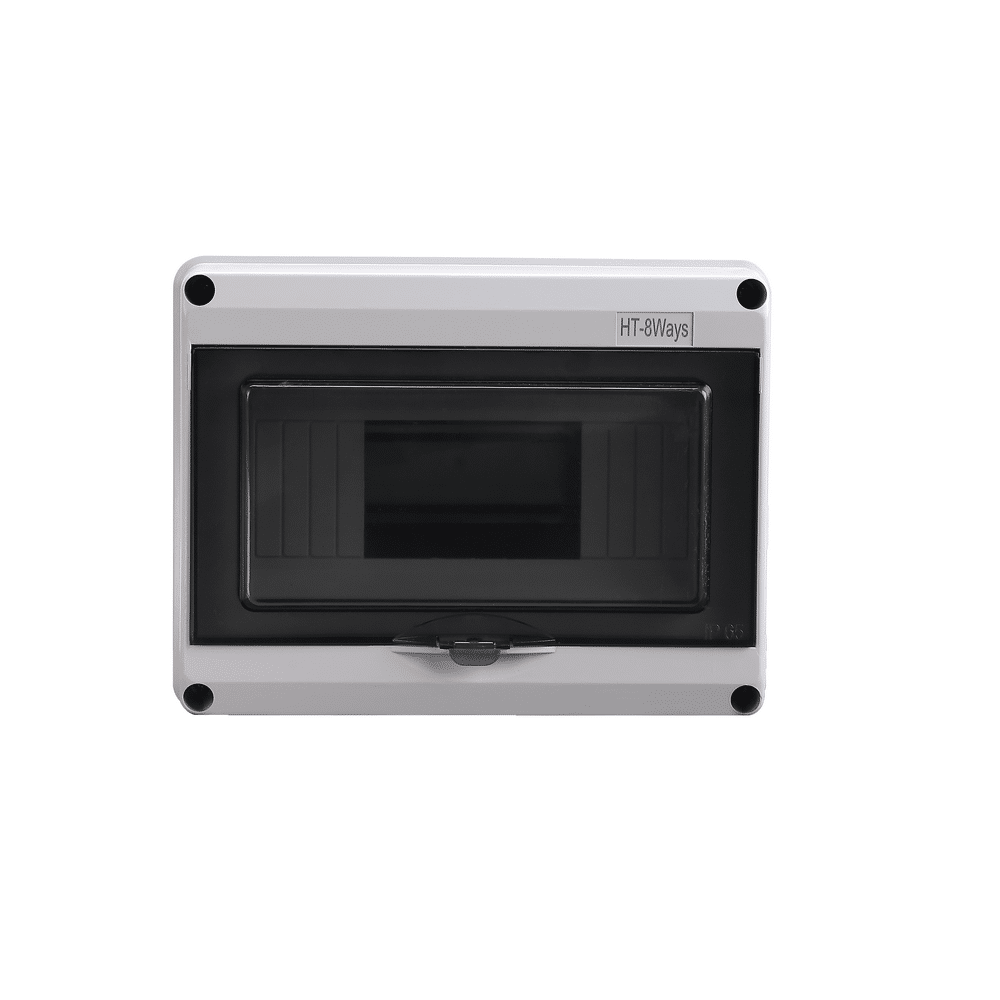

HT Distribution Box
Պարագաներ և այլ սարքեր։ HT Distribution Box։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Պարագաներ և այլ սարքեր |
Տեխնիկական բնութագրեր
| Model Code | Outside Dimension (mm) | G. Weight | N. Weight | Qty/Carton | Carton Dimension | ||
| L | W | H | |||||
| CHA-HT 5WAYS | 115 | 150 | 90 | 13 | 11.9 | 40 | 49x33x48 |
| CHA-HT 8WAYS | 197 | 150 | 90 | 14.2 | 13.2 | 30 | 48x 41.5 x48.5 |
| CHA-HT 12WAYS | 250 | 193 | 105 | 16.3 | 15.3 | 20 | 52.5 x40.5×57 |
| CHA-HT 15 WAYS | 305 | 195 | 105 | 18.5 | 17.5 | 20 | 63 x40.5×57 |
| CHA-HT 18 WAYS | 360 | 198 | 105 | 20.4 | 19.4 | 20 | 74×40.5×57 |
| CHA-HT 24WAYS | 270 | 350 | 105 | 14.6 | 13.6 | 10 | 56.5×36.5×56.5 |
| HA IP65 | |
| 4way | ABS without terminal |
| 8 way | ABS without terminal |
| 12 way | ABS without terminal |
| 18 way | ABS without terminal |
| 24 way | ABS without terminal |
| HT IP65 | |
| 5way | ABS without terminal |
| 8 way | ABS without terminal |
| 12 way | ABS without terminal |
| 15 way | ABS without terminal |
| 18 way | ABS without terminal |
| 24 way | ABS without terminal |
| DXHT series surface mounted waterproof distribution box product data summary table | ||||||||
| Serial Number | Model and name | Number of circuits | Number of rows | Overall dimensions (mm) (L*W*H) | Zero and ground busbar configuration | Outer box size (mm) (L*W*H) | Gross weight of the entire box(kg) | Number of boxes (pieces) |
| 1 | DXHT-5 Exposed waterproof distribution box | 5way | Single Row | 129*170*95 | Zero row:3 holes Ground row:3 holes | 555*365*520 | 18.2 | 40 |
| 2 | DXHT-8 Exposed waterproof distribution box | 8way | 183*170*95 | Zero row:5 holes Ground row:5 holes | 520*390*545 | 17.8 | 30 | |
| 3 | DXHT-12 Exposed waterproof distribution box | 12way | 255*200*105 | Zero row:8 holes Ground row:8 holes | 570*425*540 | 18 | 20 | |
| 4 | DXHT-15 Exposed waterproof distribution box | 15way | 309*200*105 | Zero row:8 holes Ground row:8 holes | 625*460*430 | 17.3 | 16 | |
| 5 | DXHT-18 Exposed waterproof distribution box | 18way | 363*200*110 | Zero row:8 holes Ground row:8 holes | 575*383*430 | 12.6 | 10 |
