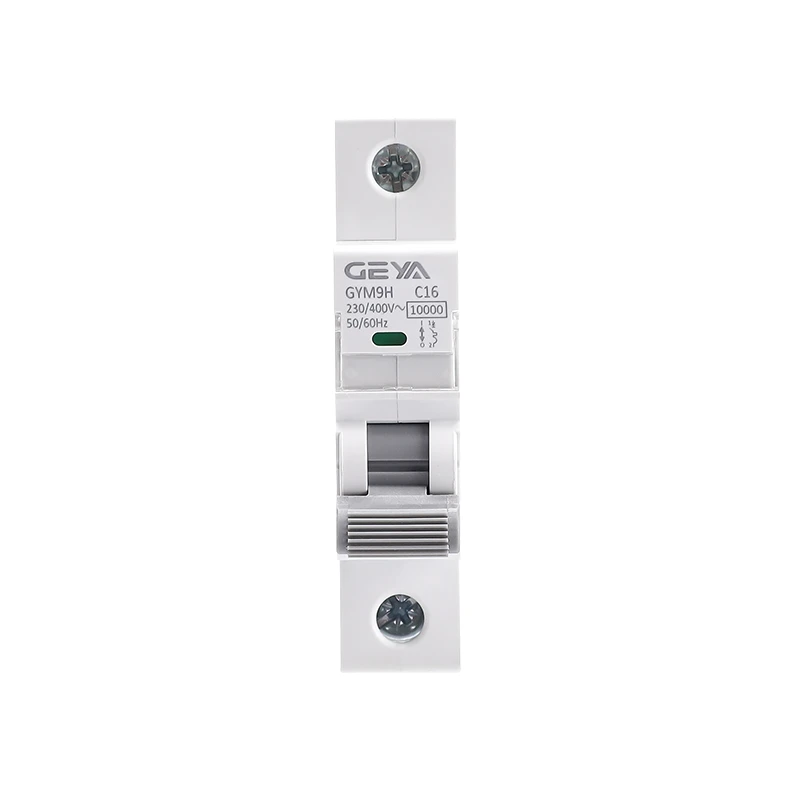

GYM9H-10KA Miniature Circuit Breaker(1~4 Poles)
Ավտոմատներ և պաշտպանիչներ։ GYM9H-10KA Miniature Circuit Breaker(1~4 Poles)։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| GYM9 | H |
| Product model (MCB) | H = 10,000 A breaking capacity (None = 6,000 A) |
| Parameter | GYM9H-10kA (GEYA) | Top-tier brand MCB (reference) |
| Standards | IEC/EN 60898-1, GB/T 10963.1 | IEC/EN 60898-1, IEC/EN 60947-2 |
| Poles | 1P / 2P / 3P / 4P | 1P / 2P / 3P / 4P |
| Rated Current (In) | 1 – 63 A | 1 – 80 A |
| Rated Voltage (Ue) | 230/400V (240/415V) | 230/400V |
| Icn (IEC 60898-1) | 10 kA | 10 kA |
| Tripping Curves | B / C / D | B / C / D (+MA) |
| Mechanical Life | 20,000 ops | 20,000 ops |
| Electrical Life | 10,000 ops | 10,000 ops |
| Uimp | 4 kV | 6 kV |
| Protection Class | IP20 | IP20 |
| Module Width | 18 mm / pole | 18 mm / pole |
| Price Positioning | ★ Highly economical | Premium |
| Dimension | 1P | 2P | 3P | 4P |
| Width (mm) | 18 | 36 | 54 | 72 |
| Height (mm) | 86.5 ± 0.3 (mounted on TH35-7.5 DIN rail) | |||
| Depth (mm) | 80 (overall) / 50 (front protrusion) | |||
| DIN-rail Slot (mm) | 45 |
| Parameter | Specification |
| Model | GYM9H-10kA |
| Product Type | AC Miniature Circuit Breaker (MCB) |
| Standards | IEC/EN 60898-1, GB/T 10963.1 |
| Certifications | CE · CB · SAA |
| Rated Current (In) | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 A |
| Rated Voltage (Ue) | 1P: 240/415V~ ; 230/400V~ |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Breaking Capacity (Icn) | 10 kA (6 kA / 10 kA available) |
| Operating Frequency | 50 / 60 Hz |
| Tripping Curves | B (3–5 × In) · C (5–10 × In) · D (10–14 × In) |
| Number of Poles | 1P / 2P / 3P / 4P |
| Mechanical Life | 20,000 operations |
| Electrical Life | 10,000 operations |
| Tightening Moment | 2.0 N·m |
| Wire Size | 0.5 – 25 mm² |
| Protection Class | IP20 |
| Mounting | TH35-7.5 DIN rail |
| Module Width | 18 mm per pole |
| Connection | Dual busbar connection |
| Indicators | Transparent ID window · Contact position indicator |
| Environmental | RoHS 2.0 compliant |
| Ambient Temp. | -20°C | -10°C | 0°C | 10°C | 20°C | 30°C | 40°C | 50°C | 60°C |
| Correction Factor | 1.25 | 1.20 | 1.15 | 1.10 | 1.05 | 1.00 | 0.95 | 0.90 | 0.85 |
| Curve | Magnetic Trip Range | Typical Application |
| B | 3 – 5 × In | Resistive loads, long cable runs, lighting and socket circuits |
| C | 5 – 10 × In | General-purpose: small motors, HVAC, mixed inductive loads (most common) |
| D | 10 – 14 × In | High inrush loads: transformers, large motors, capacitor banks |
