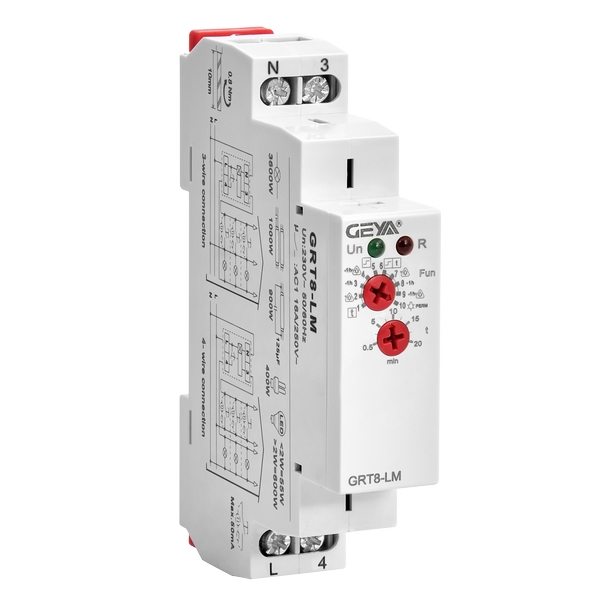

GRT8-LM Staircase Switch Timer Delay Relay
Ռելեներ և կառավարում։ GRT8-LM Staircase Switch Timer Delay Relay։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| GRT8-LM | |
| Function | delay off reacting to contact switching |
| Supply terminals | L-N |
| Voltage range | AC 230V(50-60Hz) |
| Power input | AC max.6VA/1.3W |
| Supply voltage tolerance | -15%;+10% |
| Supply indication | green LED |
| Time ranges | AUTO:0.5-20min ON OFF |
| Time setting | potentionmeter |
| Time deviation | 10%-mechanical setting |
| Repeat accuracy | 0.2%-set value stability |
| Mininum power time | 200ms |
| Glow tubes connetions | Yes(N-3 or L-3) |
| Max.amount of glow lamps | 230V,max.75pcs(Measured with glow lamp0.68mA/230VAC) |
| Temperature coefficient | 0.05%/℃,at=20℃(0.05%°F,at=68°F) |
| Output | 1×SPDT(zero crossing switching) |
| Current rating | 16A/AC1 |
| Switching voltage | 250VAC/24VDC |
| Min.breaking capacity DC | 500mW |
| Output indication | red LED |
| Mechanical life | 1×10000000 |
| Electrical life(AC1) | 1×100000 |
| Reset time | max.200ms |
| Operating temperature | -20℃to+55℃(-4°F to 131°F) |
| Storage temperature | -35℃to+75℃(-22F to 158°F) |
| Mounting/DIN rail | Din rail EN/IEC60715 |
| Protection degree | IP40 for front panel/IP20 terminals |
| Operating position | any |
| Overvoltage cathegory | III. |
| Pollution degree | 2 |
| Max.cable size（mm²） | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) |
| Dimensions | 90×18×64mm |
| Weight | 65g |
| Standards | EN61812-1,IEC60669-2-3,IEC60947-5-1 |
