GEYA

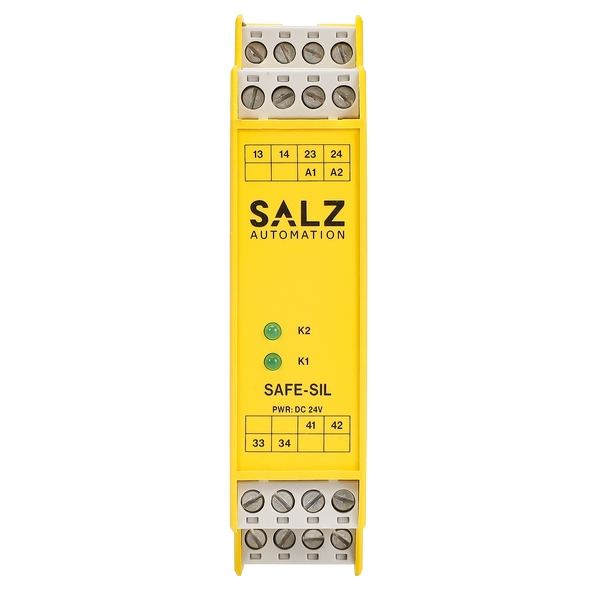

SAFE-SIL Coupling relay and contact expansion
Ռելեներ և կառավարում։ SAFE-SIL Coupling relay and contact expansion։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| In Compliance With | EN 60204-1; DIN EN ISO 13849-1; EN 62061; EN 50156-1 EN 746-2; IEC 61508 Parts 1-2 and 4-7; IEC 61511-1 |
| Rated Impulse Withstand Voltage (control voltage / contacts) | 2.5 kV |
| Dielectric Strength | 6 kV |
| Rated Insulation Voltage | 250 V |
| Degree of Pollution | 2 |
| Overvoltage Category | 3 |
| Nominal Operating Voltage | 24 V DC |
| Input Voltage Range DC | 21.6 … 26.4 V |
| Power Consumption (max.) | 2 W |
| Line resistance at nominal voltage (max.) | 50 Ω |
| Recovery Time | < 500 ms |
| Safe Contacts (non delayed) | 3 NO |
| Auxiliary Contacts (non delayed) | 1 NC |
| Switching Voltage (max.) | 250 V AC |
| Contact Rating AC (resistive load) | 8 A (250 V, 2000 VA) |
| Contact Rating 230 V AC-15 | 3 A |
| Contact Rating DC (resistive load) | 8 A (30 V, 240 W) |
| Contact Rating 24 V DC-13 | 3 A |
| Thermal Current per contact | Max. 15 A total (13-14, 23-24, 33-34) |
| Minimum Contact Load | 5 V, 10 mA |
| External Fuses | 10 A gG (NO); 6 A gG (NC) |
| Switch-on Delay (max.) | < 30 ms |
| Switch-off Delay (max.) | < 60 ms |
| Relay Contact Material | AgSnO2 |
| Relay Contact Life (cycles) | 1 x 10⁷ |
| Wire Width | 0.14 … 2.5 mm² |
| Tightening Moment (min. / max.) | 0.5 Nm / 0.6 Nm |
| Weight (typ.) | 175 g |
| Mounting DIN Rail according EN 60715 | TH35 |
| Degree of Protection | IP20 |
| Ambient Temperature (operating) | -15 °C … +55 °C |
| Ambient Temperature (storage/transport) | -15 °C … +85 °C |
| Operating Altitude (max. above sea level) | < 2000 m |
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114 mm |
