GEYA

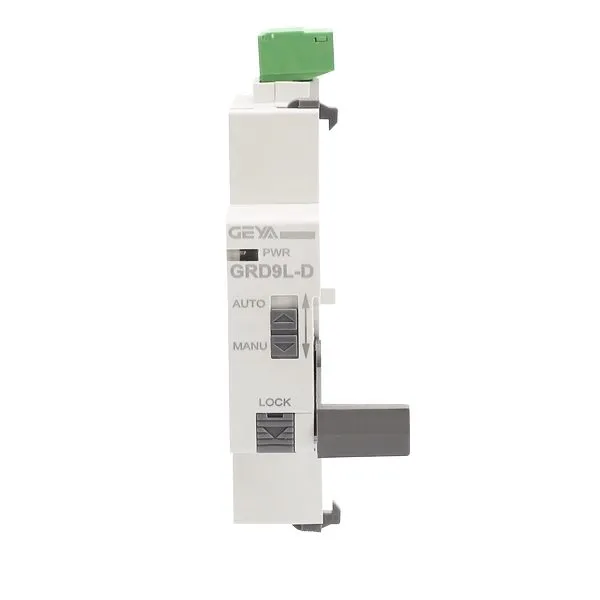

GRD9L-D Switch+Auto Reclosing Module
Ավտոմատներ և պաշտպանիչներ։ GRD9L-D Switch+Auto Reclosing Module։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Type | GRD9L-D |
| Control mode | Controlled by switch |
| Supply terminals | A1-A2 |
| Voltage range | DC12V |
| Power input | DC max.1W(standby) max.20W(action) |
| Voltage range | AC 220V(50-60Hz) |
| Supply voltage tolerance | -10%; + 10% |
| Power input | AC max.1VA(standby) max.20VA(action) |
| Supply voltage tolerance | -10%;+10% |
| Supply indication | red LED |
| Action time | ≤1s |
| Auto reclosing times | 3 |
| Auto reclosing time interval | 10s-60s-300s |
| Reset the closing times | No trip or manual reset within 15 minutes after successful closeing |
| Mechanical life | 10000 |
| Electrical life(AC1) | 4000 |
| Operating temperature | -20℃ to +55℃ (-4℉ to 131℉ ) |
| Storage temperature | -35℃ to +75℃ (-22℉ to 158℉ ) |
| Mounting/DIN rail | Din rail EN / IEC 60715 |
| Protection degree | IP20 |
| Operating position | any |
| Overvoltage cathegory | III. |
| Pollution degree | 2 |
| Max.cable size(mn2） | solid wire max. 1X2.5 or 2X1. 5 / with sleeve max.1 X2.5(AWG 12) |
| Dimensions | 82X18X78mm |
| Weight | 80g |
| Combination with accessories | |
| Auxiliary contact | Yes |
| Alarm contact | Yes |
| Shunt release | Yes |
| Under voltage release | Yes |
