GEYA

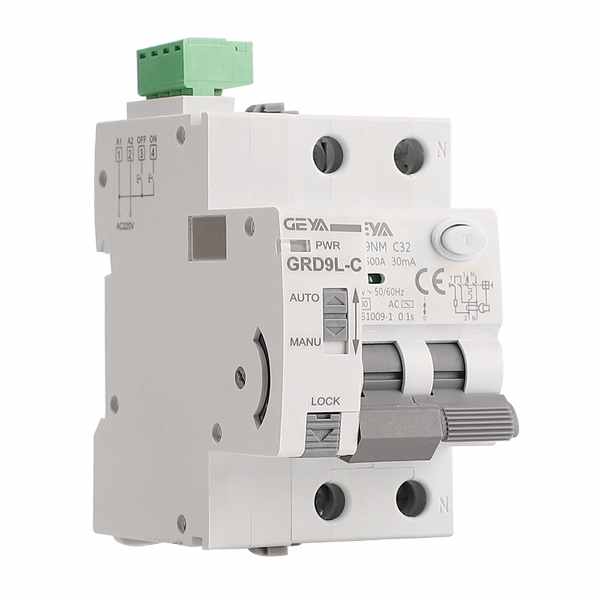

GRD9L-C RCBO Auto Recloser + GYL9
Ավտոմատներ և պաշտպանիչներ։ GRD9L-C RCBO Auto Recloser + GYL9։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| GRD9L-C | GRD9L-D | |
| Control mode | Controlled by switch | Controlled by switch+Auto Reclosing |
| Supply terminals | A1-A2 | |
| Voltage range | DC12V,DC24V~48V | |
| Power input | DC max.1W(standby) max.20W(action) | |
| Voltage range | AC 220V(50-60Hz) | |
| Supply voltage tolerance | -10%;+10% | |
| Power input | AC max.1VA(standby) max.20VA(action) | |
| Supply voltage tolerance | -10%;+10% | |
| Supply indication | red LED | |
| Action time | ≤1s | |
| Auto reclosing times | —— | 3 |
| Auto reclosing time interval | —— | 10s-60s-300s |
| Reset the closing times | —— | No trip or manualreset within 15 minutes after successful closing |
| Mechanical life | 10000 | |
| Electrical life(AC1) | 4000 | |
| Operating temperature | -20℃ to +55℃ （-4℉ to 3℉） | |
| Storage temperature | -35℃ to +75℃(-22℉ to 158℉) | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protection degree | IP20 | |
| Operating position | any | |
| Overvoltage cathegory | III | |
| Pollution degree | 2 | |
| Max.cable size(mm²) | solid wire max.1×2.5or2×1.5/with sleeve max.1×2.5(AWG 12) | |
| Dimensions | 82×18×78mm | |
| Weight | 80g | |
| Combination with accessories | ||
| Auxillary contact | Yes | |
| Alarm contact | Yes | |
| Shunt release | Yes |
