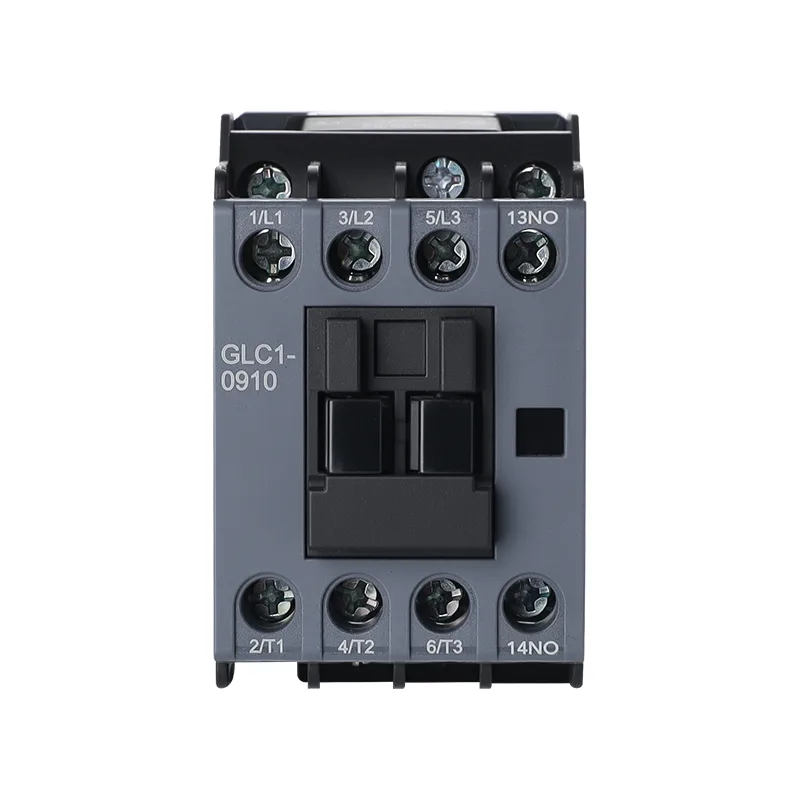

GLC1 Industrial AC Contactor B Class
Կոնտակտորներ և փոխարկիչներ։ GLC1 Industrial AC Contactor B Class։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Կոնտակտորներ և փոխարկիչներ |
Տեխնիկական բնութագրեր
| Item | Data |
| Product range | 9A–95A, 10 current ratings |
| Number of poles | 3P main circuit + 1 auxiliary contact |
| Standards | GB/T 14048.1 / IEC 60947-1; GB/T 14048.4 / IEC 60947-4-1 |
| Certification | CCC / CE |
| Accessories | FG1 dust cover, F1 top auxiliary contact, FC1 side auxiliary contact, FJ1 mechanical interlock, FY1 air delay head, FR1 surge suppressor |
| Installation position | Vertical; inclination ≤22.5° in any direction; installation class III |
| Pollution class | Class 3 |
| Ambient temperature | -5°C to +40°C; 24h average ≤+35°C |
| Storage temperature | -25°C to +55°C; up to +70°C for short periods (24h) |
| Humidity | ≤50% at +40°C; up to 90% at +20°C; protect against occasional condensation |
| Altitude | ≤2000m |
| Protection grade | IP20 |
| B grade construction | Grey housing; 40% silver contact alloy; steel contact carrier on frames 09–18 |
| Contactor Model | GLC1-09 | GLC1-12 | GLC1-18 | GLC1-25 | GLC1-32 | GLC1-40 | GLC1-50 | GLC1-65 | GLC1-80 | GLC1-95 |
| Rated insulation voltage Ui (V) | 690 | |||||||||
| Conventional thermal current Ith (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 100 | 100 |
| Ie 380V AC-3 (A) | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| Ie 380V AC-4 (A) | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 |
| Ie 660V AC-3 (A) | 6.6 | 8.9 | 10.6 | 18 | 21 | 34 | 39 | 42 | 49 | 49 |
| Ie 660V AC-4 (A) | 1.5 | 2 | 3.8 | 4.4 | 7.5 | 9 | 12 | 14 | 17.3 | 21.3 |
| Pe 380V AC-3 (kW) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| Pe 380V AC-4 (kW) | 1.5 | 2.2 | 3 | 4 | 5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Pe 660V AC-3 (kW) | 5.5 | 7.5 | 9 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 |
| Pe 660V AC-4 (kW) | 1.1 | 1.5 | 1.7 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| Item | 09 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| Mechanical durability (×10,000 ops) | 1200 | 1000 | 900 | 650 | ||||||
| Electrical durability AC-3 (×10,000 ops) | 110 | 90 | 65 | |||||||
| Electrical durability AC-4 (×10,000 ops) | 22 | 17 | 11 | |||||||
| Operating frequency AC-3 (ops/hour) | 1200 | 600 | ||||||||
| Operating frequency AC-4 (ops/hour) | 300 |
| Conductor | 09 / 12 | 18 | 25 / 32 | 40 / 50 | 65 | 80 / 95 |
| Flexible wire, without terminal, 1 conductor | 1–4 | 1–6 | 1.5–10 | 2.5–10 | 2.5–25 | 4–50 |
| Flexible wire, without terminal, 2 conductors | 1–4 | 1–6 | 1.5–6 | 2.5–10 | 2.5–16 | 2.5–35 |
| Flexible wire, with terminal, 1 conductor | 1–2.5 | 1–4 | 1–4 | 2.5–16 | 2.5–16 | 4–50 |
| Flexible wire, with terminal, 2 conductors | 1–2.5 | 1–4 | 1–4 | 2.5–10 | 2.5–16 | 2.5–25 |
| Rigid wire, 1 conductor | 1–4 | 1–6 | 1.5–6 | 2.5–10 | 2.5–25 | 4–50 |
| Rigid wire, without terminal, 2 conductors | 1–4 | 1–6 | 1.5–6 | 2.5–10 | — | — |
| Item | 09 / 12 | 18 | 25 / 32 | 40 / 50 | 65 / 80 / 95 |
| Rated control voltage Us, AC 50/60Hz | 24V / 36V / 110V / 220V / 380V | ||||
| Rated control voltage Us, DC | 24V / 110V / 220V | ||||
| Operating range | 85%–110% Us | ||||
| Drop-out range | AC 20%–70% Us; DC 10%–70% Us | ||||
| Coil power, actuation (VA) | 70 | 110 | 200 | ||
| Coil power, holding (VA) | <9 | <9.5 | <14 | <36.6 | |
| Heat dissipation (W) | 1.8–2.7 | 3–4 | 6–10 |
| Coil Voltage Us (V) | 24 | 36 | 110 | 220 | 380 |
| AC 50/60Hz code | B5 | C5 | F5 | M5 | Q5 |
| DC code | BD | — | FD | MD | — |
| Item | 09 – 32 | 40 – 95 |
| Contact specification | 10 / 01 | 11 |
| Conventional thermal current Ith | 10A | |
| Rated control circuit voltage Ue | AC 380V; DC 220V | |
| Rated control capacity | AC-15: 360VA; DC-13: 33W | |
| Certification | CCC / CE |
