GEYA

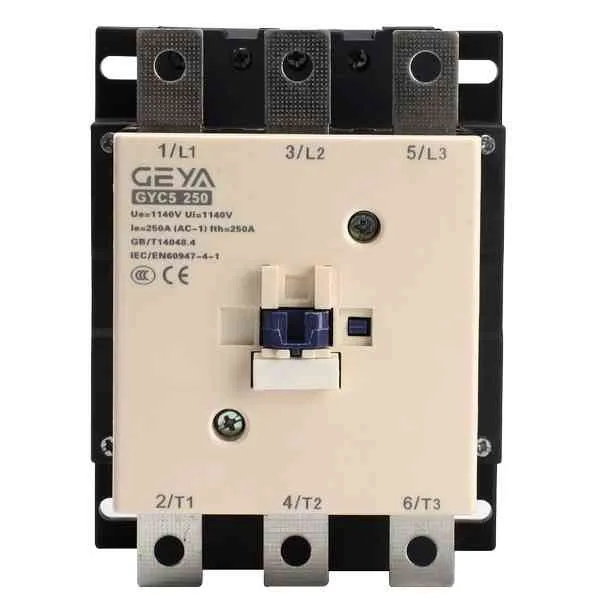

GYC5 High Ampere 2 Pole/3 Pole/4 Pole AC Contactor
Կոնտակտորներ և փոխարկիչներ։ GYC5 High Ampere 2 Pole/3 Pole/4 Pole AC Contactor։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Կոնտակտորներ և փոխարկիչներ |
Տեխնիկական բնութագրեր
| Contactor | GYC5 | GYC6 | GYC7 | |
| Specifications | 1000、1250、1450、1700、2100、2600、3200 | 750、1000、1500、1800 | 115、150、170 | |
| Rated operationgl currentA | AC3 | — | 750-1800 | — |
| AC1 | 1000-3200 | 800-2750 | AC-6b 90-130 | |
| Conventional thermal current thA | 1000-3200 | 800-2750 | 250 | |
| Maximum rated operational voltage V | 1000 | 1000 | 660 | |
| Rated operational power AC3KW | 220V | 220-500 | ||
| 400V | 400-900 | |||
| 500V | 500-900 | |||
| 690V | 560-900 | |||
| 1000V | 530-750 | |||
| Maximum operating power AClKW | 220V | 350-1090 | 300-1000 | Capacity of capacitor Kvar |
| 400V | 600-1890 | 330-1600 | 60-90 | |
| 500V | 740-2350 | 550-2100 | ||
| 690V | 980-3100 | 800-2700 | ||
| 1000V | 1490-4690 | 1100-4200 | ||
| Number of poles | 3 | 1-4 | 3 | |
| Applications | For category AC1. For slightly inductive loads or slightly inductive distribution circuits, eg. Standard electric stove, distribution circuits for workshop power distribution in rural area and distribution for wind power distribution. | Standard products for high capacity AC3, ACl, AC4 loads, specially for large equipment in hoisting, construction and metallurgy industry. | For making and breaking of capacitor. For making and breaking of reactive power compensation devices and appliances, to improve the power factor. |
