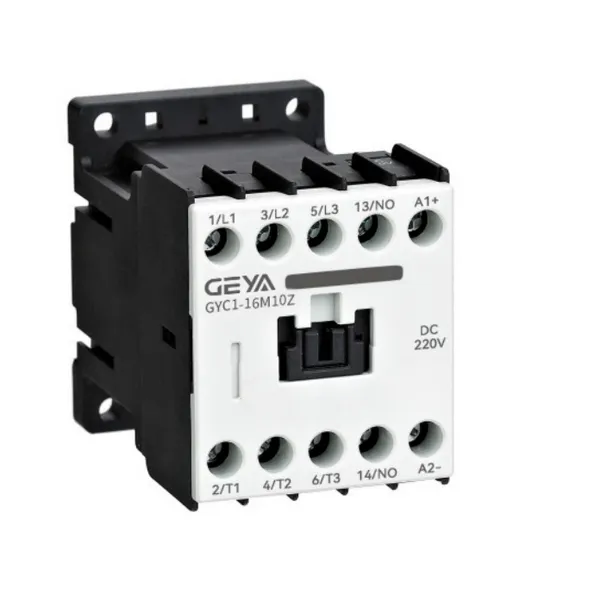

| Technical Parameter compare | GEYA GYC1-06M/GYC1-09M/GYC1-12M/GYC1-16M | VS | SchneiderTeSys SK control relay, 1 NO and 1 NC, 600 V, 120 VAC 50/60 Hz coil |
| control circuit voltage | AC:24V/36V/48V/110V/125V/220V/ 380V/400V/415V DC:12V/24V/36V/48V/110V/127V/ 220V/240 | | 120 V AC 50/60 Hz |
| Associated fuse rating | 10 A gL VDE 0660 10 A gL IEC 60947 | | |
| Pole contact composition | 10: 1NO 01:1NC 03: Main contact 3NC 04: Main contact 4NO 08: Main contact 2NO+2NC | | 1 NO + 1 NC |
| Connections – terminals | | | screw clamp terminals 1 0.00…0.01 in2 (1.5…6 mm2)solid screw clamp terminals 2 0.00…0.01 in2 (1.5…4 mm2)solid screw clamp teminals 1 0.00…0.01 in2 (0.5…6 mm2)flexible without cable end screw clamp terminals 1 0.00…0.01 in2 (0.35…6 mm2)flexible with cable end screw clamp terminals 2 0.00…0.00 in2 (0.35…1.5 mm2)flexible with cable end screw clamp terminals 2 0.00…0.00 in2 (0.35…2.5 mm2)flexible without cable end |
| Ambient air temperature for operation | -40…70℃ | | -4…122℉(-20…50℃) |
| Ambient Air Temperature for Storage | -50…80℃ | | -58…158℉(-50…70℃) |
| Heat dissipation | 1.3W | | 1.4 W |
| Utilisation category | DC-13 AC-15 | | DC-13 AC-15 |
