GEYA

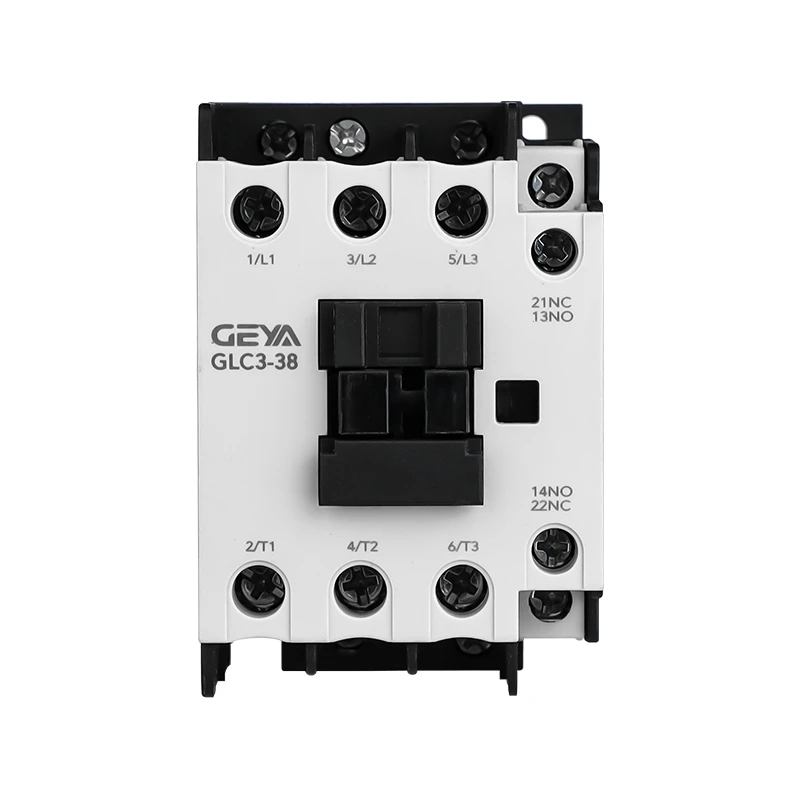

GLC3 Series AC Contactor
Կոնտակտորներ և փոխարկիչներ։ GLC3 Series AC Contactor։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Կոնտակտորներ և փոխարկիչներ |
Տեխնիկական բնութագրեր
| Contactor Model | 06 | 09 | 12 | 18 | 25 | 32 | 38 | 40 | 50 | 65 | 80 | 95 |
| Rated Operating Current (Ie) AC-3 (380/400V) [A] | 6 | 9 | 12 | 18 | 25 | 32 | 38 | 40 | 50 | 65 | 80 | 95 |
| Rated Operating Current (Ie) AC-3 (660/690V) [A] | 3.8 | 6.6 | 8.9 | 12 | 18 | 22 | 22 | 34 | 39 | 42 | 49 | 49 |
| Rated Operating Power (Pe) AC-3 (380/400V) [kW] | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 | 45 |
| Rated Operating Power (Pe) AC-3 (660/690V) [kW] | 4 | 4 | 5.5 | 7.5 | 11 | 15 | 15 | 30 | 33 | 37 | 45 | 45 |
| Rated Operating Power (Pe) AC-4 (380/400V) [kW] | 1.1 | 1.5 | 2.2 | 3.3 | 4 | 5.4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Poles | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Suitable for Manual Overload Relay (A) | 0.1-10 | 0.1-10 | 0.1-13 | 0.1-18 | 0.1-24 | 0.1-32 | 0.1-32 | 0.1-40 | 0.1-50 | 0.1-65 | 0.1-104 | 0.1-104 |
| Rated Insulation Voltage (Ui) | 690V |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Rated Control Circuit Voltage (Us) | 24V, 36V, 48V, 110V, 220V, 230V, 380V, 400V, 415V, 660V, 690V (50/60Hz) |
| Pollution Class | 3 |
| Standards | IEC 60947-1, IEC 60947-4-1 |
| Certification | CE, CB |
| Product Protection Grade | IP20 |
| Ambient Temperature | Storage: -60°C to +80°C Work: -5°C to +40°C |
| Maximum Working Altitude | 2000m (No reduction capacity) |
| Mechanical Life | 1200 (Ten thousand times) |
| Electrical Life (AC-3) | 110 – 65 (Ten thousand times, varies by model) |
| Item | Parameters |
| Coil Operating Voltage | Operation: 85% – 110% Us Drop-out: AC 20% – 70% Us |
| Coil Power (Start) | 70VA – 220VA (Varies by model) |
| Coil Power (Holding) | <9VA – <36.6VA (Varies by model) |
| Actuation Time | Close: 12-26ms Open: 5-20ms |
| Auxiliary Contact Configuration | 1NO + 1NC |
