| Parameter | Catalogue value |

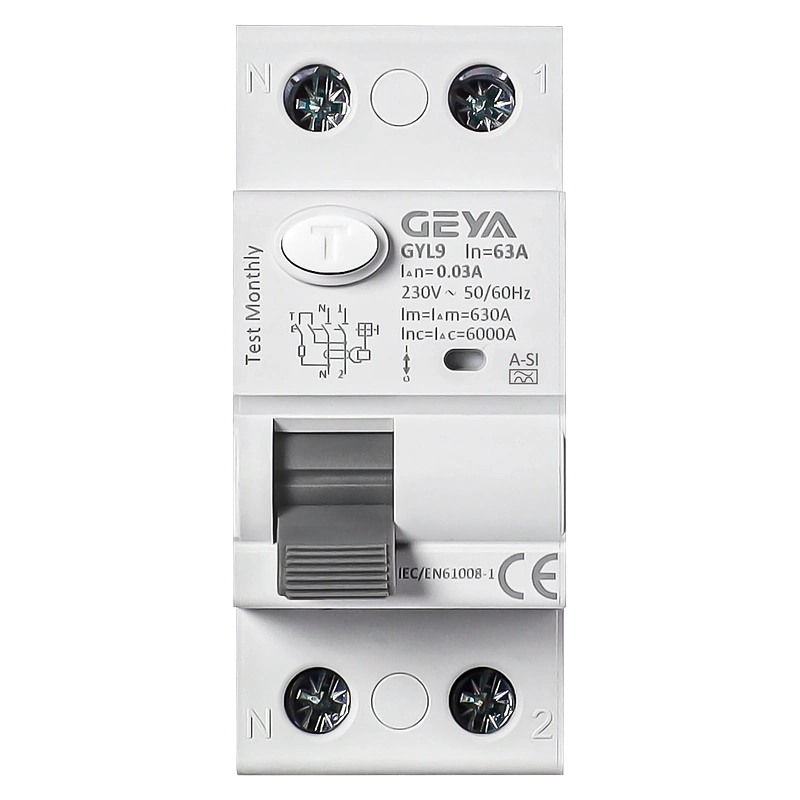

| Product type | Type A-Si RCCB |
| Residual-current action type | A-Si with Type Si operating-time bands |
| Residual-current detection | Sinusoidal AC and pulsating DC |
| Reference standards | IEC/EN 61008-1; GB/T 16916.1 |
| Rated voltage (Un) | 230/240 V; 400/415 V |
| Rated current (In) | 16, 20, 25, 32, 40, 50, 63, 80, 100 A |
| Rated residual operating current (IΔn) | 30, 100, 300 mA |
| Poles | 1P+N; 3P+N |
| Frequency | 50/60 Hz |
| Rated insulation voltage (Ui) | 500 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated conditional short-circuit current (Inc) | 6 kA; 10 kA |
| Rated conditional residual short-circuit current (IΔc) | 6 kA; 10 kA |
| Rated making and breaking capacity (Im) | 500 A for In ≤ 50 A; 10 × In for In = 63 A |
| Rated residual making and breaking capacity (IΔm) | 500 A for In ≤ 50 A; 10 × In for In = 63 A |
