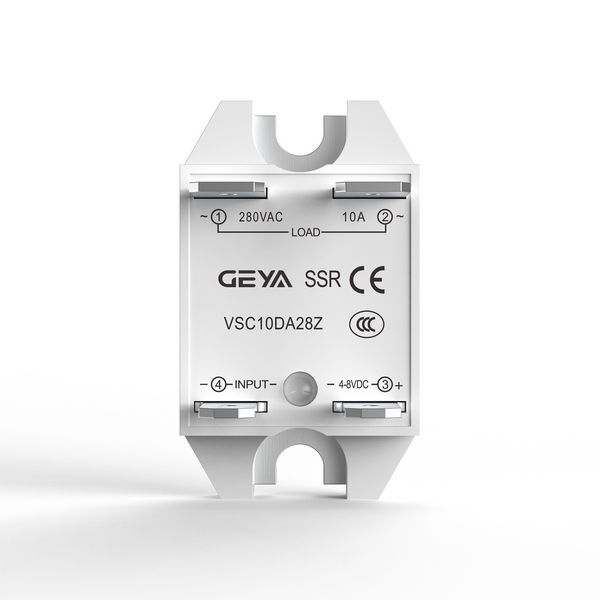

VSC Series Single Phase Solid State Relays
Ռելեներ և կառավարում։ VSC Series Single Phase Solid State Relays։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Product Selection | ||||
| Control voltage | Dutput voltage | Rated operational current | ||
| 10Amps | 15Amps | 25Amps | ||
| 4-8VDC | 280VAC”Z” | VSC10D05AZ | VSC15D05AZ | VSC25D05AZ |
| 4-8VDC | 280VAC”R” | VSC10D05AR | VSC15D05AR | VSC25D05AR |
| 10-14VDC | 280VAC”Z” | VSC10D12AZ | VSC15D12AZ | VSC25D12AZ |
| 10-14VDC | 280VAC”R” | VSC10D12AR | VSC15D12AR | VSC25D12AR |
| 21-27VDC | 280VAC”Z” | VSC10D24AZ | VSC15D24AZ | VSC25D24AZ |
| 21-27VDC | 280VAC”R” | VSC10D24AR | VSC15D24AR | VSC25D24AR |
| Input Specifications | |||
| Description | D05 | D12 | D24 |
| Control Voltage Range | 4-8VDC | 10-14VDC | 21-27VDC |
| Minimum Turn-On Voltage | 4VDC | 10DC | 21VDC |
| Must Turn-Off Voltage | 1VDC | 1VDC | 1VDC |
| Minimum Input Current | 6mA | 10mA | 8mA |
| Maximum Input Current | 21mA | 17.5mA | 19mA |
| Maximum Turn-On Time [msec] | 1/2Cycle | 1/2Cycle | 1/2Cycle |
| Maximum Turn-Off Time [msec] | 1/2Cycle | 1/2Cycle | 1/2Cycle |
| Output Specifications | |||
| Description | 10Amps | 15Amps | 25Amps |
| Operating voltage [47-63Hz][Vrms] | 24-280 | 24-280 | 24-280 |
| Maximum load current [Adc] | 10A | 15A | 25A |
| Minimum load current [mArms] | 150 | 150 | 250 |
| Transient overvoltage [Vpk] | 600 | 600 | 600 |
| Maximum surge current [50/60Hz,1Cycle][Apk] | 145/150 | 185/220 | 260/280 |
| Maximum l?t for fusing [50/60Hz,1/2Cycle][A?sce] | 100/95 | 165/160 | 338/326 |
| Minimum off-state dv/dt aMaximum rated voltage [V/μsec | 500 | 500 | 500 |
| Maximum off-state leakage current @rated voltage[mArms] | 0.1 | 0.1 | 0.1 |
| Thermal resistance junction to case [Rjc][°C/W] | 3.0 | 2.2 | 0.9 |
| Maximum on-state voltage drop @rated current [Volts] | 1.3 | 1.3 | 1.3 |
| Minimum power factor [at maximum load] | 0.7 | 0.7 | 0.7 |
| General Specifications | |
| Description | Parameters |
| Dielectric Strength,Input to Output [50/60Hz] | 2500 Vrms |
| Dielectric Strength,Output to Baseplate [50/60Hz] | 2500 Vrms |
| Maximum Capacitance,Input/Output | 8 pF |
| Ambient Operating Temperature Range | -30 to 80℃ |
| Ambient Storage Temperature Range | -30 to 125 ℃ |
| Weight [typical] | 16g |
| Terminals | 3/16″×0.032″input,1/4″×0.032″output QC |
| SSR Mounting Screw Torque Range | 9.0-10.0 in-Ib[1.0-1.13 Nm] |
| LED Input Status Indicator | Red |
| Humidity per IEC60068-2-78 | 93%non-condensing |
