GEYA

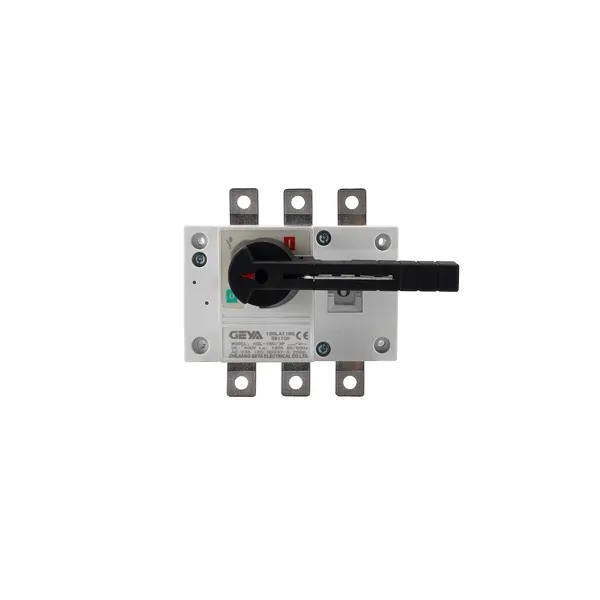

HGL Series Transfer Isolation Switch
Կոնտակտորներ և փոխարկիչներ։ HGL Series Transfer Isolation Switch։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Կոնտակտորներ և փոխարկիչներ |
Տեխնիկական բնութագրեր
| Rated Thermal Current Ith (A) | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2500 | 3200 | ||
| Rated Insulation Voltage UI | 800V | 1000V | |||||||||
| Dielectric Strength | 3000V | 3500V | |||||||||
| Rated Impulse Withstand Voltage Uimp | 8KV | 12KV | |||||||||
| Rated Operational Voltage Ue | AC400 660V | ||||||||||
| Rated Frequency | 50Hz | ||||||||||
| Utilization Category | AC-21 22 23 | ||||||||||
| Rated OperationalCurrent le(A) | AC 400V | AC-21 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2500 | 3200 |
| AC-22 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2500 | 3200 | ||
| AC-23 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 2000 | 2500 | ||
| AC 660V | AC-21 | 160 | 250 | 400 | 630 | 1000 | 1250 | 1600 | 2500 | 3200 | |
| AC-22 | 100 | 200 | 315 | 400 | 630 | 630 | 800 | 1000 | 1250 | ||
| AC-23 | 63 | 125 | 200 | 250 | 400 | 400 | 500 | / | / | ||
| Rated Making Capacity(A Rms) | 10le | ||||||||||
| Rated Breaking Capacity(A Rms) | 8le | ||||||||||
| Rated Short-Circuit Making Capacity Icm(kA Rms) | 12 | 17 | 30 | 40 | 70 | 100 | |||||
| 1S Short-Time Withstand Current Icw(kA Rms) | 10 | 12 | 20 | 25 | 50 | 70 | |||||
| Mechanical Life(Times) | 5000 | 3000 | 2000 | 1000 | |||||||
| Electrical Life(Times) | 1000 | 600 | 300 | / | |||||||
| Operating Torque (N ·m) | 6.5 | 10 | 15 | 27 | 50 | ||||||
| Weight kg (excluding handle) | 3 Pole | 1.1 | 1.7 | 4.0 | 4.6 | 11.1 | 13.1 | 13.9 | 27.6 | 28.6 | |
| 4 Pole | 1.3 | 2.2 | 5.0 | 5.8 | 14.7 | 17.4 | 18.3 | 36.5 | 37.8 | ||
| The main parameters of auxiliary switches | 50Hz AC-15230V 3A |
