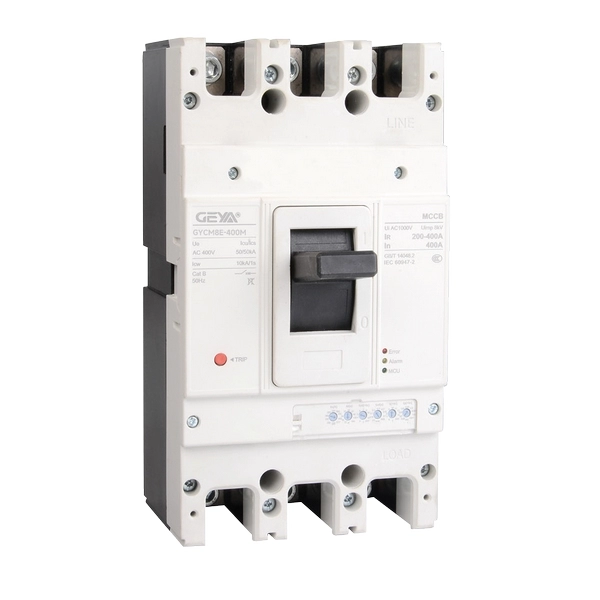

GYCM8E Series Electronic Circuit Breaker
Ավտոմատներ և պաշտպանիչներ։ GYCM8E Series Electronic Circuit Breaker։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| GYCM8E- | 160 | M | P1 | / | ||
| Product code | Shell level current Optional code: | Optional code for short-circuit breaking capacity | Optional operation code: | |||
| GYCM8RT series electronic plastic case circuit breaker | 160 250 400 630 800 1250 2000 | C:Basic type S:Standard type M:Higher breaking type H:High breaking typeNote:Conventional production is M-type;400, 630,8001250 and 2000 only have M and H types | No code:direct operation P1:DC3 electric operation (market standard) P2:DC6 series electric operation (as shown in the picture) ZY1:Rotating handle(manual center type -circular handle)-(Preferred for regular factory use) ZF1:Rotating handle(manual center type -square handle) ZY2:Rotating handle(hand operated eccentric circular handle) Zf2:Rotating handle(manual eccentric square handle) Z3:Rotating handle(hand operated integrated) (Only available in 160 and 250) Note:The electric operating voltag | |||
| 4 | 3 | 0 | 2 | B | G | / |
| Pole number: | Knob optional code: | Internal accessory optional code | Usage code: | Quadrupole product optional code | Additional function code: | |
| 3:3pole 4:4pole | 3:3 knobs 6:6 knobs | No code;for distribution protectior 2:For motor protection Note:Magnetic protection 14In does not operate, 20In operates 700A-2000A without motor protection type | A:The N-pole is not equipped with an overcurrent release,and the N-pole is always connected B:The N-pole is not equipped with an overcurrent release,and the N-pole is opened and closed together with the other three poles C:Install an overcurrent release on the N- pole,and the N-pole will be combined and disconnected with the other three poles D:Install an overcurrent release on the N- pole and ensure that the N-pole is always connected | No code:regular product G:With grounding protection I:Overload alarm does not trip R:Thermal magnetic protection function V:Low temperature upgrade 40K VI:Low temperature upgrade 50K VIl:Low temperature upgrade 60K | ||
| P | Z | In=100A | ||||
| Optional installation and wiring method code: | Protective accessory code: | Rated current: | ||||
| No code:Board front wiring(fixed type) P:Connection bar(extended copper bar) Z1:Rear board wiring (fixed type) Z2Q:Plug in front wiring (split type) Z2H:Plug in board rear wiring (split type) Z3Q:Plug in front wiring (integrated) Z3H:Plug in board rear wiring (integrated) DF:withdrawable front panel wiring DR:Pull out board rear wiring Note:160,250 non withdrawable;1250 and 2000 only have connecting bars | No code:regular product Z:Terminal cover Note:The terminal cover only has three poles;400, 630 points narrow length wide length,default to wide length;2000 Not available at the moment | 160:32A(adjustable from 0.4 to 1.0 In); 63A(adjustable from 0.4 to 1.0 In) 100A(adjustable from 0.4 to 1.0 In); 125A(adjustable from 0.4 to 1.0 In); 160A(adjustable from 0.4 to 1.0 In) 250 #:250A(0.4-1.0In adjustable) 400#:400A(adjustable from 0.4 to 1.0 In) 630#:630A(0.4-1.0 In adjustable) 400#:400A(adjustable from 0.4 to 1.0 In); 800#:630A(adjustable from 0.4 to 1.0 In); 800A(adjustable from 0.4 to 1.0In); 1250#:1000A(adjustable from 0.4 to 1.0 In); 1250A(adjustable from 0.4 to 1.0 In); 2000#: |
| External attachments | |||||||||||||||
| Molded case circuit breaker | GYCM8E- 160 | GYCM8E- 250 | GYCM8E- 400 | GYCM8E- 630 | GYCM8E- 800 | GYCM8E- 1250 | GYCM8E- 2000 | ||||||||
| Number of poles | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | |
| GYCM8LY External Accessories | Electric operation | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| Hand operation | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| Expansion copper bar | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| Mechanical interlocking | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | |
| Insert type front split type | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | |
| Insert type front integrated panel | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | |
| Insert type front fixed type | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | |
| nsert type rear split type | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | |
| nsert type rear integrated board | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | |
| Insert type rear fixed type | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | / | / | / | / | |
| After the pull-out board | / | / | / | / | √ | / | √ | / | √ | / | / | / | / | / |
| Main performance indicators | |||||||||||
| Molded case circuit breaker | GYCM8E-160 | GYCM8E-250 | GYCM8E-400 | GYCM8E-630 | |||||||
| Shell level current In: | 32A(12A~32A Adjustable) ,100A(40A~100A Adjustable), 160A(63A~160A Adjustable) | 250A (100A-250AAdjustable) | 400A (160A-400AAdjustable) (200A-400AAdjustable) | 630A(250A-630AAdjustable), (400A-630AAdjustable) | |||||||
| Short circuit breaking capacity code: | S | M | H | S | M | H | M | H | M | H | |
| Number of poles: | 3P;4P | 3P;4P | 3P;4P | 3P;4P | |||||||
| Rated working voltage Ue (V),AC: | AC400V;AC690V | AC400V;AC690V | AC400V;AC690V | AC400V;AC690V | |||||||
| Rated insulation voltage Ui(V): | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | |
| Rated impulse withstand voltage Uimp (kV): | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | |
| Rated short- circuit breaking capacity lcs(kA):Rated ultimat short-circuit breaking capacity lcu(kA): | AC400V | 18kA | 35kA | 65kA | 18kA | 35kA | 65kA | 35kA | 70kA | 35kA | 70kA |
| AC690V | 4kA | 8kA | 8kA | 8kA | 8kA | 8kA | 8kA | 8kA | 8kA | 8kA | |
| AC400V | 25kA | 50kA | 65kA | 25kA | 50kA | 65kA | 50kA | 70kA | 50kA | 70kA | |
| AC690V | 8kA | 8kA | 8kA | 4kA | 8kA | 8kA | 8kA | 8kA | 8kA | 8kA | |
| Rated short-term withstand current Icw(kA) | 一 | 一 | 一 | 一 | 一 | 一 | 10kA/1s | 10kA/1s | 10kA/1s | 10kA/1s |
| Applicable frequency: | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Selective categories: | Class A Class A | Class A Class B | Class B Class B | Class B | Class B | Class B | Class B |
| Type of overcurrent release: | Electronic |
| GYCM8E External dimensions (mm)width (W)*Length (L)*height(H) | Shell level current | GYCM8E-160 | GYCM8E-250 | GYCM8E-400 | GYCM8E-630 | ||||
| poles Number | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | |
| wide | 90 | 120 | 105 | 140 | 140 | 184 | 140 | 184 | |
| length | 155 | 155 | 165 | 165 | 257 | 257 | 257 | 257 | |
| height/Face cover | 68/82 | 68/82 | 68/88 | 68/88 | 103 | 103 | 103 | 103 | |
| height/Handle | 94/108 | 94/108 | 96/116 | 96/116 | 152 | 152 | 152 | 152 |
| Molded case circuit breaker | GYCM8E-800 | GYCM8E-1250 | GYCM8E-2000 | |||
| Shell level current In: | 630A(400A-630A Adjustable), 800A (500A-800A Adjustable) | 1000A(630A-1000A Adjustable), 1250A(850A-1250A Adjustable) | 1250A(500A-1250A Adjustable), 1600A(630A-1600A Adjustable), 2000A(800A-2000A Adjustable) | |||
| Short circuit breaking capacity code: | M | H | M | H | M | H |
| Number of poles: | 3P;4P | 3P;4P | 3P;4P | |||
| Rated workinc voltage Ue (V).AC | AC400V,AC690V | AC400V,AC690V | AC400V,AC690V |
| Rated insulation voltage Ui (V): | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V |
| Rated impulse withstand voltage Uimp (kV) | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV |
| Rated short-circuit breaking capacity lcs (kA): |
| AC400V | 50kA | 50kA | 50kA | 50kA | 50kA | 85kA |
| AC690V | 10kA | 10kA | 10kA | 10kA | 20kA | 20kA |
| Rated ultimate short-circuit breaking capacity cu (kA): |
| AC400V | 65kA | 65kA | 65kA | 65kA | 50kA | 100kA |
| AC690V | 20kA | 20kA | 20kA | 20kA | 20kA | 20kA |
| Rated short-term withstand current Icw (kA) | 20kA/1s | 20kA/1s | 20kA/1s | 20kA/1s | 20kA/1s | 20kA/1s |
| Applicable frequency: | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Selective categories: | Class B |
| Type of overcurrent release: | Electronic |
| GYCM8E External dimensions (mm)width (W)*Length (L)*height(H) | ||||||
| Shell level current | GYCM8E-800 | GYCM8E-1250 | GYCM8E-2000 | |||
| poles Number | 3P | 4P | 3P | 4P | 3P | 4P |
| wide | 210 | 280 | 210 | 280 | 210 | 280 |
| length | 275.5 | 275.5 | 275.5 | 275.5 | 340 | 340 |
| height/Face cover | 103 | 103 | 103 | 103 | 141 | 141 |
| height/Handle | 152 | 152 | 152 | 152 | 244 | 244 |
| Note:The height from the bottom of the base to the(cover/handle) |
