GEYA

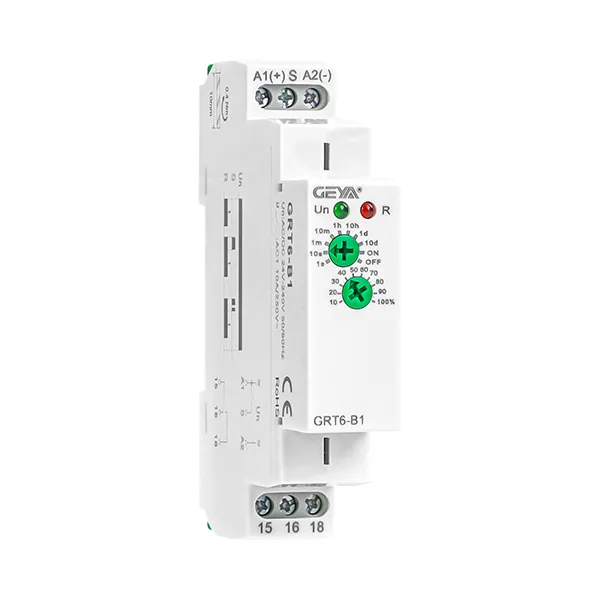

GRT6-B Single-Function Time Relay
Ռելեներ և կառավարում։ GRT6-B Single-Function Time Relay։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Technical parameters | GRT6-A1/B1 | GRT6-A2/B2 | GRT6-At/Bt |
| Function | A230 S240 | A:delay ON;B:delay OFF | |
| Supply terminals | A1-A2 | ||
| Voltage range | AC/DC24-240V(50-60Hz) | ||
| Burden | AC 0.09-3VA/DC 0.05-1.7W | ||
| Voltage range | AC 230V(50-60Hz) | ||
| Power input | AC max.6VA/1.3W | AC max.6VA/1.9W | |
| Supply voltage tolerance | -15%;+10% | ||
| Supply indication | green LED | ||
| Time ranges | 0.1s-10days,ON,OFF | ||
| Time setting | potentionmeter | ||
| Time deviation | 10%-mechanical setting | ||
| Repeat accuracy | 0.2%-setvalue stability | ||
| Temperature coecient | 0.05%/℃,at=20℃(0.05%F,at=68F) | ||
| Output | 1×SPDT | 2×SPDT | 1xSPDT(del)+1xSPDT(ins) |
| Currentrating | 10A/AC1 | ||
| Switching voltage | 250VAC/24VDC | ||
| Min.breaking capacity DC | 500mW | ||
| Output indication | red LED | ||
| Mechanical life | 1×107 | ||
| Electrical life(AC1) | 1×105 | ||
| Reset time | max.200ms | ||
| Operating temperature | -20℃ to +55℃ (-4F to 131F) | ||
| Storage temperature | -35℃ to +75℃(-22F to 158F) | ||
| Mounting/DIN rail | Din rail EN/IEC 60715 | ||
| Protection degree | IP40 for front panel/IP20 terminals | ||
| Operating position | any | ||
| Overvoltage cathegory | II. | ||
| Pollution degree | 2 | ||
| Max.cable size(mm) | solid wire max.1×2.5or2×1.5/with sleeve max.1×2.5(AWG 12) | ||
| Tightening torque | 0.4Nm | ||
| Dimensions | 90×18×64mm | ||
| Weight | S240-61g,A230-61g S240-81g,A230-80g | ||
| Standards | EN 61812-1.IEC60947-5-1 |
