GEYA

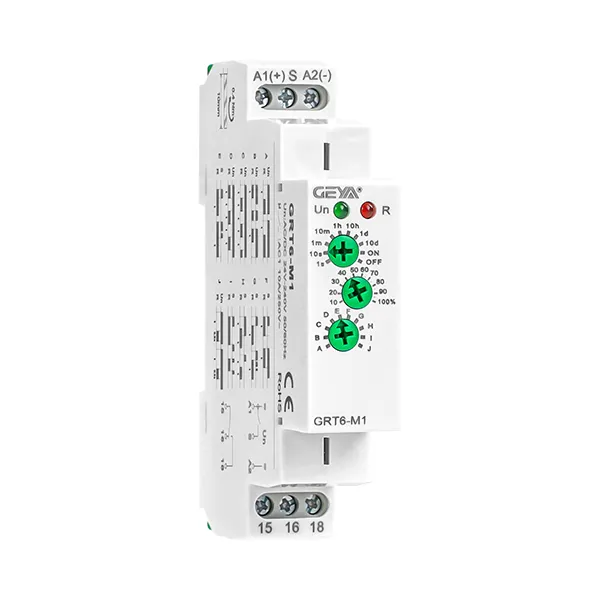

GRT6-M Multifunction Time Relay
Ռելեներ և կառավարում։ GRT6-M Multifunction Time Relay։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Technical parameters | GRT6-M1 | GRT6-M2 |
| Function | A,B,C,D,E,F,G,H,I,J | |
| Supply terminals | A1-A2 | |
| Voltage range | A230 S240 | AC/DC24-240V(50-60Hz) |
| Burden | AC 0.09-3VA/DC0.05-1.7W | |
| Voltage range | AC 230V(50-60Hz) | |
| Power input | AC max.6VA/1.3W | AC max.6VA/1.9W |
| Supply voltage tolerance | -15%;+10% | |
| Supply indication | greenLED | |
| Time ranges | 0.1s-10days,ON,OFF | |
| Time setting | potentionmeter | |
| Time deviation | 10%-mechanical setting | |
| Repeat accuracy | 0.2%-setvalue stability | |
| Temperature coecient | 0.05%/℃,at=20℃(0.05%°F,at=68°F) | |
| Output | 1×SPDT | 2×SPDT |
| Current rating | 10A/AC1 | |
| Switching voltage | 250VAC/24VDC | |
| Min.breaking capacity DC | 500mW | |
| Output indication | red LED | |
| Mechanicallife | 1×107 | |
| Electrical life(AC1) | 1×105 | |
| Reset time | max.200ms | |
| Operating temperature | -20℃ to +55℃(-4°F to 131°F) | |
| Storage temperature | -35℃ to +75℃-22°F to 158°F) | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protection degree | IP40 for front panel/IP20 terminals | |
| Operating position | any | |
| Overvoltage cathegory | III. | |
| Pollution degree | 2 | |
| Max.cable size(mm²) | solid wire max.1X2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) | |
| Tightening torque | 0.4Nm | |
| Dimensions | 90×18×64mm | |
| Weight | 1×SPDT:S240-63g,A230-62g | |
| 2×SPDT:S240-82g,A230-81g | ||
| Standards | EN61812-1,IEC60947-5-1 |
