GEYA

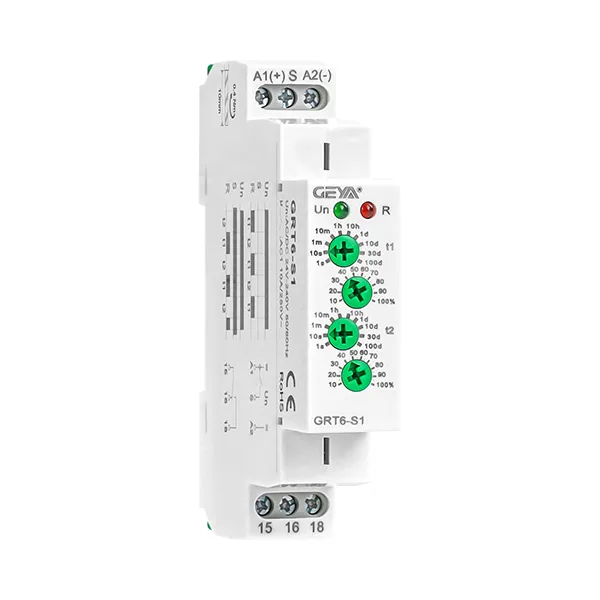

GRT6-S Asymmetric Cycler Time Relay
Ռելեներ և կառավարում։ GRT6-S Asymmetric Cycler Time Relay։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Technical parameters | GRT6-S1 | GRT6-S2 |
| Function | Asymmetric cycler time relay | |
| Supply terminals | A1-A2 | |
| Voltage range | A230S240 | AC/DC24-240V(50-60Hz |
| Burden | AC 0.09-3VA/DC 0.05-1.7W | |
| Voltage range | AC 230V(50-60Hz) | |
| Power input | AC max.6VA/1.3W | AC max.6VA/1.9W |
| Supply voltage tolerance | ‘-15%;+10% | |
| Supply indication | greenLED | |
| Time ranges | 0.1s-10days | |
| Time setting | potentionmeter | |
| Time deviation | 10%-mechanical setting | |
| Repeat accuracy | 0.2%-setvalue stability | |
| Temperature coecient | 0.05%/℃,at=20℃(0.05%F,at=68F) | |
| Output | 1XSPDT | 2×SPDT |
| Currentrating | 10A/AC1 | |
| Switching voltage | 250VAC/24VDC | |
| Min.breaking capacity DC | 500mW | |
| Output indication | red LED | |
| Mechanical life | 1×107 | |
| Electrical life(AC1) | 1×10⁵ | |
| Reset time | max.200ms | |
| Operating temperature | -20℃ to+55℃ (-4F to 131F) | |
| Storage temperature | -35℃ to+75℃(-22F to 158F) | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protection degree | IP40 for front panel/IP20 terminals | |
| Operating position | any | |
| Overvoltage cathegory | III. | |
| Pollution degree | 2 | |
| Max.cable size(mm2) | solid wire max.1×2.5or2×1.5/with sleeve max.1×2.5(AWG 12) | |
| Tightening torque | 0.4Nm | |
| Dimensions | 90×18×64mm | |
| Weight | 1×SPDT:S240-63g,A230-62g | |
| 2×SPDT:S240-83g,A230-82g | ||
| Standards | EN61812-1,IEC60947-5-1 |
