GEYA

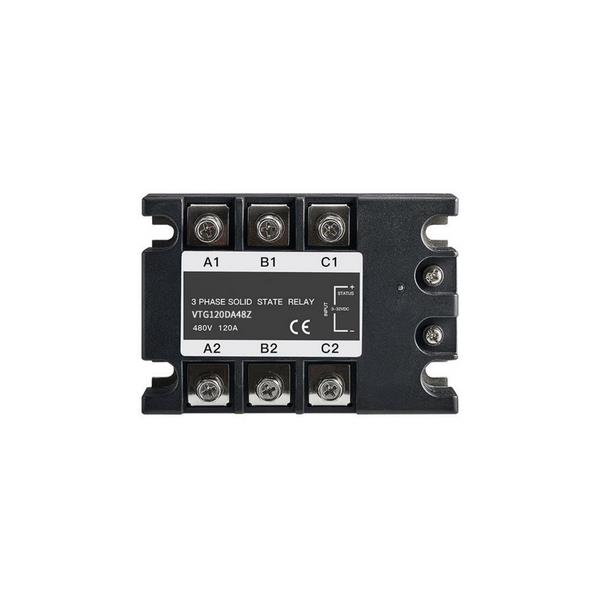

VTG Series Three Phase Solid State Relays
Ռելեներ և կառավարում։ VTG Series Three Phase Solid State Relays։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Product Selection | ||||||||
| Control Voltage | Output Voltage | Rated Operational Current | ||||||
| 25Amps | 40Amps | 60Amps | 80Amps | 100Amps | 120Amps | 150Amps | ||
| 3 to 32VDC | 480VAC”Z” | VTG25DA48Z | VTG40DA48Z | VTG60DA48Z | VTG80DA48Z | VTG100DA48Z | VTG120DA48Z | VTG150DA48Z |
| 3 to 32VDC | 480VAC”R” | VTG25DA48R | VTG40DA48R | VTG60DA48R | VTG80DA48R | VTG100DA48R | VTG120DA48R | VTG150DA48R |
| 90 to 280VAC | 480VAC”Z” | VTG25AA48Z | VTG40AA48Z | VTG6OAA48Z | VTG80AA48Z | VTG100AA48Z | VTG120AA48Z | VTG150AA48Z |
| 90 to 280VAC | 480VAC”R” | VTG25AA48R | VTG40AAT8R | VTG6OAA48R | VTG80AA48R | VTG10OAA48R | VTG120AA48R | VTG150AA48R |
| 3 to 32VDC | 530VAC”Z” | VTG25DA53Z | VTG40DA53Z | VTG60DA53Z | VTG80DA53Z | VTG100DA53Z | VTG120DA53Z | VTG150DA53Z |
| 3 to 32VDC | 530VAC”R” | VTG25DA53R | VTG40DA53R | VTG60DA53R | VTG80DA53R | VTG100DA53R | VTG120DA53R | VTG150DA53R |
| 90 to 280VAC | 530VAC”Z” | VTG25AA53Z | VTG40AA53Z | VTG6OAA53Z | VTG80AA53Z | VTG100AA53Z | VTG120AA53Z | VTG150AA53Z |
| 90 to 280VAC | 530VAC”R” | VTG25AA53R | VTG40AA53R | VTG60AA53R | VTG80AA53R | VTG100AA53R | VTG120AA53R | VTG150AA53R |
| Input Specifications | ||
| Parameter-list | Specification Limits | |
| Input Parameter | U | A |
| Control Voltage Range | 3 to 32VDC | 90 to 280VAC |
| Input Current [Max.] | 33/56mADC @=5V/12V | 13mAAC @=220V |
| Must Turn-on Voltage | 3VDC | 90VAC |
| Must Turn-off Voltage | 1VDC | 10VAC |
| Reverse Voltage [Max.] | -6VDC | / |
| Output Specifications | ||||||||
| Output Parameter | Units | Specification Limits | ||||||
| Model No.:VTG | Amps | 25 | 40 | 60 | 80 | 100 | 120 | 150 |
| Load Current Range | Arms | 3×25 | 3×40 | 3×60 | 3×80 | 3×100 | 3×120 | 3×150 |
| Surge Current 20mSec [Max.] | Arms | 300 | 400 | 600 | 800 | 1000 | 1200 | 1500 |
| Load Voltage Range [480V] | Vrms | 48 to 480 | ||||||
| Transient Overvoltage [480V] | Vpk | ≥1200 | ||||||
| Load Voltage Range [530V] | Vrms | 53 to 530 | ||||||
| Transient Overvoltage [530V] | Vpk | ≥1400 | ||||||
| Frequency Range | Hz | 47 to 63 | ||||||
| Off State dv/dt [Min.] | V/usec | 500 | ||||||
| Off State Leakage Current [Max.] | mArms | ≤8 | ||||||
| On State Voltage Drop [Max.] | Vrms | 1.8 | ||||||
| Thermal Resistance,[Rthjc] | °C/W | 0.75 | 0.55 | 0.46 | 0.38 | 0.34 | 0.23 | 0.23 |
| Turn on Time [Max.]“Z” | Cycle | 1/2 | ||||||
| Turn off Time [Max.]“D” | Cycle | 1/2 | ||||||
| Turn on Time [Max.]”R” | mSec | 1 | ||||||
| Turn off Time [Max.]“A” | mSec | 10 |
| General Specifications [Ta=25°C] | |||||||
| Description | 25A | 40A | 60A | 80A | 100A | 120A | 150A |
| Dielectric Strength,Input to Output [50/60 Hz] | 2500Vrms | ||||||
| Dielectric Strength,Input/Output to Base [50/60 Hz] | 2500Vrms | ||||||
| Minimum Insulation Resistance [@500 VDC] | 10⁹Q | ||||||
| Maximum Capacitance,Input/Output | 0.8pF | ||||||
| Ambient Operating Temperature Range | -30 to 80℃ | ||||||
| Ambient Storage Temperature Range | -30 to 100℃ | ||||||
| Humidity per IEC60068-2-78 | 95% | ||||||
| LED Input Status Indicator | Red | ||||||
| Baseplate Material | Pure copper | ||||||
| Weight | 500g |
