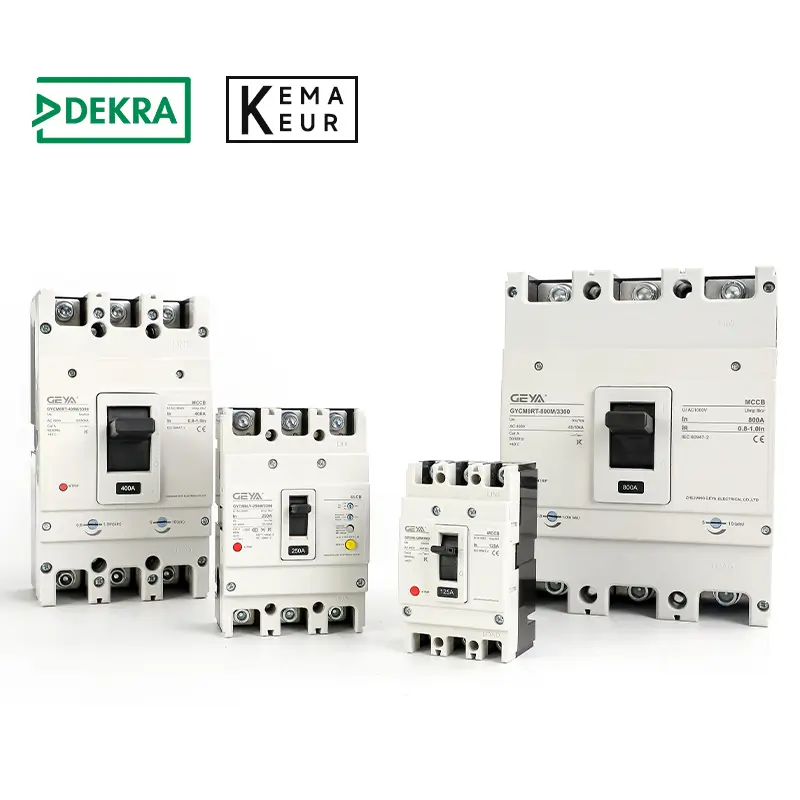

GYCM8 Moulded Case Circuit Breaker 10A-2000A DEKRA&KEMA
Ավտոմատներ և պաշտպանիչներ։ GYCM8 Moulded Case Circuit Breaker 10A-2000A DEKRA&KEMA։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Voltage | 230V/1P | 230V | 400V | 690V | ||||
| Parameter | Icu | Ics | Icu | Ics | Icu | Ics | Icu | Ics |
| GYCM8-125S | 10 | 7.5 | 15 | 15 | 10 | 7.5 | / | / |
| GYCM8-125M | 15 | 10 | 25 | 20 | 15 | 10 | / | / |
| GYCM8-160S | 35 | 25 | 20 | 15 | / | / | ||
| GYCM8-160M | 65 | 50 | 30 | 20 | 10 | 8 | ||
| GYCM8-250S | 35 | 25 | 20 | 15 | 10 | 8 | ||
| GYCM8-250M | 50 | 50 | 35 | 25 | 15 | 10 | ||
| GYCM8-400M | 50 | 35 | 35 | 25 | 15 | 10 | ||
| GYCM8-630M | 50 | 35 | 35 | 25 | 15 | 10 | ||
| GYCM8-800H | 65 | 50 | 50 | 35 | 20 | 15 | ||
| GYCM8-1000H | 65 | 65 | 50 | 35 | 25 | 15 | ||
| GYCM8-1250H | 65 | 65 | 50 | 35 | 25 | 15 | ||
| GYCM8-1600H | 75 | 65 | 50 | 35 | 25 | 25 |
| Molded case circuit breaker | GYCM8-125 | GYCM8-160 | |||||||
| Shell level current In: | 10A、16A、20A、25A、32A、40A、50A、63A、80A、100A、125A | 10A、16A、20A、25A、32A、40A、50A、63A、80A、100A、125A、140A、160A | |||||||
| Short circuit breaking capacity code: | C | S | M | H | C | S | M | H | |
| Number of poles: | 1P;2P:3P:4P | 2P(without M/H);3P;4P | |||||||
| Rated working voltage Ue (V),AC: | AC230V AC400V AC690V | AC230V AC400V AC690V | AC230V(1P); AC400V(2P/3P/4P) | AC230V(1P); AC400V(2P/3P/4P) | AC230V AC400V AC690V | AC230V; AC400V; AC690V | AC230V AC400V AC690V | AC230V AC400V AC690V | |
| Rated insulation voltageUi (V): | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | |
| Rated impulse withstand voltage Uimp(kV): | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | |
| Rated operating short-circuit segmentation capacity Ics(%lcu): | AC230V: | 5kA | 15kA | 35kA (3P/4P) | 50kA | 7kA | 10kA | 25kA | 35kA |
| AC400V: | 5kA | 13kA(3P/4P) | 18kA(2P/3P/4P) | 50kA | 10kA | 13kA; | 18kA | 35kA(2P) 50kA(3P/4P) | |
| AC690V: | 3kA | 3kA(3P/4P) | 5kA(3p/4P) | 8kA | 2kA | 3kA | 5kA | 10kA | |
| Rated ultimate short-circuit segmentation capacity cu(kA): | AC230V: | 8kA | 30kA | 36kA(1P) 50kA(3P/4P) | 50kA | 10kA | 20kA | 30kA | 50kA |
| AC400V: | 8kA | 25kA(3p/4P) | 36kA(2P/3P/4P) | 50kA | 15kA | 25kA | 36kA | 50kA | |
| AC690V: | 5kA | 6kA(3p/4P) | 10kA(3p/4P) | 15kA | 8kA | 6kA | 10kA | 15kA | |
| Selective categories: | Class A | ||||||||
| Type of overcurrent release: | Thermomagnetic type | ||||||||
| GYCM8 External dimensions (mm)width (W)*Length (L)*height(H) | Shell level current | GYCM8-125 | GYCM8-160 | ||||||
| poles Number | 1P | 2P | 3P | 4P | 2P | 3P | 4P | ||
| wide | 25 | 50 | 75 | 100 | 60 | 90 | 120 | ||
| length | 130 | 130 | 130 | 130 | 155 | 155 | 155 | ||
| height/ Face cover | 68 | 68 | 68 | 68 | 68/82 | 68/82 | 68/82 | ||
| height/ Handle | 94.5 | 94.5 | 94.5 | 94.5 | 94/108 | 94/108 | 94/108 | ||
| Note:The height from the bottom of the base to the (cover/handle) |
| Molded case circuit breaker | GYCM8-250 | GYCM8-400 | GYCM8-630 | |||||||
| Shell level current In: | 100A,125A,140A,160A,180A,20OA,225A,250A | 250A、315A、350A、400A | 500A、630A | |||||||
| Short circuit breaking capacity code: | C | S | M | H | S | M | H | M | H | |
| Number of poles: | 3P;4P | 3P;4P | 3P;4P | |||||||
| Rated working voltage Ue(V),AC: | AC230V AC400V AC690V | AC230V; AC400V; AC690V | AC230V AC400V AC690V | AC230V AC400V AC690V | AC230V AC400V AC690V | AC230V AC400V AC690V | AC230V AC400V AC690V | AC230V AC400V AC690V | AC230V AC400V AC690V | |
| Rated insulation voltage Ui (V): | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | |
| Rated impulse withstand voltage Uimp (kV): | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | |
| Rated operating | AC230V: | 20kA | 25kA | 40kA | 50kA | 25kA | 40kA | 50kA | 20kA | 30kA |
| short-circuit segmentation capacity Ics(%lcu): | AC400V: | 10kA | 15kA | 35kA | 50kA | 15kA | 35kA | 65kA | 35kA | 65kA |
| AC690V: | 3kA | 4kA | 10kA | 15kA | 4kA | 10kA | 12kA | 5kA | 30kA | |
| Rated ultimate short-circuit segmentation capacity cu(kA): | AC230V: | 30kA | 50kA | 65kA | 70kA | 50kA | 65kA | 70kA | 30kA | 50kA |
| AC400V: | 15kA | 30kA | 50kA | 65kA | 30kA | 50kA | 65kA | 50kA | 65kA | |
| AC690V: | 5kA | 8kA | 15kA | 20kA | 8kA | 20kA | 25kA | 10kA | 20kA | |
| Selective categories: | Class A | |||||||||
| Type of overcurrent release: | Thermomagnetic type | |||||||||
| GYCM8 External dimensions (mm)width (W)*Length (L)*height(H） | Shell level current | GYCM8-250 | GYCM8-400 | GYCM8-630 | ||||||
| poles Number | 3P | 4P | 3P | 4P | 3P | 4P | ||||
| wide | 105 | 140 | 140 | 184 | 140 | 184 | ||||
| length | 165 | 165 | 257 | 257 | 257 | 257 | ||||
| height/ Face cover | 68 | 68 | 68 | 88 | 103 | 103 | 103 | 103 | ||
| height/ Handle | 96 | 116 | 96 | 116 | 152 | 152 | 152 | 152 | ||
| Note:The height from the bottom of the base to the(cover/handle) |
| Molded case circuit breaker | GYCM8-800 | GYCM8-1250 | GYCM8-2000 | |||||
| Shell level current In: | 500A、630A、700A、800A | 630A、700A、800A、1000A、1250A | 1000A、1250A、1600A、2000A | |||||
| Short circuit breaking capacity code | M | H | S | M | H | M | H | |
| Number of poles: 3P;4P 3P;4P 3P;4P | 3P；4P | 3P；4P | 3P；4P | |||||
| Rated working voltage Ue(V),AC: | AC230V AC400V AC690V | AC230V AC400V AC690V | AC240V; AC400V; C690V | AC230V；AC400V；AC690V | AC230V AC400V AC690V | AC400V AC690V | AC690V AC400V | |
| Rated insulation voltage Ui(V): | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | |
| Rated impulse withstand voltage Uimp(kV): | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | |
| Rated operating short-circuit segmentation capacity lcs(%lcu): | AC230V: | 65KA | 70KA | 40KA | 65KA | 70KA | 一 | 一 |
| AC400V: | 50KA | 65KA | 35KA | 50KA | 65KA | 50KA | 85KA | |
| AC690V: | 15KA | 20KA | 10KA | 15KA | 20KA | 20KA | 20KA | |
| Rated ultimate short-circuit segmentation capacity lcu(kA): | AC230V: | 80KA | 85KA | 65KA | 80KA | 85KA | 一 | 一 |
| AC400V: | 65KA | 85KA | 50KA | 65KA | 85KA | 50KA | 100KA | |
| AC690V: | 25KA | 35KA | 20KA | 25KA | 35KA | 20KA | 20KA | |
| Selective categories: | Class A | |||||||
| Type of overcurrent release: | Thermomagnetic type | |||||||
| GYCM8 External dimensions (mm)width (W)*Length (L)*height(H) | Shell level current | GYCM8-800 | GYCM8-1250 | GYCM8-2000 | ||||
| poles Number | 3P | 4P | 3P | 4P | 3P | 4P | ||
| wide | 210 | 280 | 210 | 280 | 210 | 280 | ||
| length | 275.5 | 275.5 | 275.5 | 275.5 | 340 | 340 | ||
| height/ Face cover | 103 | 103 | 103 | 103 | 141 | 141 | ||
| height/ Handle | 152 | 152 | 152 | 152 | 244 | 244 | ||
| Note:The height from the bottom of the base to the (cover/handle) |
