GEYA

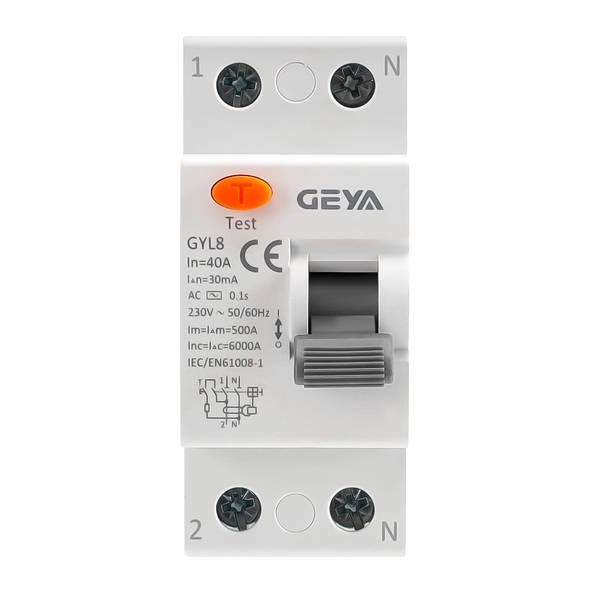

GYL8 Earth Leakage Circuit Breaker (ELCB)
Ավտոմատներ և պաշտպանիչներ։ GYL8 Earth Leakage Circuit Breaker (ELCB)։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Electrical features | ||
| Model | GYL8M | GYL8E |
| Product standard | IEC/EN61008-1 | IEC/EN61008-1 |
| Poles | 2P、4P | 2P、4P |
| Residual current protection type | Electromagnetic | Electronic |
| Residual current working type | A C AC-S A A-S | A C AC-S A A-S |
| Rated current In | 16A-63A | 16A-63A |
| Rated sensitivity I△n | 30、100、300mA | 30、100、300mA |
| Insulation voltage Ue | 2P:230V,4P:400V | 2P:230V,4P:400V |
| Rated voltage Ui | 500V | 500V |
| Rated frequency | 50/60Hz | 50/60Hz |
| Short-circuit current lnc=l△c | 6kA | 6kA |
| Rated residual making and breaking capacity I m==l△m | 500(In≤50A) ,630(In=63A) | 500(In≤50A), 630(In=63A) |
| Rated impulse withstand voltage(1.2/50) Uimp | 4kV | 4kV |
| Dielectric test voltage | 2.5kV/min | 2.5kV/min |
| Pollution degree | 2 | 2 |
| Electrical life | 4000 | 4000 |
| Mechanical life | 10000 | 10000 |
| Contact position indicator | No | No |
| Fault Indication | No | No |
| Installation | ||
| Protection degree | IP20 | IP20 |
| Reference temperature for setting of thermal element | 30℃ | 30℃ |
| Ambient temperature (with daily average ≤35℃) | -5~+40℃ | -5~+40℃ |
| Storage temperature | -35~+70℃ | -35~+70℃ |
| Terminal connection type | Cable/Busbar | Cable/Busbar |
| Terminal size top/bottom for cable | 25mm2 | 25mm2 |
| Terminal size top/bottom for busbar | 25mm2 | 25mm2 |
| Tightening torque | 3.0N | 3.0N |
| Connection | Top and Bottom | Top |
| Combination with accessories | ||
| Auxiliary contact | No | No |
| Alarm contact | No | No |
| Shunt release | No | No |
| Under voltage release | No | No |
