| Parameter | Catalogue value |

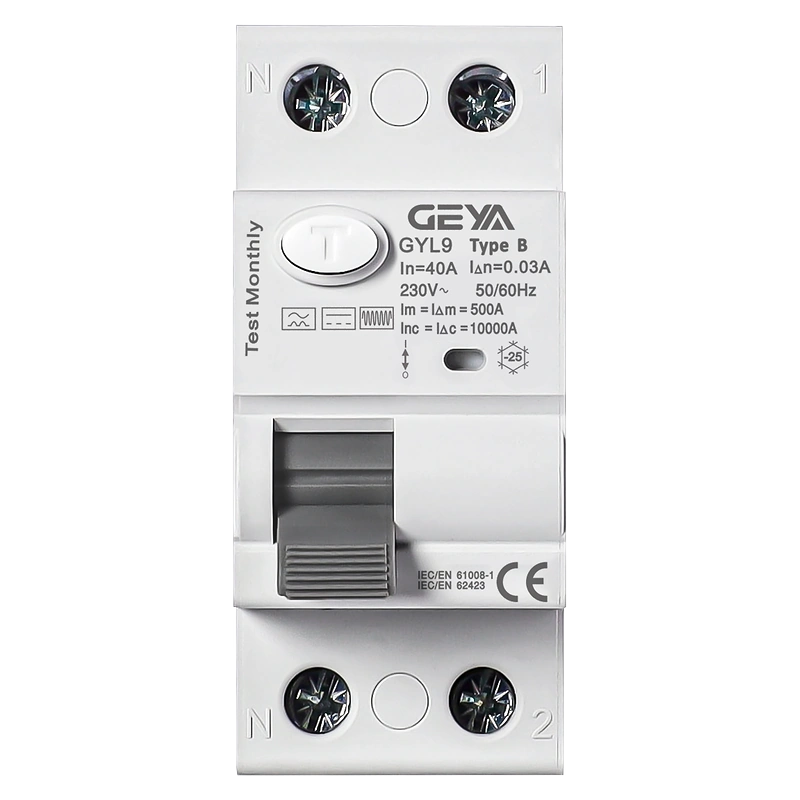

| Product type | Type B RCCB |
| Residual-current detection | Sinusoidal AC; pulsating DC; smooth DC; composite-wave; higher-frequency residual-current components up to 1 kHz |
| Working frequency | 50/60 Hz |
| Residual-current frequency coverage | Up to 1 kHz |
| Rated voltage (Un) | 230/240 V; 400/415 V |
| Rated current (In) | 16, 20, 25, 32, 40, 50, 63, 80, 100 A |
| Rated residual operating current (IΔn) | 30, 100, 300 mA |
| Poles | 1P+N; 3P+N |
| Rated insulation voltage (Ui) | 500 V |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Rated conditional short-circuit current (Inc) | 6 kA; 10 kA |
| Rated conditional residual short-circuit current (IΔc) | 6 kA; 10 kA |
| Making and breaking capacity (Im / IΔm) | 500 A when In ≤ 50 A; 10 × In when In = 63 A. Please contact GEYA for other rated-current options. |
| Catalogue reference standards | IEC/EN 61008-1; IEC/EN 62423; GB/T 22794; GB/T 16916.1 |
