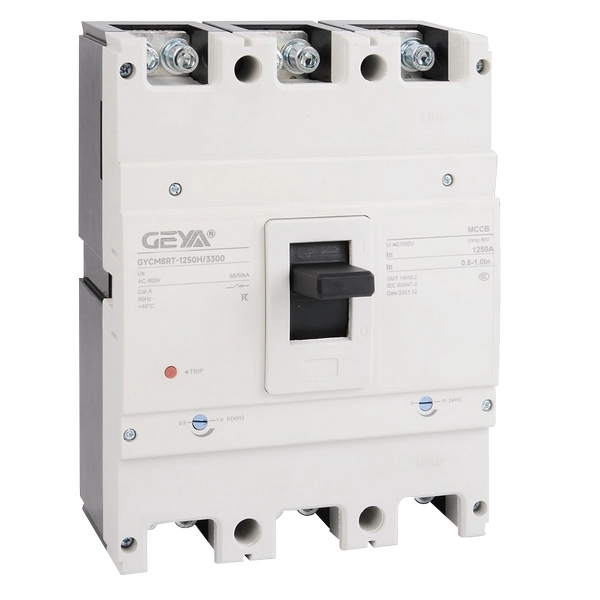

GYCM8RT Series Thermomagnetic Dualadjustable Plastic Case Circuit Breaker

Ավտոմատներ և պաշտպանիչներ։ GYCM8RT Series Thermomagnetic Dualadjustable Plastic Case Circuit Breaker։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։

Բրենդ	GEYA
Ապրանքային խումբ	Ավտոմատներ և պաշտպանիչներ

Տեխնիկական բնութագրեր

GYCM8RT-	160	M	P1	/
Product code:	Shell level current Optional code:	Optional code for short-circui breaking capacity	Optional operation code:
GYCM8RT series thermal magnetic double adjustable molded case circuit breaker	125160 250 400 630800 1250 2000Note:125Only GYCM8RT/A has	C:Basic type S:Standard type M:Higher breaking type H:High breaking typeNote:Conventional production is M-type;400 630,8001250 and 2000 only have M and H types	No code:direct operation P1:DC3 electric operation (market standard) P2:DC6 series electric operation (as shown in the picture) ZY1:Rotating handle(manual center type -circular handle)-(Preferred for regular factory use) ZF1:Rotating handle(manual center type -square handle) ZY2:Rotating handle(hand operated eccentric circular handle) Zf2:Rotating handle(manual eccentric square handle) Z3:Rotating handle(hand operated integrated)(Only available in 160 and 250) Note:The electric operating voltage

4	3	0	B
Pole number	Optional code for release method:	Internal accessory optional code:	Quadrupole product optional code
3:3pole 4:4pole	3:Thermal+electromagnetic release		A:The N-pole is not equipped with an overcurrent release,and the N-pole is always connected B:The N-pole is not equipped with an overcurrent release,and the N-pole is opened and closed together with the other three poles C:Install an overcurrent release on the N-pole, and the N-pole will be combined and disconnected with the other three poles D:Install an overcurrent release on the N-pole and ensure that the N-pole is always connected

P	Z	In=100A
Optional installation and wiring method code:	Protective accessory code	Rated current:
No code:Board front wiring (fixed type) P:Connection bar(extended copper bar) Z1:Rear board wiring(fixed type) Z2Q:Plug in front wiring(split type) Z2H:Plug in board rear wiring (split type) Z3Q:Plug in front wiring(integrated) Z3H:Plug in board rear wiring (integrated) DF:withdrawable front panel wiring DR:Pull out board rear wiringNote:160 and 250 have no withdrawable type; 1250 and 2000 only have connecting bars	No code:regular product 7:Terminal cover	125:20A、25A、32A、40A、50A、63A、 80A、100A、125A 160:25A、32A、40A、 50A、63A、80A、100A、125A、160A 250:160A、180A、200A、 225A、250A 400:315A、350A、400A 630:500A、630A 800:630A、800A 1250:1000A、1250A 2000:1600A

Molded case circuit breaker	GYCM8RT/A-125	GYCM8RT-160	GYCM8RT-250	GYCM8RT-400
Number of poles	3P	4P	3P	4P	3P	4P	3P	4P
GYCM8RT External Accessories:	Electric operation	✔	✔	✔	✔	✔	✔	✔	✔
Hand operatior	✔	✔	✔	✔	✔	✔	✔	✔
Expansion copper bar	✔	✔	✔	✔	✔	✔	✔	✔
Mechanical interlocking	✔	✔	✔	✔	✔	✔	✔	✔
Insert type front split type	✔	✔	✔	✔	✔	✔	✔	✔
Insert type front integrated panel	✔	✔	✔	✔	✔	✔	✔	✔
Insert type front fixed type	✔	✔	✔	✔	✔	✔	✔	✔
Insert type rear split type	✔	✔	✔	✔	✔	✔	✔	✔
Insert type rear integrated board	✔	✔	✔	✔	✔	✔	✔	✔
Insert type rear fixed type	✔	✔	✔	✔	✔	✔	✔	✔
After the pull-out board	一	一	一	一	一	一	✔	一

Molded case circuit breaker	GYCM8RT-630	GYCM8RT-800	GYCM8RT-1250	GYCM8RT-2000
Number of poles	3P	4P	3P	4P	3P	4P	3P	4P
GYCM8RT External Accessories:	Electric operation	✔	✔	✔	✔	✔	✔	✔	✔
Hand operation	✔	✔	✔	✔	✔	✔	✔	✔
Expansion copper bar	✔	✔	✔	✔	✔	✔	✔	✔
Mechanical interlocking	✔	✔	✔	✔	一	一	一	一
Insert type front split type	✔	✔	✔	✔	一	一	一	一
Insert type front integrated panel	✔	✔	✔	✔	一	一	一	一
Insert type front fixed type	✔	✔	✔	✔	一	一	一	一
Insert type rear split type	✔	✔	✔	✔	一	一	一	一
Insert type rear integrated board	✔	✔	✔	✔	一	一	一	一
Insert type rear fixed type	✔	✔	✔	✔	一	一	一	一
After the pull-out board	✔	一	✔	一	一	一	一	一

Molded case circuit breaker

GYCM8RT/A-125

GYCM8RT-160

GYCM8RT-250

Shell level current In:

16A、20A、25A、32A、40A、50A、63A、80A、100A、125A、

25A、32A、40A、50A、63A、80A、100A、125A、140A、160A

100A、125A、140A、160A、180A、200A、225A、250A

Short circuit breaking capacity code:

Number of poles:

3P;4P

Rated working voltage Ue (V),AC:

AC400V

AC40OV

AC400V

AC40OV

Rated insulation voltage Ui(V):

1000V

Rated impulse withstand voltage Uimp (kV)

8kV

Rated operating short-circuit segmentation capacity Ics(%lcu):

AC400V

5kA

10kA

18kA

50kA

5kA

10kA

50kA

5kA

8kA

10kA

50kA

Rated ultimate short circuit segmentation capacity Icu(kA)

AC400V

10kA

20kA

36kA

50kA

8kA

20kA

50kA

8kA

15kA

20kA

50kA

Selective categories:

Class A

Type of overcurrent release:

Thermomagnetic type

GYCM8RT External dimensions (mm)width (W)*Length (L)*height(H）

Shell level current

GYCM8RT/A-125

GYCM8RT-160

GYCM8RT-250

poles Number

wide

100

120

105

140

length

130

155

165

height/ Face cover

height/ Handle

94.5

108

116

Note:The height from the bottom of the base to the(cover/handle)

Molded case circuit breaker	GYCM8RT-400	GYCM8RT-630	GYCM8RT-800	GYCM8RT-1250	GYCM8RT-2000
Shell level current In:	320A、350A、400A	400A、500A、630A;	630A、700A、800A	1000A、1250A	1600A
Short circuit breaking capacity code:	M	H	M	H	M	H	M	H	M	H
Number of poles:	3P;4P	3P;4P	3P;4P	3P;4P	3P;4P
Rated working voltage Ue(V),AC:	AC400V	AC400V	AC400V	AC400V	AC400V	AC400V	AC400V	AC400V	AC400V	AC400V
Rated insulation voltage Ui (V):	1000V	1000V	1000V	1000V	1000V	1000V	1000V	1000V	1000V	1000V
Rated impulse withstand voltage Uimp (kV):	8kV	8kV	8kV	8kV	8kV	8kV	8kV	8kV	8kV	8kV
Rated operating short-circuit segmentation capacity Ics(%Icu):	AC400V	50kA	50kA	50kA	50kA	50kA	65kA	50kA	65kA	50kA	85kA
Rated ultimate short- circuit segmentation capacity Icu(kA):	AC400V	50kA	50kA	50kA	50kA	65kA	85kA	65kA	85kA	50kA	100kA
Selective categories:	Class A
Type of overcurrent release:	Thermomagnetic type
GYCM8RT External dimensions(mm)width (W)Length (L)height(H	Shell level current	GYCM8RT-400	GYCM8RT-630	GYCM8RT-800	GYCM8RT-1250	GYCM8RT-2000
poles Number	3P	4P	3P	4P	3P	4P	3P	4P	3P	4P
wide	140	184	140	184	210	280	210	280	210	280
length	257	257	257	257	275.5	275.5	275.5	275.5	340	340
height/ Face cover	103	103	103	103	103	103	103	103	141	141
height/ Handle	152	152	152	152	152	152	152	152	244	244
Note:The height from the bottom of the base to the (cover/handle)
