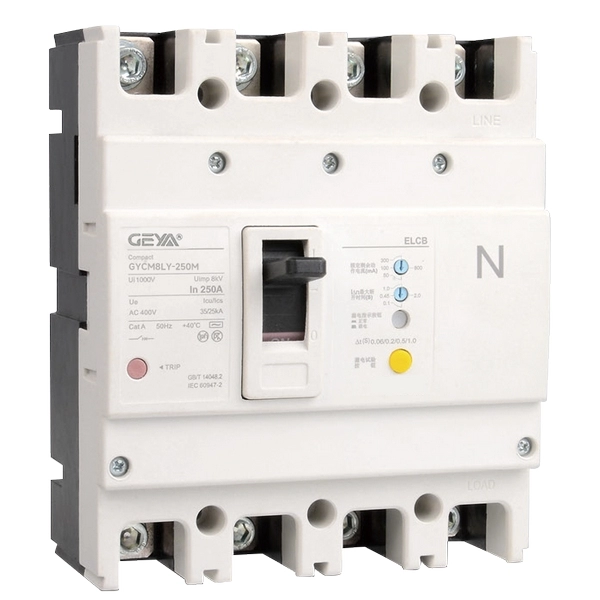

GYCM8LY Series Thermomagnetic Leakage Plastic Case Circuit Breaker
Ավտոմատներ և պաշտպանիչներ։ GYCM8LY Series Thermomagnetic Leakage Plastic Case Circuit Breaker։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| GYCM8LY- | 160 | M | P1 | / |
| Product code | Shell level current Optional code: | Optional code for short-circuit breaking capacity | Optional operation code: | |
| GYCM8LY series thermomagnetic leakage plastic case circuit breaker | 125 160 250 400 630 800 1250Note:125,160 and 250 are only available for C and S types400,630,800, 1250 only have M and H types | C:Basic type S:Standard type M:Higher breaking type H:High breaking typeNote:Conventional production is M-type;400 630,8001250 and 2000 only have M and H types | No code:direct operation P1:DC3 electric operation (market standard) P2:DC6 series electric operation (as shown in the picture) ZY1:Rotating handle(manual center type -circular handle)-(Preferred for regular factory use) ZF1:Rotating handle(manual center type -square handle) ZY2:Rotating handle(hand operated eccentric circular handle) Zf2:Rotating handle(manual eccentric square handle Z3:Rotating handle(hand operated integrated)(Only available in 160 and 250) Note:The electric operating voltage |
| 4 | 3 | 0 | 2 | B |
| Pole number | Optional code for release method: | Internal accessory optional code: | Usage code: | Quadrupole product optional code: |
| 2:2pole 3:3pole 4:4poleNote:The second pole is only 160, and the conventiona production is for the fourth pole | 2:Only electromagnetic release 3:Thermal+ electromagnetic release | No code:for distribution protection2 Motor protection note:≤40A 8.5ln does not operate,500A operates 700- 800ANo motor protection type | A:The N-pole is not equipped with an overcurrent release,and the N-pole is always connectedB:The N-pole is not equipped with an overcurrent release,and the N-pole is opened and closed together with the other three polesC:Install an overcurrent release on the N-pole and connect the N-pole with the other three polesD:Install overcurrent release on N-pole and keep N-pole connected at all times |
| II | / | P | Z | In=100A |
| Additional function code | Optional installation and wiring method code | Protective accessory code | Rated current | |
| No code:regular product l:Leakage alarm and trip ll:Leakage alarm does not trir T:Communication function (Modbus protocol | No code:Board front wiring (fixed type) P:Connection bar(extended copper bar) Z1:Rear board wiring (fixed type) Z2Q:Plug in front wiring (split type) Z2H:Plug in board rear wiring (split type) Z3Q:Plug in front wiring (integrated)Z3H: Plug in boa rd rear wiring(integrated) DF:withdrawable front panel wiring DR:Pull out board rear wiring Note:160 and 250 without extraction type | No code:regular product Z:Terminal cover Note:Terminal covers are only threeExtremely abundant;400, 630Divided into narrow and long styles,wide and ong stylesDefault to wide and long styles; | 125:16A、20A、25A、32A、40A、50A、63A、80A、100A、125A 160:16A、20A、25A、32A、40A、50A、63A、80A、100A、125A、160A 250:100A、125A、160A、180A、200A、225A、250A 400:250A、315A、350A、400A 800:500A、630A、700A、800A 1250:900A、1000A、1250A |
| Molded case circuit breaker: | GYCM8LY-125 | GYCM8LY-160 | GYCM8LY-250 | GYCM8LY-400 | GYCM8LY-630 | GYCM8LY-800 | GYCM8LY-1250 | ||||||||||
| Number of poles | 2P | 3P | 4P | 2P | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | |
| GYCM8LY External Accessories: | Electric operation | 一 | ✔ | ✔ | 一 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Hand operation | 一 | ✔ | ✔ | 一 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Expansion copper bar | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | |
| Mechanical interlockinc | 一 | ✔ | ✔ | 一 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | 一 | 一 | |
| Insert type front split type | 一 | ✔ | ✔ | 一 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | 一 | 一 | |
| Insert type front integrated panel | 一 | ✔ | ✔ | 一 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | 一 | 一 | |
| Insert type front fixed type | 一 | ✔ | ✔ | 一 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | 一 | 一 | |
| Insert type rear split type | 一 | ✔ | ✔ | 一 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | 一 | 一 | |
| Insert type rear integrated board | 一 | ✔ | ✔ | 一 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | 一 | 一 | |
| Insert type rear fixed type | 一 | ✔ | ✔ | 一 | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | 一 | 一 | |
| After the pull-out board | 一 | 一 | 一 | 一 | 一 | 一 | 一 | 一 | 一 | ✔ | 一 | ✔ | 一 | ✔ | 一 | 一 |
| Molded case circuit breaker | GYCM8LY-125 | GYCM8LY-160 | GYCM8LY-250 | GYCM8LY-400 | |||||||||||
| Shell level current In: | 16A、20A、25A、30A、32A、40A、50A、60A、63A、75A、80A、90A、100A、125A | 16A、20A、25A、30A、32A、40A、50A、60A、63A、75A、80A、90A、100A、125A、140A、150A、160A | 100A、125A、140A、150A、160A、175A、180A、200A、225A、250A | 250A、315A、350A、400A | |||||||||||
| Short circuit breaking capacity code: | C | S | M | H | C | S | M | H | C | S | M | H | M | H | |
| Number of poles: | 2P;3P;4P | 2P;3P;4P | 3P;4P | 3P;4P | |||||||||||
| Rated working voltage Ue (V),AC | AC230V(2P)、 AC400V(3P、3P+N、4P) | AC230V(2P)、 AC400V(3P、3P+N、4P) | AC400V | AC400V | |||||||||||
| Rated insulation voltage Ui (V)： | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | |
| Rated impulse withstand voltage Uimp (kV): | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | |
| Rated operating short-circuit segmentation capacity Ics(%lcu): | AC400V | 3kA | 5kA | 18kA | 35kA | 10kA | 15kA | 25kA | 35kA | 10kA | 18kA | 25kA | 35kA | 35kA | 42kA |
| Rated ultimate short-circuit segmentation capacity Icu(kA） | AC400V | 5kA | 8kA | 25kA | 35kA | 15kA | 20kA | 25kA | 35kA | 15kA | 25kA | 35kA | 50kA | 50kA | 65kA |
| |△ m: | 12.5kA | 12.5kA | 12.5kA | 12.5kA | 一 | 一 | 12.5kA | 12.5kA | 一 | 一 | 12.5kA | 12.5kA | 一 | 16.25kA | |
| Rated residual action type: | AC type | ||||||||||||||
| Selective categories: | Class A | ||||||||||||||
| Type of overcurrent release: | Thermomagnetic type | ||||||||||||||
| Leakage release type: | Electronic | ||||||||||||||
| GYCM8LY External dimensions (mm)width (W)*Length (L)*height(H) | Shel level current | GYCM8LY-125 | GYCM8LY-160 | GYCM8LY-250 | GYCM8LY-400 | ||||||||||
| poles Number | 2P | 3P | 4P | 2P | 3P | 4P | 3P | 14P | 3P | 4P | |||||
| wide | 50 | 75 | 100 | 60 | 90 | 120 | 105 | 140 | 140 | 184 | |||||
| length | 130 | 130 | 130 | 155 | 155 | 155 | 165 | 165 | 257 | 257 | |||||
| height/ Face cover | 68 | 68 | 68 | 68 | 68 | 68 | 68 | 68 | 103 | 103 | |||||
| height/ Handle | 94.5 | 94.5 | 94.5 | 94 | 94 | 94 | 96 | 96 | 152 | 152 | |||||
| Note:The height from the bottom of the base to the (cover/handle) |
| Molded case circuit breaker | GYCM8LY-630 | GYCM8LY-800 | GYCM8LY-1250 | ||||
| Shell level current In: | 400A、500A、630A | 500A、630A、700A、800A | 1000A、1250A | ||||
| Short circuit breakinç capacity code | M | H | M | H | M | H | |
| Number of poles: | 3P;4P | 3P;4P | 3P;4P | ||||
| Rated working voltage Ue (V),AC: | AC400V | AC400V | AC400V | AC400V | AC400V | AC400V | |
| Rated insulation voltage Ui (V)： | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V | |
| Rated impulse withstand voltage Uimp (kV): | 8kV | 8kV | 8kV | 8kV | 8kV | 8kV | |
| Rated operating short-circuit segmentation capacity Ics(%Icu)： | AC400V | 35kA | 50kA | 35kA | 50kA | 35kA | 50kA |
| Rated ultimate short-circuit segmentation capacity Icu(kA) | AC400V: | 50kA | 65kA | 50kA | 65kA | 50kA | 65kA |
| Rated residual operating current l△ n(mA): | 50mA、100mA、200mA、300mA、500mA、800mA、1000mA(Choose any four adjustable gears) | ||||||
| I△ m: | 16.25kA | 16.25kA | 16.25kA | 16.25kA | 16.25kA | 16.25kA | |
| Rated residual action type: | AC type | ||||||
| Selective categories: | Class A | ||||||
| Type of overcurrent release: | Thermomagnetic type | ||||||
| Leakage release type: | Electronic | ||||||
| GYCM8LY External dimensions (mm)width (W)*Length (L)*height(H） | Shell level current | GYCM8LY-630 | GYCM8LY-800 | GYCM8LY-1250 | |||
| poles Number | 3P | 4P | 3P | 4P | 3P | 4P | |
| wide | 140 | 184 | 210 | 280 | 210 | 280 | |
| length | 257 | 257 | 275.5 | 275.5 | 275.5 | 275.5 | |
| height/ Face cover | 103 | 103 | 103 | 103 | 103 | 103 | |
| height/ Handle | 152 | 152 | 152 | 152 | 152 | 152 | |
| Note:The height from the bottom of the base to the (cover/handle) |
