GEYA

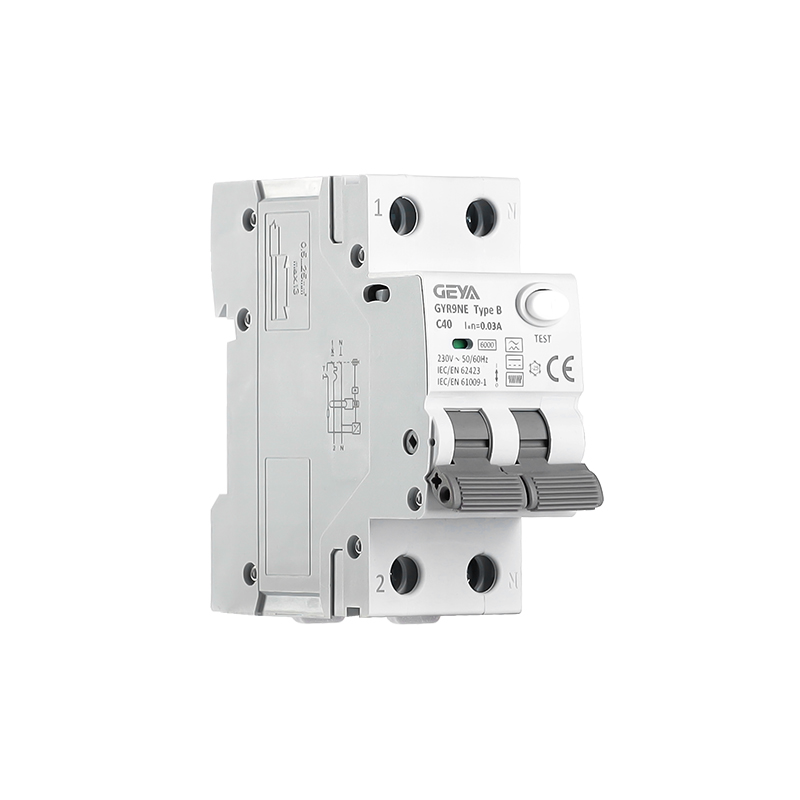

GYR9NE-B/F Type B&F RCBO
Ավտոմատներ և պաշտպանիչներ։ GYR9NE-B/F Type B&F RCBO։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Detection of waveform | Waveform | Different waveform action range |
| Sine AC | ~ | 0.5 ~ 1 I△n |
| Pulsating DC | [⎍] | 0.35 ~ 1.4 I△n |
| High frequency (up to 1kHz) | [⌇⌇⌇] | 150Hz, 0.5 ~ 2.4 I△n 400Hz, 0.5 ~ 6 I△n 1000Hz, 1 ~ 14 I△n |
| Two phase full wave rectification | [◠◠] | 0.5 ~ 2 I△n |
| Three phase full wave rectifier | [mm] | 0.5 ~ 2 I△n |
| Smooth direct current | — | 0.5 ~ 2 I△n |
| Rated current In(A) | Rated residual action current IΔn(mA) | Residual current breaking time (s) | ||||
| IΔn | 2IΔn | 5IΔn | 5A~200A | 500A | ||
| 6~40 | 30, 100, 300 | ≤0.1 | ≤0.08 | ≤0.04 | ≤0.04 | ≤0.04 |
| Parameter | Specification |
| Rated Voltage (Un) | 230/240V, 240/415V |
| Rated Current (In) | 6A, 10A, 16A, 20A, 25A, 32A, 40A |
| Rated insulation voltage (Ui) | 500V |
| Rated impact tolerance voltage (Uimp) | 4kV |
| Rated residual action current (IΔn) | 0.03A |
| Poles | 1P+N |
| Residual current action type | Type F, Type B |
| Working Frequency | 50/60Hz |
| Rated limit short circuit current (Inc) | 6000A |
| Rated limit Remaining short circuit current (IΔc) | 6000A |
| Rated on and off capacity (Im) | 500A |
| Rated residual switching and breaking capacity (IΔm) | 500A |
| Tightening moment | 2.0N·m |
| Class of protection | IP20 |
| Trip Curve | B, C, D |
| Installation | TH35-7.5 standard guide rail |
| Mechanical life | 20000 times |
| Electrical life | 4000 times |
