GEYA

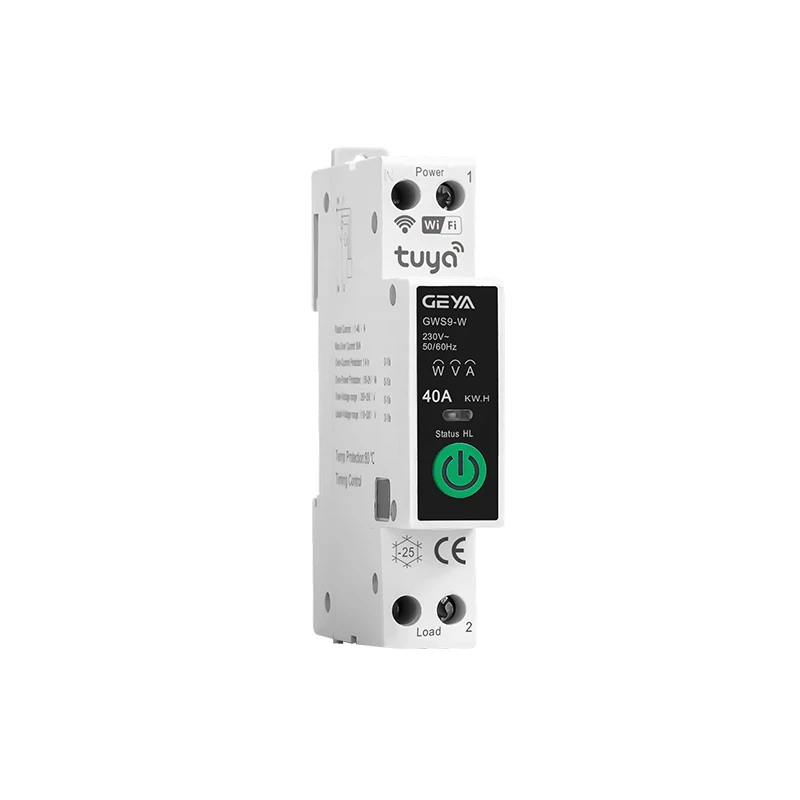

GWS9-W Smart Wifi Circuit Breaker Switch Tuya Wifi 1-63A 1P+N
Ավտոմատներ և պաշտպանիչներ։ GWS9-W Smart Wifi Circuit Breaker Switch Tuya Wifi 1-63A 1P+N։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| No. | Protection function | trip type | Parameter settings | settings | factory default |
| 1 | Over voltage protection | Turn off/Alarm/Trip | Over voltage adjustment | 250～300V | 280V |
| Over voltage delay | 0～10s | 3s | |||
| 2 | Under voltage protection | Turn off/Alarm/Trip | Under voltage adjustment | 80～200V | 165V |
| Under voltage delay | 0～10s | 3s | |||
| 3 | Overload protection | Turn off/Alarm/Trip | Overload adjustment | 1～63A | 63A |
| Overload delay | 3～10s | 3s | |||
| 4 | High temperature protection | Turn off/Alarm/Trip | High temperature adjustment | 0～120℃ | 80℃ |
| High temperature delay | 0～10s | 5s | |||
| 5 | Over power protection | Turn off/Alarm/Trip | Over power value | 50w～11Kw | off |
| Over power delay | 0～10s | ||||
| 6 | Alarm allowed | off/on | |||
| 7 | Automatic closing | off/on | |||
| 8 | Timing control | off/on |
| Parameter | Specification |
| Product Model | GWS9-W |
| Rated Operating Voltage Range | 90V ~ 240V |
| Poles | 1P+N (Neutral Pole cannot be switched off) |
| Maximum Overload Current | 63A (3 ~ 10)s |
| Rated Current | 1 ~ 40A Adjustable |
| Communication Method | Tuya WiFi |
| Operating Environment Temperature | -25°C ~ 70°C |
| Ultimate Short-circuit Capacity | 500A |
| Electrical Life | ≥ 10,000 times |
| Mechanical Life | ≥ 100,000 times |
| Closing Time | < 20ms |
| Opening Time | < 20ms |
| Feature | Specification |
| Basic Parameters | |
| Standards Compliance | AC230V 50/60Hz |
| Number of Poles | 1P+N |
| Dimensions | 90mm x 18mm x 67.7mm |
| Rated Current | 20A / 40A / 60A |
| Ultimate Short-Circuit Capacity | 500A |
| Electrical Lifespan | >10000 Times (60A PF=1) |
| Mechanical Lifespan | >100000 Times |
| Closing Time | <20ms |
| Opening Time | <20ms |
| Measurement Accuracy | 1.0 |
| Operating Temperature | -25°C – 70°C |
| Communication Methods | TUYA Wi-Fi / 4G / Zigbee or Wi-Fi / 4G |
| Leakage Protection | Not Available |
| Functional Parameters | |
| Overvoltage Protection | Trip/Alarm, 250-350V (default 280V), 0-10s delay (default 3s) |
| Undervoltage Protection | Alarm, 110-200V (default 165V), 0-10s delay (default 3s) |
| Overload Protection | Trip, 0.6In-In (default In), 0-10s delay (default 3s) |
| High Temperature Protection | Trip, 60-100°C (default 80°C), 0-10s delay (default 5s) |
| Overpower Protection | Not Available |
| Underpower Protection | Not Available |
| Leakage Detection | Not Available |
| Early Warning Function | Not Available |
| Alarm Allowed | Not Available |
| Automatic Closing | Not Available |
| Timing Control | Not Available |
| Measurement Prepayment | Not Available |
