GEYA

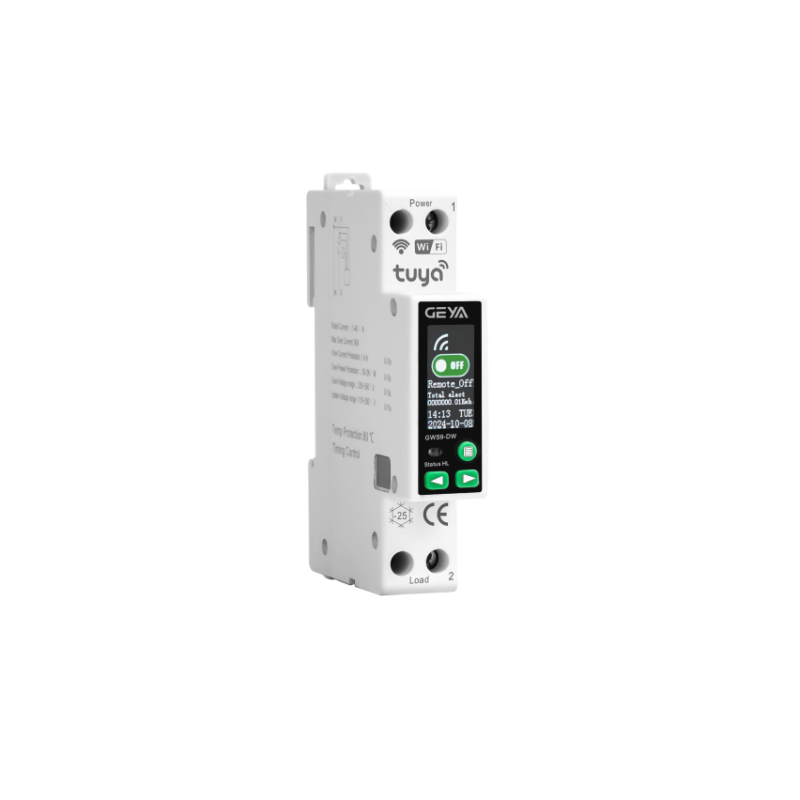

GWS9-DW LCD Display Wifi Circuit Breaker
Ավտոմատներ և պաշտպանիչներ։ GWS9-DW LCD Display Wifi Circuit Breaker։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Parameter | Specification |
| Product model | GWS9-DW |
| Rated operating voltage range | 90-240V |
| Poles | 1P+N (neutral pole is not switchable) |
| Rated current | 1-40A adjustable |
| Maximum overload current | 63A (3-10s) |
| Communication mode | Tuya WiFi |
| Operating ambient temperature | -25 to 70°C |
| Ultimate short-circuit capacity | 500A |
| Electrical life | ≥10,000 operations |
| Mechanical life | ≥100,000 operations |
| Turn-off time | <20ms |
| Turn-on time | <20ms |
| Display screen | LCD |
| Overall width | 18mm (+0/-0.43mm) |
| Depth | 69 ± 0.68mm |
| Overall height | 99 ± 1.2mm |
| Profile dimensions shown | 35.5 ± 0.31mm and 45 ± 0.31mm |
| Protection function | Action | Confirmed settings |
| Overvoltage protection | Turn off / Alarm / Trip | 250-300V adjustment; 0-10s delay; 280V default |
| Undervoltage protection | Turn off / Alarm / Trip | 80-200V adjustment; 0-10s delay; 165V default |
| Overload protection | Turn off / Alarm / Trip | 1-63A adjustment; 3-10s delay; 50A default |
| High-temperature protection | Turn off / Alarm / Trip | 0-120°C adjustment; 0-10s delay; 80°C default |
| Overpower protection | Turn off / Alarm / Trip | 50W-11kW adjustment; 0-10s delay; default off |
