GEYA

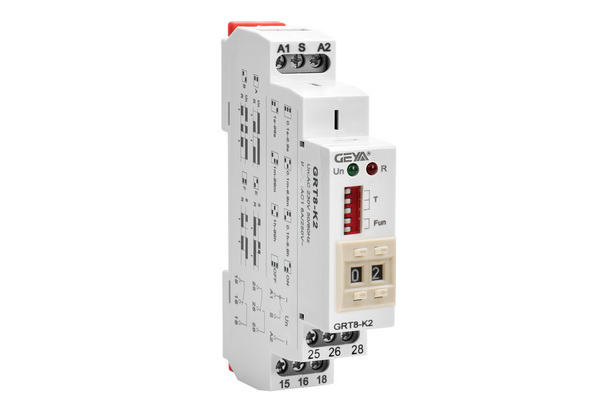

Digital Setting Time Relay GRT8-K2
Ռելեներ և կառավարում։ Digital Setting Time Relay GRT8-K2։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| GRT8-K1 | GRT8-K2 | |
| Function | A,B,E,F， | |
| Supply terminals | A1-A2 | |
| Voltage range | AC/DC 12-240V(50-60Hz) | |
| Burden | AC0.09-3VA/DC0.05-1.7W | |
| Voltage range | AC 230V(50-60Hz) | |
| Power input | AC max.6VA/1.3w | AC max.6VA/1.9w |
| supply voltage tolerance | -15%;+10% | |
| supply indication | green LED | |
| Time ranges | 0.1s-99h,ON,OFF | |
| Time setting | Digital switch | |
| Time deviation | ≤1% | |
| Repeat accuracy | 0.2%-set value stability | |
| Temperature coefficient | 0.05%rC,at=20°C(0.05%°F，at=68°F) | |
| Output | 1xSPDT | 2xSPDT |
| current rating | 1x16A(AC1) | 2x8A(AC1) |
| switching voltage | 250VAC/24VDC | |
| Min. breaking capacity DC | 500mW | |
| Output indication | red LED | |
| Mechanical life | 1×107 | |
| Electrical life(AC1) | 1×105 | |
| Reset time | max.200ms | |
| Operating temperature | -20℃ to +55℃(-4℉to 131℉) | |
| Storage temperature | -35℃ to+75℃ (-22℉ to 158℉) | |
| Mounting/DIN rail | Din rail EN/IEC60715 | |
| Protection degree | IP40 for front panel/IP20 terminals | |
| operating position | any | |
| Overvoltage category | Ⅲ | |
| Pollution degree | 2 | |
| Max.cable size(mm2) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) | |
| Tightening torque | 0.4Nm | |
| Dimensions | 90x18x64mm | |
| Weight | 1xSPDT : W240-64g,A230-64g | 2xSPDT:W240-72g,A230-72g |
| Standards | EN61812-1,IEC60947-5-1 |
