GEYA

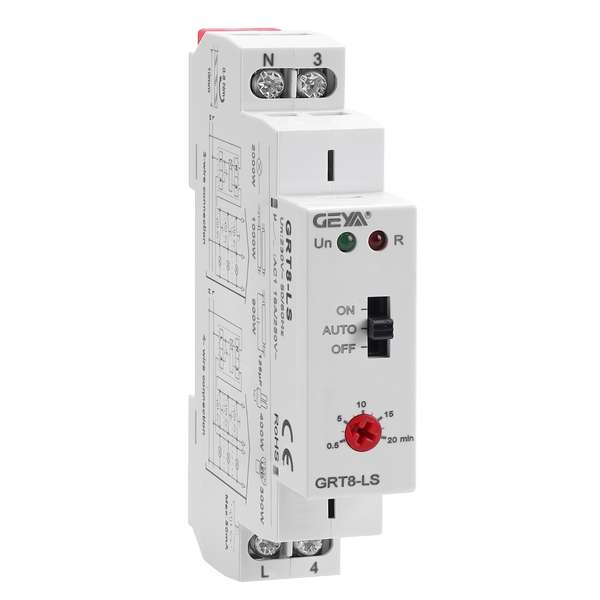

Staircase Switch GRT8-LS
Ռելեներ և կառավարում։ Staircase Switch GRT8-LS։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Technical parameters | GRT8-LS |
| Function | delay off reacting to contact switching |
| Supply terminals | L-N |
| Voltage range | AC 230V(50-60Hz) |
| Power input | AC max.6VA/1.3W |
| Supply voltage tolerance | -15%;+10% |
| Supply indication | green LED |
| Time Ranges | AUTO:0.5-20min ON OFF |
| Time setting | potentiometer |
| Time deviation | 10%-mechanical setting |
| Repeat accuracy | 0.2%-set value stability |
| Minimum power time | 200ms |
| Glow tubes connections | Yes(N-3 or L-3) |
| Max. amount of glow lamps | 230V,max.75pcs(Measured with glow lamp 0.68mA/230V AC) |
| Temperature coefficient | 0.05%/℃,at=20℃(0.05%℉，at=68℉) |
| Output | 1×SPDT |
| Current rating | 16A(AC1) |
| Switching voltage | 250VAC/24VDC |
| Min. breaking capacity DC | 500mW |
| Output indication | red LED |
| Mechanical life | 1×107 |
| Electrical life(AC1) | 1×105 |
| Reset time | max.200ms |
| Operating temperature | -20℃ to+55℃（-4℉to131℉） |
| Storage temperature | -35℃ to+75℃（-22℉to158℉） |
| Mounting/DIN rail | Din rail EN/IEC 60715 |
| Protection degree | IP40 for front panel/IP20 terminals |
| Operating position | any |
| Overvoltage category | III. |
| Pollution degree | 2 |
| Max.cable size(mm 2) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) |
| Tightening torque | 0.8Nm |
| Dimensions | 90×18×64mm |
| Weight | 61g |
| Standards | EN61812-1,IEC 60669-2-3,IEC60947-5-1 |
