GEYA

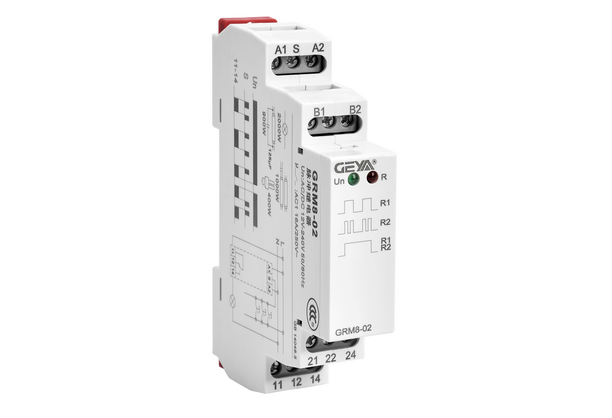

Memory & Latching Relay GRM8-02
Ռելեներ և կառավարում։ Memory & Latching Relay GRM8-02։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Technical parameters | GRM8-01 | GRM8-02 |
| Function | 1 | 2 |
| Supply terminals | A1-A2 | |
| Voltage range | AC/DC 12-240V(50-60Hz) | |
| Burden | AC 0.09-3VA/DC 0.05-1.2W | |
| Voltage range | AC 230V(50-60Hz) | |
| Power input | AC max.12VA/1.3W | AC max.12VA/1.9W |
| Supply voltage tolerance | -15%;+10% | |
| Supply indication | green LED | |
| Control terminals | A1-S | |
| Glow tubes connections | Voltage range: AC 230V Yes(A1-S) | |
| Max.amount of glow lamps | 230V,max.75 pcs(Measured with glow lamp 0.68mA/230V AC) | |
| Impulse length | min.25ms | |
| Temperature coefficient | 0.05%/℃,at=20℃(0.05%℉，at=68℉) | |
| Output | 1×SPDT | 2×SPDT |
| Current rating | 16A(AC1) | |
| Switching voltage | 250VAC/24VDC | |
| Min. breaking capacity DC | 500mW | |
| Output indication | red LED | |
| Mechanical life | 1×107 | |
| Electrical life(AC1) | 1×105 | |
| Reset time | max.200ms | |
| Operating temperature | -20℃ to+55℃（-4℉to131℉） | |
| Storage temperature | -35℃ to+75℃（-22℉to158℉） | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protection degree | IP40 for front panel/IP20 terminals | |
| Operating position | any | |
| Overvoltage category | III. | |
| Pollution degree | 2 | |
| Max.cable size(mm 2) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) | |
| Dimensions | 90×18×64mm | |
| Tightening torque | 0.4Nm | |
| Weight | 1×SPDT:W240-60g,A230-59g | |
| 2×SPDT:W240-84g,A230-82g | ||
| Standards | EN 61810-1 |
