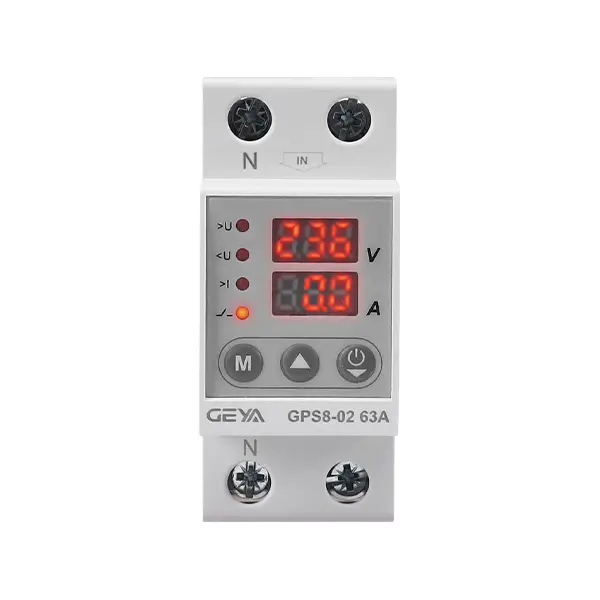

GPS8-02 Over Voltage Protector with Over voltage, Under Voltage and Over Current Functions
Լարման և գերլարման պաշտպանիչներ։ GPS8-02 Over Voltage Protector with Over voltage, Under Voltage and Over Current Functions։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Լարման և գերլարման պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Model | GPS8-02 Over Voltage Protector |
| Function | Over voltage, under voltage and over current |
| Rated supply voltage | AC220V(L-N) |
| Rated supply frequency | 45~65HZ |
| Operation voltage range | 80V~400V(L-N) |
| Rated operational current | 32A,40A,50A,63A,80A（AC1） |
| Burden | AC max.3VA |
| Over voltage operation value | OFF,230V~300V |
| Under voltage operation value | 140V~210V,OFF |
| Over/under voltage action delay | 0.1s~10s |
| Over current operation value | 1~32A,40A,50A,63A,80A |
| Over current action delay | 2s~600s |
| Power-up delay | 2s~600s |
| Reset time | 2s~900s |
| Measurement error | ≤1% |
| Electrical life(AC1) | 1*104 |
| Mechanical life | 1*106 |
| Operating temperature | -20℃ ~ +60℃ |
| Storage temperature | -35℃ ~ +75℃ |
| Mounting/DIN rail | Din rail EN/IEC 60715 |
| Protection degree | IP40 for front panel/IP20 terminals |
| Operating position | any |
| Overvoltage category | Ⅲ |
| Pollution degree | 2 |
| Dimensions | 82×36×68mm |
| weight | 135g |
| Model | GPS8-02 |
| Function | Over voltage, under voltage and over current |
| Rated supply voltage | AC220V(L-N) |
| Rated supply frequency | 45~65HZ |
| Operation voltage range | 80V~400V(L-N) |
| Rated operational current | 32A,40A,50A,63A,80A（AC1） |
| Burden | AC max.3VA |
| Over voltage operation value | OFF,230V~300V |
| Under voltage operation value | 140V~210V,OFF |
| Over/under voltage action delay | 0.1s~10s |
| Over current operation value | 1~32A,40A,50A,63A,80A |
| Over current action delay | 2s~600s |
| Power-up delay | 2s~600s |
| Reset time | 2s~900s |
| Measurement error | ≤1% |
| Electrical life(AC1) | 1*104 |
| Mechanical life | 1*106 |
| Operating temperature | -20℃ ~ +60℃ |
| Storage temperature | -35℃ ~ +75℃ |
| Mounting/DIN rail | Din rail EN/IEC 60715 |
| Protection degree | IP40 for front panel/IP20 terminals |
| Operating position | any |
| Overvoltage category | Ⅲ |
| Pollution degree | 2 |
| Dimensions | 82×36×68mm |
| weight | 135g |
