GEYA

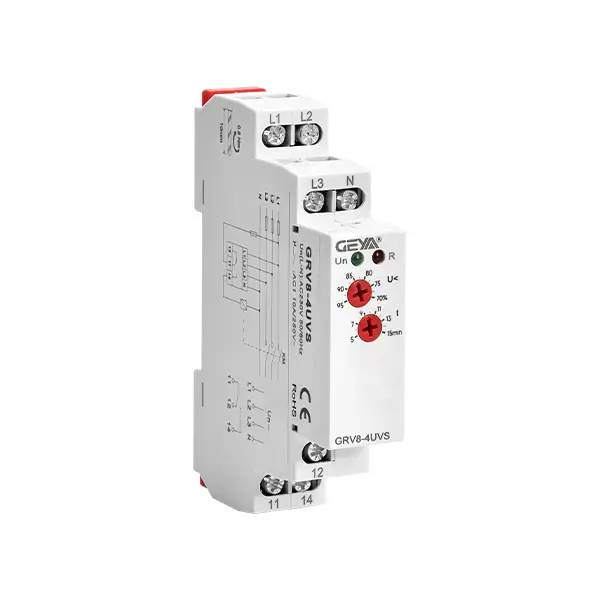

GRV8-4UVS 3 Phase Under Over Voltage Relay
Ռելեներ և կառավարում։ GRV8-4UVS 3 Phase Under Over Voltage Relay։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Model | GRV8-4UVS Three Phase Under Voltage Relay |
| Function | Under voltage |
| Monitoring terminials | L1-L2-L3-N |
| Supply terminals | L1-N |
| Rated supply voltage(Un) | 220V/230V/240V |
| Rated supply frequency | 45Hz-65Hz |
| Under voltage threshold | S:70%-95%of Un |
| Trip delay time(Tu) | 0.1s |
| Hysteresis | 5V |
| Measurement error | ≤1% |
| Power on delay time(Td) | Adjustable: 5min-15min |
| Recovery delay time(Tr) | Adjustable: 5min-15min |
| Konb setting accuracy | 10% of scale value |
| Supply indication | green LED |
| Output indication | red LED |
| Output | 1×SPDT |
| Current rating | 10A/AC1 |
| Switching voltage | 250VAC/24VDC |
| Mechanical life | 1*107 |
| Electrical life(AC1) | 1*105 |
| Operating temperature | -20℃ to +55℃（-4℉ to 131℉） |
| Storage temperature | -35℃ to +75℃（-22℉ to 158℉） |
| Mounting/DIN rail | Din rail EN/IEC 60715 |
| Protection degree | IP40 for front panel/IP20 terminals |
| Operating position | any |
| Overvoltage category | III |
| Pollution degree | 2 |
| Max.cable size(mm²） | solid wire max.1*2.5 or 2*1.5/with sleeve max.1*2.5（AWG 12） |
| Tightening torque | 0.8Nm |
| Dimensions | 90×18×64mm |
| Weight | 63g,65g |
| Standards | EN 60255-1,IEC60947-5-1 |
