GEYA

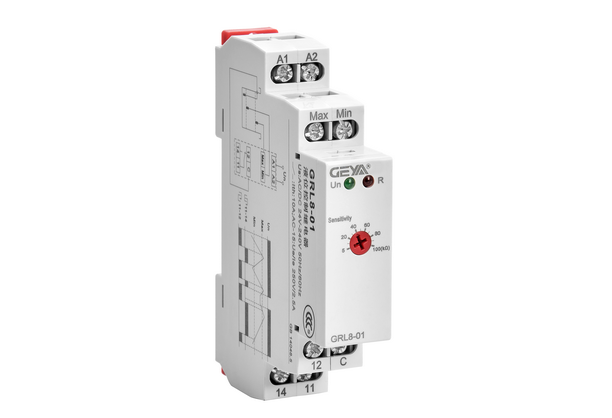

Level Control Relay GRL8-01 02
Ռելեներ և կառավարում։ Level Control Relay GRL8-01 02։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Technical parameters | GRL8-01 | GRL8-02 |
| Function | 2 level contorl mode | 2 or 1 level contorl mode |
| Supply terminals | A1-A2 | |
| Voltage range | AC/DC 24-240V(50-60Hz) | |
| Input | max.2VA | |
| Supply voltage tolerance | -15%;+10% | |
| Sensitivity ( input resistance) | adjustable in range 5 kΩ -100 kΩ | |
| Voltage in electrodes | max. AC 5 V | |
| Current in probe | AC <0.1 mA | |
| Time response | max. 400 ms | |
| Max. capacity length | 800 m (sensitivity 25kΩ), 200 m (sensitivity 100 kΩ) | |
| Max. capacity of probe cable | 400 nF (sensitivity 25kΩ), 100 nF (sensitivity 100 kΩ) | |
| Time delay (t) | adjustable, 0.1 -10 s | |
| Accuracy in setting (mechanical) | ± 10 % | |
| Temperature coefficient | 0.05%/℃,at=20℃(0.05%℉，at=68℉) | |
| Output | 1×SPDT | |
| Current rating | 1×10A(AC1) | |
| Switching voltage | 250VAC/24VDC | |
| Min.breaking capacity DC | 500mW | |
| Output indication | red LED | |
| Mechanical life | 1×107 | |
| Electrical life(AC1) | 1×105 | |
| Reset time | max.200ms | |
| Operating temperature | -20℃ to+55℃（-4℉to131℉） | |
| Storage temperature | -35℃ to+75℃（-22℉to158℉） | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protection degree | IP40 for front panel/IP20 terminals | |
| Operating position | any | |
| Overvoltage cathegory | III. | |
| Pollution degree | 2 | |
| Max.cable size(mm 2) | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) | |
| Tightening torque | 0.8Nm | |
| Dimensions | 90×18×64mm | |
| Weight | 70g | 72g |
| Standards | EN 60255-1 |
