GEYA

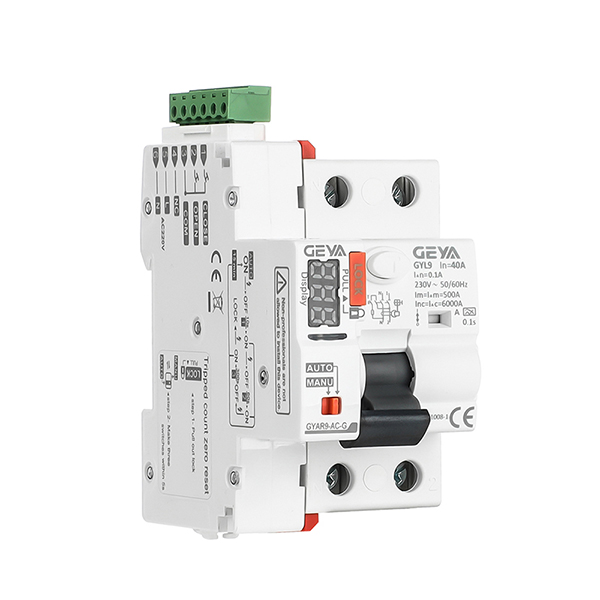

GYAR9-AC-TY-GYL9 Smart Auto Recloser
Ավտոմատներ և պաշտպանիչներ։ GYAR9-AC-TY-GYL9 Smart Auto Recloser։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Standard | EN 50155, GB/T 24338.4-2018, EN 45545-2, IEC 61373 |
| Adaption | Acti9 Series 1P-4 |
| Electrical Characteristics | |
| Operating Voltage | 230V AC（70%~125%） 24-48V DC(optional) |
| Control signal | MODBUS-RS485 Wet node 230V high level/pulse signal (optional) |
| Over&Under voltage function | 160-275V ±5V (optional) |
| Timing function | Available (optional) |
| Digital display | 3-digit voltage, switching times, fault status |
| Effective control signal duration | >400ms |
| Closing action time | < 1s |
| Opening action time | < 0.5s |
| Control circuit cable length | ≤1500m |
| Current-carrying capacity of auxiliary contacts (terminals 8-9-10) | 1CO, minimum operating current 3mA (24VDC) (resistive) (optional) |
| Current-carrying capacity of signaling contacts (terminals 5-6-7) | Maximum operating current 2A (30V DC), 0.5A (125V AC) (optional) |
| Power consumption | ≤ 1.5VA (static); ≤25VA (dynamic) |
| Rated insulation voltage | 400V |
| Rated Impulse Withstand Voltage Uimp | |
| (between S2C-RM DC and MCB) | 4kV (4.9kV at sea level) |
| Self-locking protection | Within 10s of 3CO / 20s of 4CO / 30s of 6CO, the product will self-lock and recover automatically after 40s. |
| Electrical life | 10000 times, 3 times/minute |
| Mechanical Characteristics | |
| Indicator Light | Green, Normal status |
| Red, MCB overcurrent fault | |
| Auto/Manual switching | Auto Remote control of opening&closing available |
| Manual Remote control of opening&closing disabled | |
| Mechanical life | 10000 |
| Protection class | Ip20 |
| Hazard class according to EN 45545-2 | EN 45545-2 R26 /HL3 |
| Shock and vibration resistance According to IEC 61373 | category 1 – class A/B – body mounted |
| Resistance to heat and humidity IEC/EN 60068-2-30 | 28 cycles (55°C/90-96 % , 25°C/95-100 %) |
| Ambient Temperature | -25…+70℃ |
| Storage Temperature | -40…+70℃ |
| Installation and Wiring | |
| Power and control signal terminal wiring capacity | 28-12AWG 2.5mm² |
| Auxiliary signal terminal wiring capacity | 28-14AWG 1.5mm² |
| DIN rail mounting | DIN rail EN 60715 (35 mm) |
| Mounting position | Mounting on DIN rail Any position |
