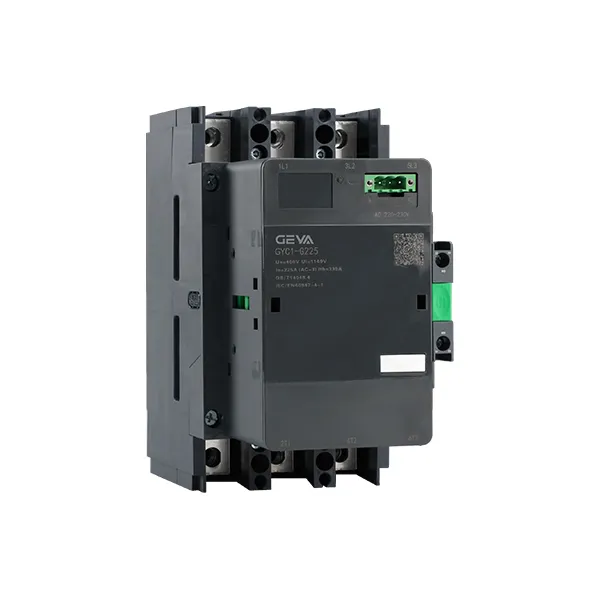

GYC1-G 115A to 800A AC Contactor

Կոնտակտորներ և փոխարկիչներ։ GYC1-G 115A to 800A AC Contactor։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։

Բրենդ	GEYA
Ապրանքային խումբ	Կոնտակտորներ և փոխարկիչներ

Տեխնիկական բնութագրեր

Accessory	Description	Compatible Models
Interlocking Module (ZF9G970)	Used for forward/reverse control	G115-G800
Protective Cover (IP20)	Enhances safety protection	2F9G3701 (G115-G225), 2F9G3702 (G265-G500), 2F9G3703 (G630-G800)
Terminal Extender	Increases wiring clearance (e.g., 35→45 mm)	LA9G3711 (G115-G225)
Cable Terminal	Supports 120 mm² to 300 mm² wire sizes	Lv429252 (120 mm²), Lv432502 (300 mm²)
Phase Partition	4 pieces per unit	LA9G3801 to LA9G3803
Connection Kits	Forward/reverse, star-delta, dual power connection kits	LA9G3760 (G115-G225 forward/reverse kit)

Contactor model	G115	G150	G185	G225	G265	G330	G400	G500	G630	G800
The dissipation power consumption per pole of the working current is calculated	AC-3	W	3	5	6	8	11	16	16	20	26	42
AC-1	W	10	10	20	20	20	30	30	40	70	70
Connections/ wiring (maximum cross section)	Line up	Number of wires		2	2	2	2	2	2	2	2	2	2
Wire size	mm	25X6	25X6	25X6	25X6	32X10	32X10	32X10	32X10	52X20	52X20
Cable with wiring sheet	mm	185	185	185	185	240	2X150	2X185	2X240	–	–
Cable with connector	mm	185	185	185	185	240	–	–	–	–	–
Diameter of bolt	mm	M8	M8	M8	M8	M10	M10	M10	M10	M12	M12
Secure torque	The circuit is connected	N.m	18	18	18	18	35	35	35	35	58	58
Nominal control voltage	V	AC(50/60Hz):110V、220V、380V； AC/DC:48-130V、100-250V、200-500V
Control voltage range	Pull-in voltage	V	0.85UcMin…1.1UcMax
Release voltage	V	0.2UcMin…0.55UcMax
Average power consumption	AC (50/60Hz) Dual coil	Actuation	VA	≤450	≤450	≤450	≤450	≤650	≤650	≤650	≤650	≤800	≤800
keep	VA	≤18	≤18	≤18	≤18	≤18	≤18	≤18	≤18	≤18	≤18
AC/DC wide voltage	Actuation	VA	≤350	≤350	≤350	≤350	≤500	≤500	≤500	≤500	≤500	≤500
keep	VA	≤18	≤18	≤18	≤18	≤18	≤18	≤18	≤18	≤18	≤18
Actuation time	AC (50/60Hz) Dual coil	Close “C”	ms	30..60	30..60	30..60	30..60	40..70	40..70	40..70	40..70	40..70	40..70
Break “O”	ms	30..60	30..60	30..60	30..60	40..70	40..70	40..70	40..70	40..70	40..70
AC/DC wide voltage	Close “C”	ms	40..70	40..70	40..70	40..70	40..70	40..70	40..70	40..70	40..70	40..70
Break “O”	ms	15..50	15..50	15..50	15..50	15..50	15..50	15..50	15..50	15..50	15..50
Mechanical life under Uc	Millions		8	8	8	8	8	8	8	8	8	8
Maximum operating frequency	Hourly operating cycle	AC-1		300	300	300	300	300	300	300	300	300	300
AC-3		500	500	500	500	500	500	500	500	500	500
AC-4		150	150	150	150	150	150	150	150	150	150
Coil control, intelligent module, PLC connection line			Minimum/maximum section
flexible	One wires with terminals	mm	0.25 … 2.5
Two wires with terminals	mm	0.5 … 1
Solid line	One wire	mm	0.2 … 2.5
Length of stripping	mm	12
