GEYA

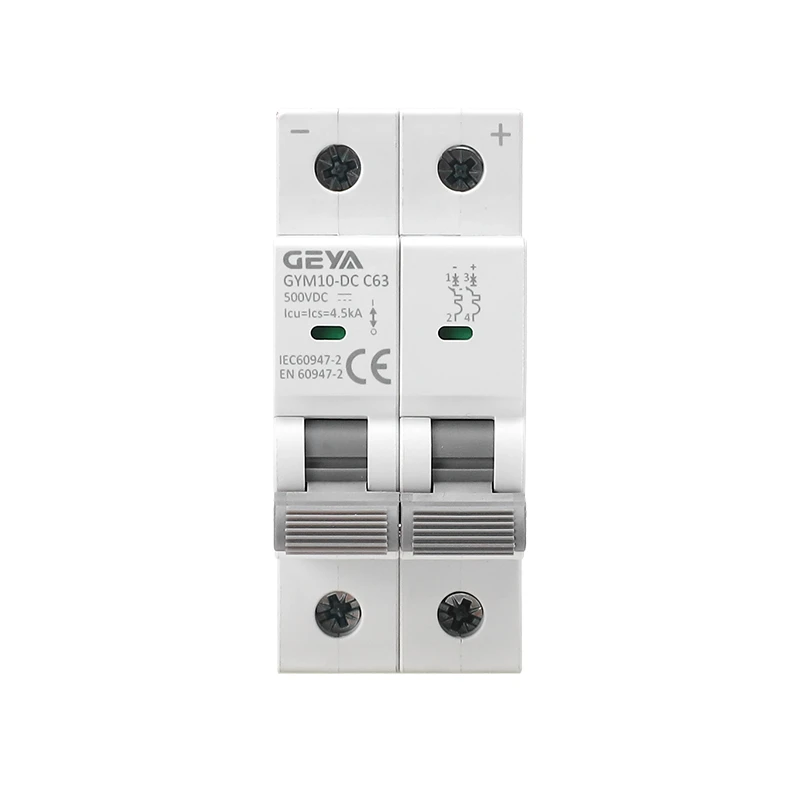

GYM10-DC 6-63A 1P-4P DC Miniature Circuit Breaker
Արևային և էներգիայի կուտակում։ GYM10-DC 6-63A 1P-4P DC Miniature Circuit Breaker։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Արևային և էներգիայի կուտակում |
Տեխնիկական բնութագրեր
| GYM10 | H | DC |
| Product model (MCB) | T: Single busbar H: Double flow discharge | Direct Current version |
| Dimension | 1P | 2P | 3P | 4P |
| Width (mm) | 18 | 36 | 54 | 72 |
| Height (mm) | 86.5 ± 0.3 (mounted on 35 mm DIN rail) | |||
| Depth (mm) | 80 (overall) / 50 (front protrusion) | |||
| DIN-rail Slot (mm) | 45 |
| Parameter | Specification |
| Model | GYM10-DC (also marked GYM10H-DC) |
| Product Type | DC Miniature Circuit Breaker (DC MCB) |
| Standards | IEC/EN 60947-2, GB/T 14048.2 |
| Rated Current (In) | 6, 10, 16, 20, 25, 32, 40, 50, 63 A |
| Rated Voltage (Ue) | 1P: 250VDC · 2P: 500VDC · 3P: 750VDC · 4P: 1000VDC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Breaking Capacity (Icu) | 4.5 kA |
| Tripping Curves | B: (6±20%)In · C: (8.5±20%)In · D: (12±20%)In |
| Poles | 1P / 2P / 3P / 4P |
| Mechanical Life | 20,000 operations |
| Electrical Life | 4,000 operations |
| Tightening Moment | 2.0 N·m |
| Wiring Capacity | 0.5 – 25 mm² |
| Protection Class | IP20 |
| Arc Extinguishing | 11-fin cross DC arc chute + magnetic-blow design |
| Mounting | 35 mm standard DIN-rail |
| Environmental | RoHS 2.0 compliant |
| Indicator | Contact position indication window |
| Wiring Function | Dual-flow discharge wiring |
| Ambient Temp. | -20°C | -10°C | 0°C | 10°C | 20°C | 30°C | 40°C | 50°C | 60°C |
| Correction Factor | 1.25 | 1.20 | 1.15 | 1.10 | 1.05 | 1.00 | 0.95 | 0.90 | 0.85 |
| Curve | Magnetic Trip Range | Typical Application |
| B | (6 ± 20%) × In | Resistive loads, long cable runs, low inrush DC circuits |
| C | (8.5 ± 20%) × In | General DC circuits, PV strings, telecom DC loads (most common) |
| D | (12 ± 20%) × In | High inrush loads, DC motors, capacitive battery banks |
