GEYA

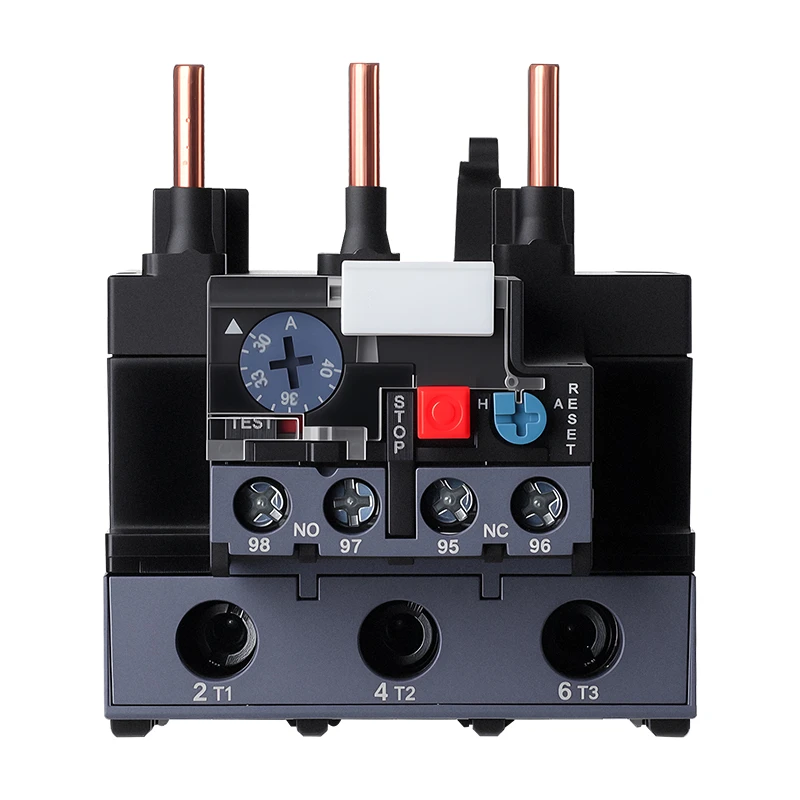

LR2-D33 Thermal Overload Relay
Ռելեներ և կառավարում։ LR2-D33 Thermal Overload Relay։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Technical Item | LR2-D33 Parameter |
| Rated Operation Current A | 93A |
| Rated Insulation Voltage V | 690V |
| Phase Failure Protection | Yes |
| Manual & Automatic Reset | Yes |
| Temperature Compensation | Yes |
| Motion Indication & Test Button | Yes |
| Mounting Type | Plug-in / Independent type |
| Auxiliary Contacts | 1NO + 1NC |
| AC-15 Rated Current (220V / 380V) | 2.73A / 1.58A |
| DC-13 Rated Current (220V) | 0.2A |
| Main Circuit Conductor Area | 4~35 mm² (Terminal Screws: M10) |
| Auxiliary Circuit Conductor Area | 0.5~2.5 mm² (Terminal Screws: M3.5) |
| Model | NO. | Rectification Current Range (A) | Fuse (A) | Matching Contactor Model | |
| aM | gG | ||||
| LR2-D33 | 3322 | 17~25 | 25 | 50 | GLC1-40~95 |
| 3353 | 23~32 | 40 | 63 | ||
| 3355 | 30~40 | 40 | 100 | ||
| 3357 | 37~50 | 63 | 100 | ||
| 3359 | 48~65 | 63 | 100 | ||
| 3361 | 55~70 | 80 | 125 | ||
| 3363 | 63~80 | 80 | 125 | ||
| 3365 | 80~93 | 100 | 160 |
| Action Time When Three-Phase Load is Balanced | ||||
| No. | Rectification Current Multiplier | Motion Time | Starting Condition | Environmental Temp |
| 1 | 1.05 | > 2h | Cold state | 20 ± 5°C |
| 2 | 1.2 | < 2h | Hot state (after test of No. 1) | |
| 3 | 1.5 | < 4min | ||
| 4 | 7.2 | 10A: 2s < Tp ≤ 10s 10: 4s < Tp ≤ 10s | Cold state |
