GEYA

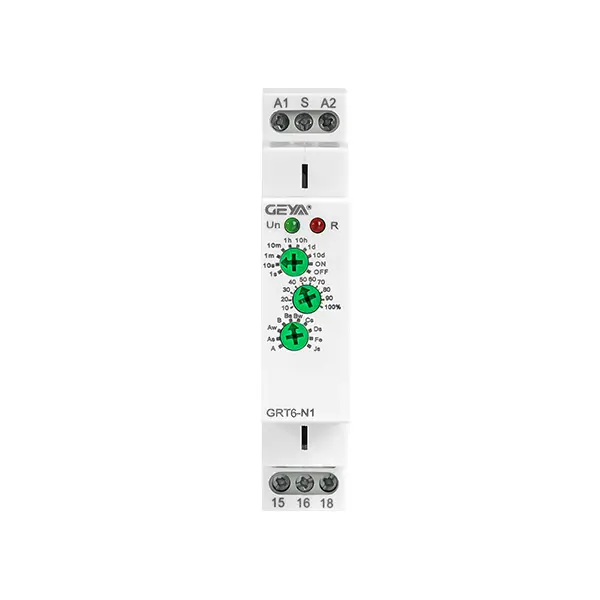

GRT6-N Multifunctional Timer Relay
Ռելեներ և կառավարում։ GRT6-N Multifunctional Timer Relay։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ռելեներ և կառավարում |
Տեխնիկական բնութագրեր
| Model | GRT6-N1 | GRT6-N2 |
| Function | A,As,Aw,B,Bs,Bw,Cs,Ds,Fe,Js | |
| Supply terminals | A1-A2 | |
| S240:Voltage range | AC/DC 24-240V(50-60Hz) | |
| S240:Burden | AC 0.7-3VA/DC 0.5-1.7W | |
| A230:Voltage range | AC 230V(50-60Hz) | |
| A230：Power input | AC max.6VA/1.3W | AC max.6VA/1.9W |
| Supply voltage tolerance | -15%;+10% | |
| Supply indication | green LED | |
| Time ranges | 0.1s-10days,ON,OFF | |
| Time setting | potentionmeter | |
| Time deviation | 10%-mechanical setting | |
| Repeat accuracy | 0.2%-set value stability | |
| Temperature coecient | 0.05% /℃,at=20℃(0.05%℉，at=68℉) | |
| Output | 1×SPDT | 2×SPDT |
| Current rating | 10A/AC1 | |
| Switching voltage | 250VAC/24VDC | |
| Min.breaking capacity DC | 500mW | |
| Output indication | red LED | |
| Mechanical life | 1*107 | |
| Electrical life(AC1) | 1*105 | |
| Reset time | max.200ms | |
| Operating temperature | -20℃ to +55℃（-4℉ to 131℉） | |
| Storage temperature | -35℃ to +75℃（-22℉ to 158℉） | |
| Mounting/DIN rail | Din rail EN/IEC 60715 | |
| Protection degree | IP40 for front panel/IP20 terminals | |
| Operating position | any | |
| Overvoltage cathegory | III. | |
| Pollution degree | 2 | |
| Max.cable size(mm²） | solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG 12) | |
| Tightening torque | 0.4Nm | |
| Dimensions | 90×18×64mm | |
| Weight | 1×SPDT:S240-53g,A230-55g | |
| 2×SPDT:S240-66g,A230-69g | ||
| Standards | EN 61812-1,IEC60947-5-1 |
