GEYA

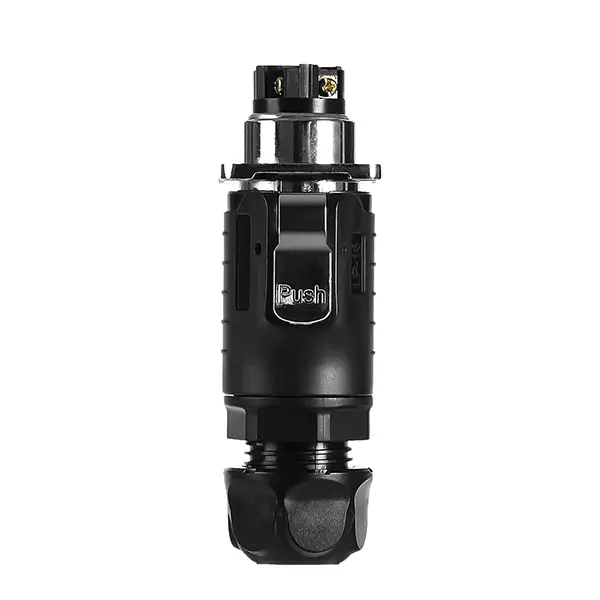

LP Multi-application Waterproof Connectors
Պարագաներ և այլ սարքեր։ LP Multi-application Waterproof Connectors։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Պարագաներ և այլ սարքեր |
Տեխնիկական բնութագրեր
| LP-12 Series Information Overview | |
| Product Application Type: | Power supply: 2 cores |
| Signal:- | |
| Rated voltage: 125V (2 cores) | Rated current: 5A (2 cores) |
| Multi-PIN type: | Applicable wire diameter: Φ3.5~4.5mm, Φ4.5~5.5mm, Φ5.5~6.5mm |
| LP-16 Series Information Overview | |
| Product Application Type: | Power supply: 2/3/4/ |
| Signal: 5 core | |
| Rated voltage: 400V (2~4 core), 250V (5 core); Rated current: 10A (2~3 core), 5A (4~5 core) | |
| Multi-PIN type: | Applicable wire diameter: Φ3.0-5.0mm, Φ5.0~7.0mm, Φ7.0~9.0mm |
| LP-20 Series Information Overview | |
| Product Application Type: | Power supply: 2/3/4/5 cores |
| Signal: 5 core | |
| Rated voltage: 500V (2~5 core), 300V (5 core); Rated current: 25A (2~4 core), 10A (5 core)，5A（5core） | |
| Multi-PIN type: | Applicable wire diameter:Φ5.0~6.5mm，Φ6.5~8.5mm，Φ8.5~10.0mm，Φ10.0~12.0mm |
| LP-24 Series Information Overview | |
| Product Application Type: | Power supply: 2/3/4/5/6 cores |
| Signal: 5/6 cores | |
| Rated voltage: 500V (2~4 core), 300V (2~3 core)，230V (3 core); Rated current: 25A (2~4 core), 10A (5 core)，5A（5core） | |
| Multi-PIN type: | Applicable wire diameter: Φ5.0~7.0mm, Φ7.0~10.5mm, Φ10.5~14.0mm |
