GEYA

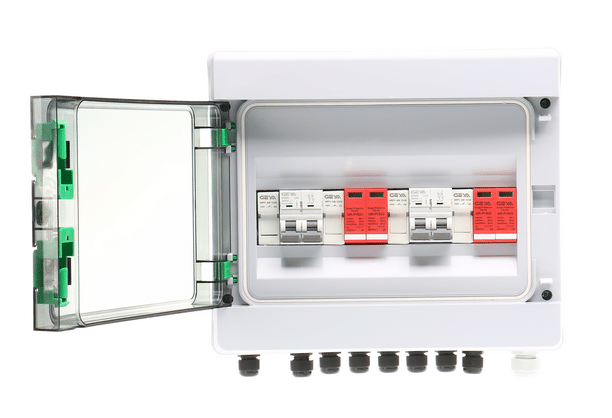

GYPV/2-1 DC Combiner Box
Արևային և էներգիայի կուտակում։ GYPV/2-1 DC Combiner Box։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Արևային և էներգիայի կուտակում |
Տեխնիկական բնութագրեր
| This configuration is for reference only. Please contact us if you need customization | ||
| No | Material Description | Quantity |
| 1 | Distribution box HA-8 way-10 hole | 1 |
| 2 | Cable gland | 10 |
| 3 | GYM9DC-2P-20A MCB | 1 |
| 4 | GYPV-32 1000VDC Fuse base | 4 |
| 5 | GYPV-1038 1000VDC Fuse | 4 |
| 6 | GSP9-C40PV 600VDC 40kA SPD | 1 |
| 7 | Busbar 1P-12 | |
| 8 | Conductor |
| This configuration is for reference only. Please contact us if you need customization | ||
| No | Material Description | Quantity |
| 1 | Distribution box HA-12 way-9 hole | 1 |
| 2 | Cable gland | 9 |
| 3 | GYM9DC-4P-32A MCB | 1 |
| 4 | GYPV-32 1000VDC Fuse base | 4 |
| 5 | GYPV-1038 1000VDC Fuse | 4 |
| 6 | GSP9-C40PV 1000VDC 40kA SPD | 1 |
| 7 | Busbar 1P-12 | |
| 8 | Conductor |
| Name | GYPV/2-1 | |
| Electric parameter | ||
| System maximum dc voltage | 550 | 1000 |
| Maximum input current for each string | 15A | |
| Maximum input strings | 2 | |
| Maximum output switch current | 20A/32A | |
| Number of inverter MPPT | 1 | |
| Number of Output strings | 1 | |
| Lightning protection | ||
| Category of test | Ⅱ grade protection | |
| Nominal discharge current | 20kA | |
| Maximum discharge current | 40kA | |
| Voltage protection level | 2.8KV | 3.8KV |
| Maximum continuous operating voltage Uc | 630V | 1050V |
| Poles | 2P | 3P |
| Structure characteristic | Plug-push module | |
| System | ||
| Protection grade | IP65 | |
| Output switch | Dc isolation switch(standard)/DC circuit breaker(optional) | |
| MC4R Waterproof Connectors | Standard | |
| PV dc fuse | Standard | |
| PV surge protector | Standard | |
| Monitoring module | Optional | |
| Preventing diode | Optional | |
| Box material | PVC | |
| Installation method | Wall mounting type | |
| Operating Temperature | -25℃~+55℃ | |
| Elevation of temperature | 2km | |
| Permissible relative humidity | o-95% , no condensation | |
| Mechanical parameter | ||
| Width x High x Depth ( mm ) | 300×260×140 |
