GEYA

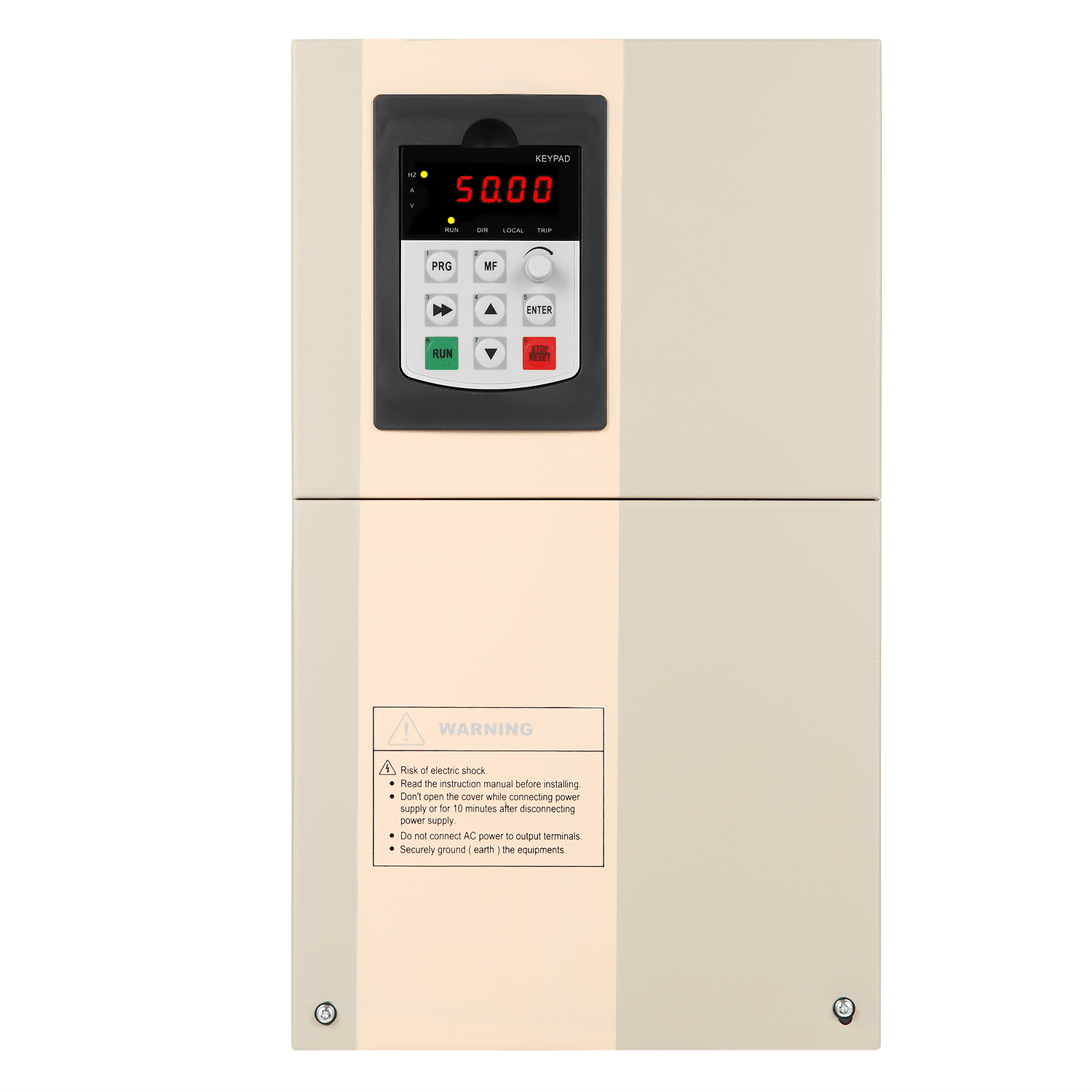

Solar Pump Inverter PH380
Արևային և էներգիայի կուտակում։ Solar Pump Inverter PH380։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Արևային և էներգիայի կուտակում |
Տեխնիկական բնութագրեր
| Recommended MPPT voltage range | Vmpp 280 to 375VDC for the 2S model ( 150V to 450VDC input, 3PH 220 to 240VAC output) |
| Vmpp 486 to 750 VDC for 4T model ( 250V to 800VDC input, 3PH 380 to 440VAC output) | |
| Recommended input voltage (Voc and Vmpp) | Voc 355V DC, Vmpp 310V DC for 2S model or 220V AC pumps |
| Voc 620V DC, Vmpp 540V DC for 4T model or 380V AC pumps | |
| Motor type | Control for permanent magnet synchronous motor(PMSM) and asynchronous motor(AM) |
| Input power | DC power from solar arrays or AC grid power |
| Maximum DC power input | 450VDC for 220V AC Pump / 800VDC for 380V AC Pump |
| Rated output voltage | 3-phase 220V or 3-phase 380V/440V |
| Output frequency range | 0-50/60Hz |
| MPPT efficiency | 99.60% |
| Ambient temperature range | -10℃ TO 50℃ |
| Solar pump control special performance | MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating |
| Protection function | Phase loss protection, phase short circuit protection, ground to phase circuit protection, input and output short circuit protection. Stall protection |
| Protection degree | IP20-Air force cooling |
| Running mode | MPPT, CVT, variable frequency mode |
| Altitude | Below 1000m; above 1000m, derated 1% for every additional 100m |
| Standard | CE certificate.Design based on vector control inverter |
