GEYA

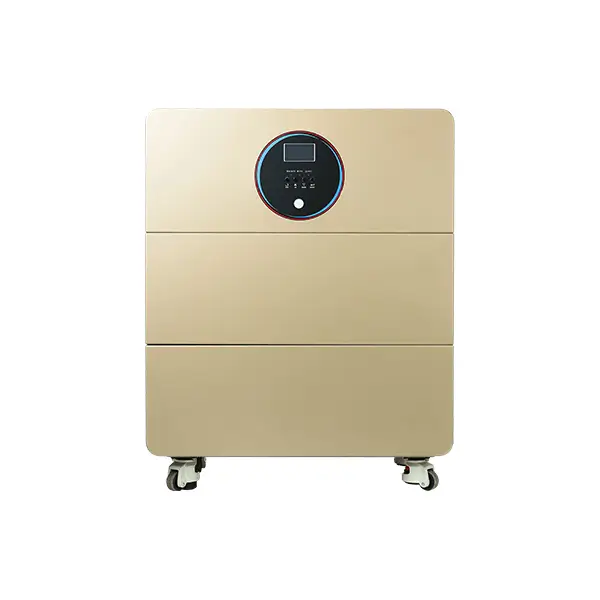

All In One Energy Storage System 3KW-12KW 220/230/240V AC
Արևային և էներգիայի կուտակում։ All In One Energy Storage System 3KW-12KW 220/230/240V AC։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Արևային և էներգիայի կուտակում |
Տեխնիկական բնութագրեր
| Model | 3000W | 3600W | 4000W | 5000W | 6200W | 11000W | ||
| Input | Input Sources | L+N+PE | ||||||
| Rated Input Voltage | 220/230/240VAC | |||||||
| Voltage Range | 90-280VAC±3V（APL Mode）170-280VAC±3V（UPS Mode） | |||||||
| Frequency | 50Hz/60Hz（Auto Adaptive） | |||||||
| Output | Rated power | The battery inverts | 3000W | 3600W | 4000W | 5500W | 6200W | 11000W |
| Photovoltaic inverter | 3000W | 4500W | 4500W | 6500W | 6500W | 11000W | ||
| Output Voltage | 220/230/240VAC±5% | |||||||
| Output Frequency | 50/60Hz±0.1% | |||||||
| Waveform | Pure Sine Wave | |||||||
| Transfer Time（adjustable） | Computers（UPS Mode）10ms，Appliance（APL Mode）20ms | |||||||
| Peak Power | 6000VA | 7200VA | 8000VA | 11000VA | 12400VA | 22000VA | ||
| Overload Capacity | Battery mode 11s@105%~150% Load；2s@150%~200% Load；400ms@＞200% Load | |||||||
| Grid-connect operation | Output Voltage | 220/230/240VAC±5% | ||||||
| Feed into the grid voltage range | 195-253VA | |||||||
| Feed into the grid frequency range | 49-51±1Hz/59-61±1Hz | |||||||
| Nominal Output current | 13A | 15.7A | 17.4A | 23.9A | 26.9A | 47.8A | ||
| Power factor range | ＞0.99 | |||||||
| Maximum conversion efficiency（DC/AC） | 98% | |||||||
| Battery | Battery Voltage | 24V dc | 24V dc | 24V dc | 48V dc | 48V dc | 48V dc | |
| Constant Charging Voltage（Adjustable） | 28.2V dc | 28.2V dc | 28.2V dc | 56.4V dc | 56.4V dc | 56.4V dc | ||
| Floate Charging Voltage（Adjustable） | 27V dc | 27V dc | 27V dc | 54V dc | 54V dc | 54V dc | ||
| Chargers | PV Charging Mode | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT | |
| MAX.PV Input Power | 5000W | 5000W | 6500W | 8500W | 8500W | 2*5500W | ||
| MPPT Tracking Range | 60-500Vdc | |||||||
| Best Voltage | 300-400V | 300-400V | 300-400V | 300-400V | 300-400V | 300-400V | ||
| MAX.PV Input Voltage | 500Vdc | 500Vdc | 500Vdc | 500Vdc | 500Vdc | 500Vdc | ||
| PV Max Input Current | 18A | 18A | 27A | 27A | 27A | 18A/18A | ||
| MAX.PV Charging Current | 100A | 120A | 120A | 100A | 120A | 150A | ||
| MAX.AC Charging Current | 60A | 100A | 100A | 100A | 100A | 150A | ||
| MAX.Charging Current | 100A | 120A | 120A | 100A | 120A | 150A | ||
| Display | LCD interface | CAN display running mode/load/input/output,etc. | ||||||
| Interface | RS232 | Baud Rate 2400 | ||||||
| Extend the socket communication interface | Lithium Battery BMS Communication Card WifiCard,Dry Contact | |||||||
| Parallel machine interface | No Parallel Function | Parallel Machine（network） Function | ||||||
| Environment | Operating Temperature | -10~50℃ | ||||||
| Humidity | 20%~95%（Non-condensing) | |||||||
| Storage Temperature | -15~60℃ | |||||||
| Altitude | Altitude Not Over 1000m，Derating over 1000m，Max 4000m | |||||||
| Noise | ≤50db |
