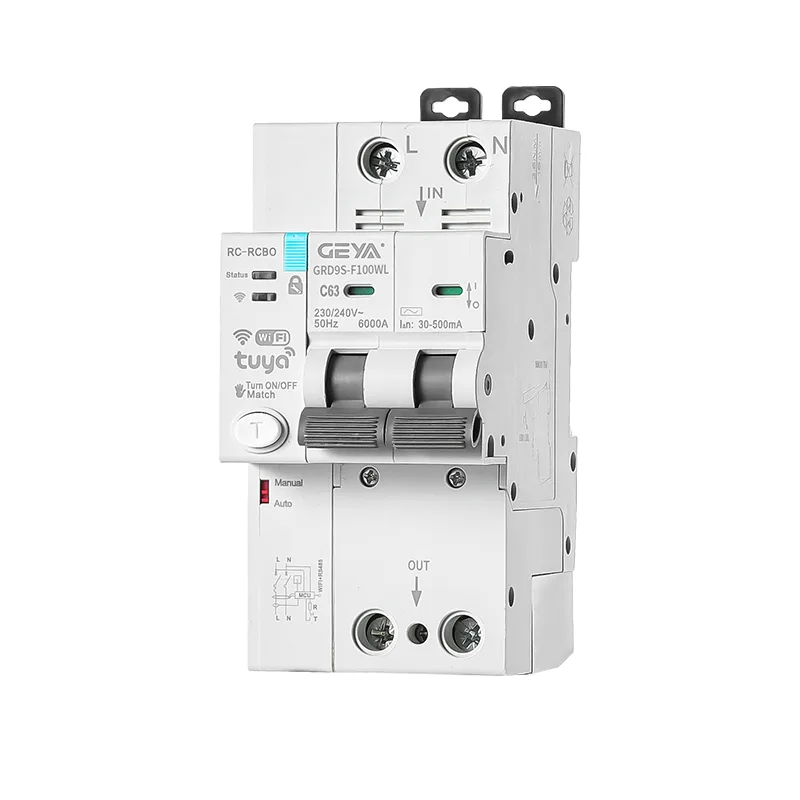

GRD9S-F100WL 2~4P Smart RCBO with WiFi Control
Ավտոմատներ և պաշտպանիչներ։ GRD9S-F100WL 2~4P Smart RCBO with WiFi Control։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| No. | Function | Action Type | Setting Range | Default |
| 1 | Over Voltage | Off/Alarm/Trip | 250V – 350V | 280V |
| 2 | Under Voltage | Off/Alarm/Trip | 110V – 200V | 165V |
| 3 | Overload | Off/Alarm/Trip | 0.6In – In | In |
| 11 | Leakage Protection | Off/Alarm/Trip | 30/50/100/200/300/500mA | 50mA |
| 19 | Sudden Leakage | Off/On | 30 – 100mA | 30mA |
| 5 | Over Temp | Off/Alarm/Trip | 60°C – 100°C | 80°C |
| 6 | Phase Loss (3P/4P) | Off/Alarm/Trip | 10V – 100V | 30V |
| 9 | Over Power | Off/Alarm/Trip | 5kW – 50kW | 2kW |
| 12 | Volt. Unbalance | Off/Alarm/Trip | 5% – 30% | 20% |
| 21 | Power-on Delay | Off/On | 1s – 60s | 3s |
| Item | Specification (GRD9S-F100WL) |
| Standards | GBT16917.1, CQC1149 |
| Poles | 2P (Single Phase) / 3P, 4P (Three Phase) |
| Rated Voltage | AC 230V (2P) / AC 400V (3P, 4P) 50Hz |
| Rated Current (In) | Selectable: 20A, 32A, 63A, 100A |
| Tripping Curve | Type B, Type C, Type D |
| Short Circuit Capacity | Icu = Ics = 6kA |
| Leakage Type | Type AC, Type A, Type B |
| Leakage Action Time | < 40ms |
| Switching Time | Closing < 1.5s | Opening < 1.0s |
| Life Span | Mechanical: >20,000 times | Electrical: >6,000 times |
| Communication | TUYA/ESP WIFI, Zigbee, Bluetooth |
| Energy Metering | Yes (Class 1.0 Accuracy) |
| Working Temperature | -40°C ~ 70°C |
