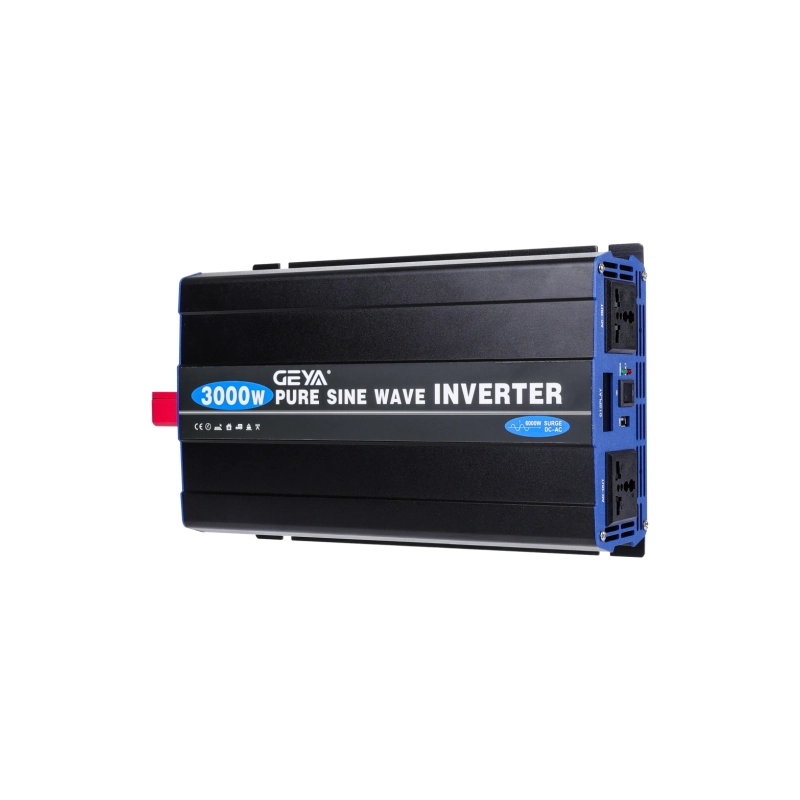

| Parameter / Model | GINV-YPiW 1000W | GINV-YPiW 1500W | GINV-YPiW 2000W | GINV-YPiW 3000W |
| Input Specifications |
| Rated DC Voltage | Available in 12V, 24V, or 48V options |
| DC Voltage Range | 12V: 10-15.5V | 24V: 20-31V | 48V: 40-62V |
| No Load Current Draw | 0.7A / 0.3A / 0.2A | 0.7A / 0.4A / 0.2A | 0.75A / 0.4A / 0.2A | 1.0A / 0.6A / 0.3A |
| Max Efficiency | 92% |
| Output Specifications |
| Continuous Power | 1000W | 1500W | 2000W | 3000W |
| Surge Power (Peak) | 2000W | 3000W | 4000W | 6000W |
| Output Voltage | 100/110/120VAC or 220/230/240VAC |
| Waveform | Pure Sine Wave (THD ≤3%) |
| Frequency | 50Hz or 60Hz |
| USB Output | 5V, 2A |
| Protection Thresholds |
| Low Voltage Alarm | 12V: 10.5±0.5V | 24V: 21.0±1V | 48V: 42.0±1V |
| Low Voltage Shutdown | 12V: 10.0±0.5V | 24V: 20.0±1V | 48V: 40.0±1V |
| Over Voltage Shutdown | 12V: 15.5±0.5V | 24V: 31.0±1V | 48V: 62.0±1V |
| Auto Shut-off Triggers | Short Circuit, Overload, Over Thermal |
| Physical & Environment |
| Working Temp | -20°C ~ +60°C |
| Machine Size (mm) | 240*142*65 | 240*183*81 | 275*183*81 | 315*183*81 |
| Net Weight (kg) | 1.20 | 1.80 | 2.16 | 2.62 |
