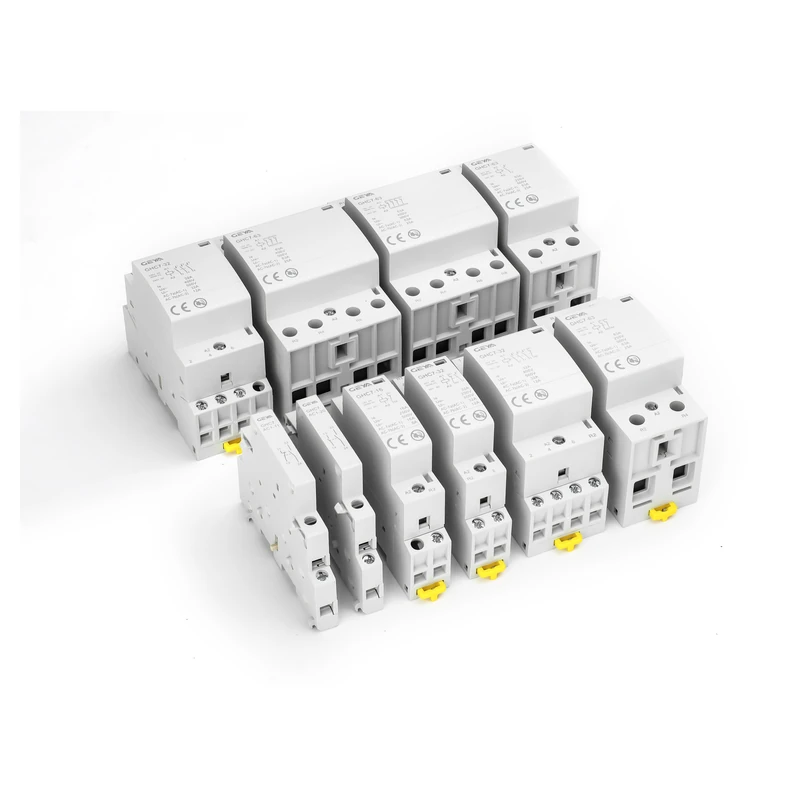

GHC7 Hum-Free Modular Contactor 16A-63A 1P-4P
Կոնտակտորներ և փոխարկիչներ։ GHC7 Hum-Free Modular Contactor 16A-63A 1P-4P։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Կոնտակտորներ և փոխարկիչներ |
Տեխնիկական բնութագրեր
| GHC7 model current | AC-7a / AC-1 | AC-7b / AC-3 |
| 16 A | 16 A | 6 A |
| 20 A | 20 A | 7 A |
| 25 A | 25 A | 9 A |
| 32 A | 32 A | 12 A |
| 40 A | 40 A | 18 A |
| 63 A | 63 A | 25 A |
| Pole count | Contact-code options | Contact arrangement |
| 1P | /10, /01 | 1NO; 1NC |
| 2P | /20, /11, /02 | 2NO; 1NO+1NC; 2NC |
| 3P | /30, /03 | 3NO; 3NC |
| 4P | /40, /04, /22, /31 | 4NO; 4NC; 2NO+2NC; 3NO+1NC |
| Parameter | GHC7 specification |
| Main circuit | AC, 50/60 Hz |
| Rated operational voltage Ue | 1P/2P: 250 VAC; 3P/4P: 400 VAC |
| Frame-current range | 16, 20, 25, 32, 40 and 63 A; apply the utilization-category ratings below |
| Poles | 1P, 2P, 3P, 4P |
| Coil/control voltage Uc | 12/24/48/110/230 V AC/DC |
| Utilization categories | AC-7a / AC-1; AC-7b / AC-3 |
| Rated insulation voltage Ui | 500 VAC |
| Mechanical endurance | 1,000,000 operations |
| Electrical endurance | 100,000 operations |
| Maximum switching operations | 100 per day |
| Protection degree | IP20 device; IP40 when installed in a suitable modular enclosure |
| Temperature | Operating: -5°C to +60°C; storage: -40°C to +70°C |
| Pollution degree | 2 |
| Mounting | 35 mm DIN rail; vertical orientation within ±30° |
| Model current | AC-7a / AC-1 | AC-7b / AC-3 |
| 16 A | 16 A | 6 A |
| 20 A | 20 A | 7 A |
| 25 A | 25 A | 9 A |
| 32 A | 32 A | 12 A |
| 40 A | 40 A | 18 A |
| 63 A | 63 A | 25 A |
| Current group | Poles | Dimensions |
| 16/20/25/32 A | 1P/2P | 18 ±0.2 × 85.5 ±0.5 × 68 ±0.4 mm |
| 16/20/25/32 A | 3P/4P | 36 ±0.4 × 85.5 ±0.5 × 68 ±0.4 mm |
| 40/63 A | 1P/2P | 36 ±0.4 × 90 ±0.5 × 68 ±0.4 mm |
| 40/63 A | 3P/4P | 54 ±0.8 × 90 ±0.5 × 68 ±0.4 mm |
| Circuit | Frame | Driver / strip length | Torque | Rigid conductor | Flexible / ferruled conductor |
| Control | 16-63 A | PZ1 / 4 mm; 9 mm | 0.8 N·m | 1.5-2.5 mm²; 2 × 1.5 mm² | 1.5-2.5 mm²; 2 × 2.5 mm² |
| Power | 16-32 A | PZ1 / 4 mm; 9 mm | 0.8 N·m | 1.5-6 mm² | 1-4 mm² |
| Power | 40-63 A | PZ2 / 6 mm; 14 mm | 3.5 N·m | 6-25 mm² | 6-16 mm² |
