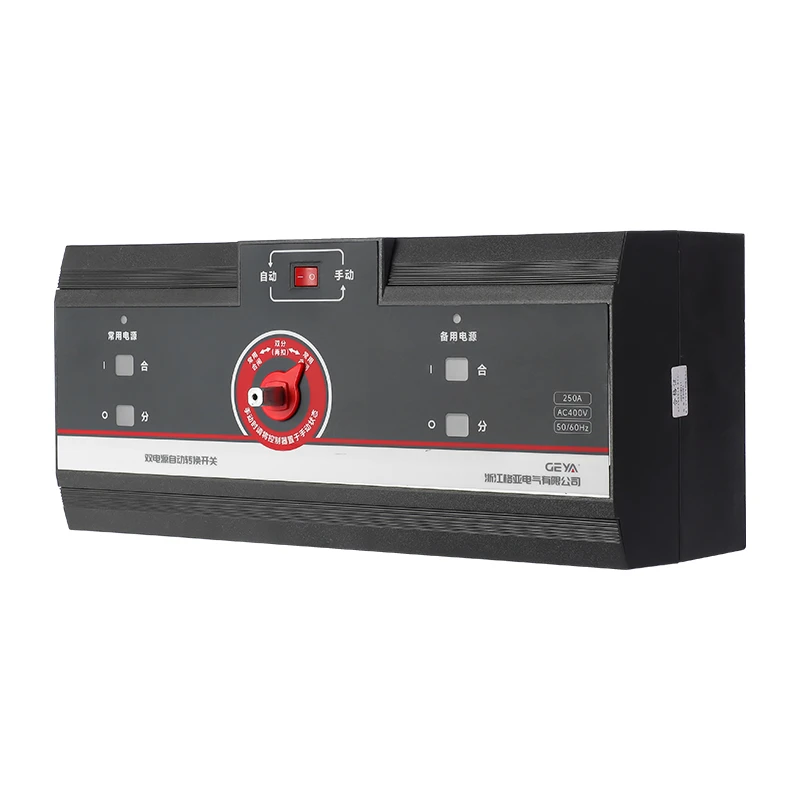

| Model | GATS-S7-63 | GATS-S7-100 | GATS-S7-225 |
| Shell Current Inm (A) | 63 | 100 | 225 |
| Nominal Insulation Voltage Ui | AC660V |
| Rated Operational Voltage Ue | AC400V |
| Rated Current Ie (A) | 16, 20, 25, 32, 40, 63 | 20, 25, 32, 40, 63, 80, 100 | 125, 140, 160, 200, 225 (250) |
| Poles | 3 Poles, 4 Poles |
| Rated Impulse Withstand Voltage | 4kV |
| Use Classes | AC-33iB |
| Rated Short Circuit Connection Capacity Icm | 7.65kA (CB Class) | 17kA (CB Class) | 17kA (CB Class) |
| Rated Short Circuit Breaking Capacity Icn | 5kA (CB Class) | 10kA (CB Class) | 10kA (CB Class) |
| Rated Short Circuit Current Iq (PC Class) | 5kA | 10kA | 10kA |
| Mechanical Life | 5,000 times |
| Electrical Life | 1,500 times | 1,500 times | 1,000 times |
| Contact Switching Time | < 2s |
| Fire Function & Generator Signal | Standard (Included) |
