GEYA

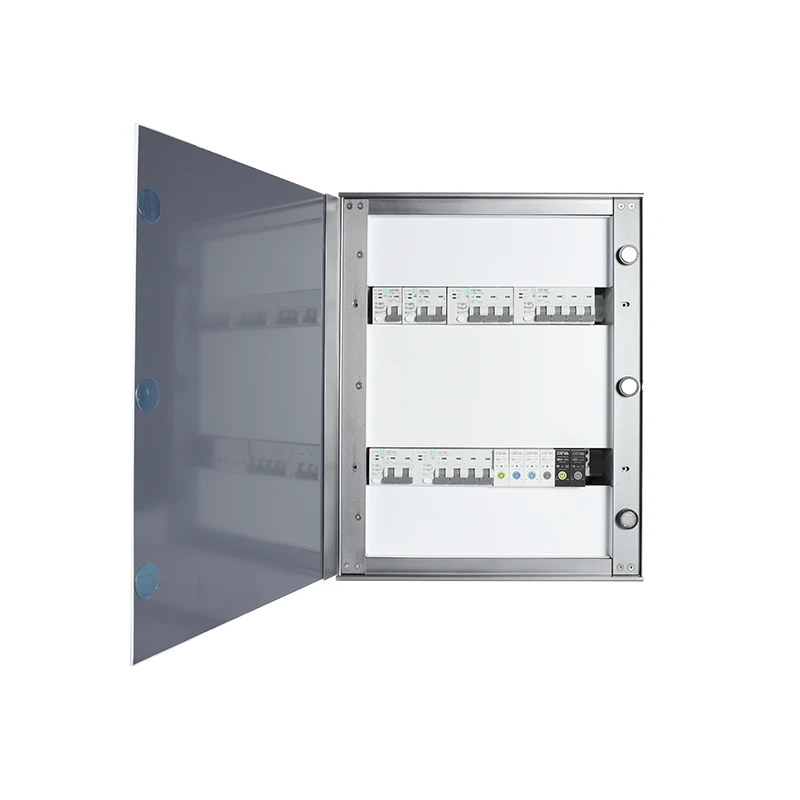

GBBL-A Series Tempered Glass Front Distribution Board

Պարագաներ և այլ սարքեր։ GBBL-A Series Tempered Glass Front Distribution Board։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։

Բրենդ	GEYA
Ապրանքային խումբ	Պարագաներ և այլ սարքեր

Տեխնիկական բնութագրեր

Code	Category	Description / Options
G	Company Code	GEYA
B	Box Type	Distribution Box
B	Material	B: Glass Panel
L	Code	Series Identifier
A	Style	Design Style A
12P-72P	Specification (Ways)	12P, 16P, 20P, 24P, 32P, 40P, 48P, 60P, 72P (Standard 18mm MCB capacity)
2	Copper Busbar	Standard dual copper bars: zero bar (neutral) and ground bar
B/H/L/J	Color Options	B: Moonlight White, H: Space Gray, L: Deep Sea Blue, J: Champagne Gold
–	Enclosure Thickness	0.8mm / 1.0mm / 1.2mm (Optional)

Parameter	Value
Product Name	GBBL-A Tempered Glass Panel MCB Distribution Box
Front Panel	Tempered glass with aluminum alloy frame
Enclosure Material	Cold-rolled steel sheet, powder-coated
Enclosure Thickness	0.8 mm / 1.0 mm / 1.2 mm (optional)
Number of Ways	12P / 16P / 20P / 24P / 32P / 40P / 48P / 60P / 72P
Module Pitch	18 mm per pole (standard DIN MCB)
DIN Rail	35 mm × 1.0 mm thickness, pre-installed
Busbar	Standard dual copper bars – neutral (top) + ground (bottom)
Rated Voltage	AC 230 V / 400 V, 50/60 Hz
Rated Current	Up to 125 A (incomer dependent)
Mounting	Surface mount / Flush mount (selectable)
Protection Degree	IP40 (indoor)
Operating Temperature	-5 °C to +40 °C
Color Options	B Moonlight White · H Space Gray · L Deep Sea Blue · J Champagne Gold (custom RAL on request)
Compatibility	Standard 18 mm DIN MCB / RCCB / RCBO / SPD / Isolator
Standard	IEC 61439-3 (low-voltage switchgear & controlgear assemblies)
