GEYA

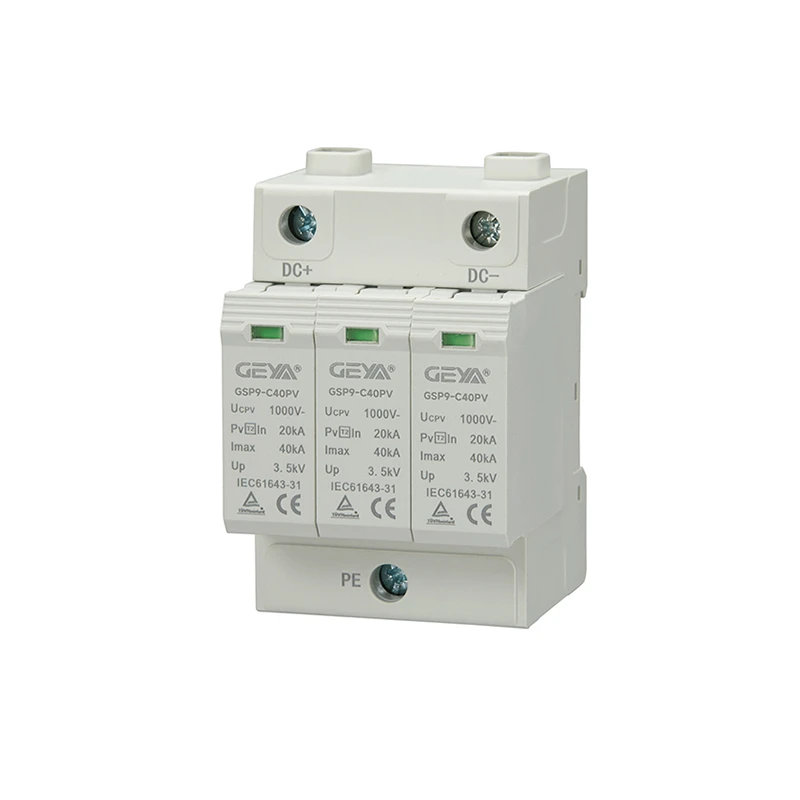

GSP9-C40PV DC SPD for Solar (600VDC~2000VDC 2~3P)
Արևային և էներգիայի կուտակում։ GSP9-C40PV DC SPD for Solar (600VDC~2000VDC 2~3P)։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Արևային և էներգիայի կուտակում |
Տեխնիկական բնութագրեր
| Mechanical Characteristics & Environment | |
| Connection By Screw Terminals | 6-25mm² |
| Terminal Screw Torque | 2.5 Nm |
| Recommended Cable Cross Section | ≥ 10mm² |
| Insert Wire Length | 15mm |
| Mounting DIN Rail | 35mm (EN60715) |
| Degree of Protection | IP20 |
| Housing Material | PBT/PA |
| Flame Retardant Grade | UL94 V0 |
| Operating Temperature | -40°C ~ +70°C |
| Operating Relative Humidity | 5% – 95% |
| Working Atmospheric Pressure | 70kPa ~ 106kPa |
| Model No. | Type U | Type Y |
| 600V Size (mm) | 36×83×67, 36×90×67 | 54×83×67, 54×90×67 |
| 1000V Size (mm) | 36×83×67, 36×90×67 | 54×83×67, 54×90×67 |
| 1500V / 2000V Size (mm) | / | 54×90×67, 81×90×67 |
| Packing | Inner box | |
| Delivery Packaging | Carton or Pallet |
| Technical Data | Symbol | 600VDC | 1000VDC | 1500VDC | 2000VDC |
| Max Continuous Operating Voltage | Ucpv | 600VDC | 1000VDC | 1500VDC | 2000VDC |
| Nominal Discharge Current (T2) | In | 20kA | 20kA | 20kA | 20kA |
| Maximum Discharge Current | Imax | 40kA | 40kA | 40kA | 40kA |
| Protection Level | Up | 3.0 kV | 3.5 kV | 5.5 kV | 6.5 kV |
| Admissible Short-circuit Current | Iscpv | 500A | |||
| Icpv PV | 0.2 mA | ||||
| Connection Mode | Parallel | ||||
| Response Time | tA | ≤ 25ns | |||
| SPD Special Disconnector | Recommend | SSD40 | |||
| Remote Communication | With (Optional) | ||||
| Remote Communication Connection | 14 11:NO, 11 12:NC | ||||
| Remote Contact RatedCurrent | 220V / 0.5A | ||||
| Thermal Disconnector | Internal |
