GEYA

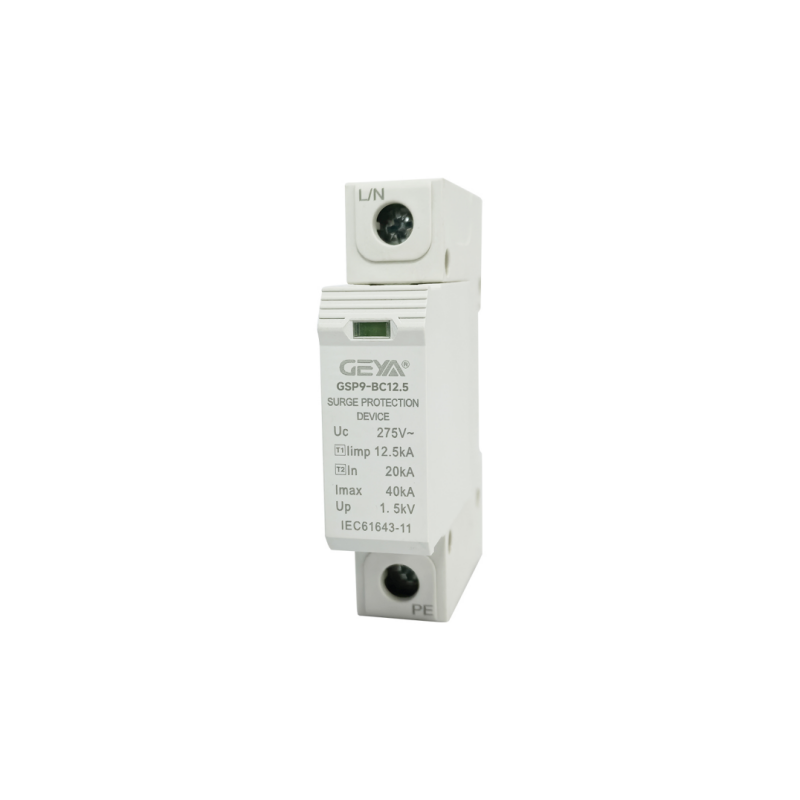

GSP9-BC12.5 Surge Protective Device
Լարման և գերլարման պաշտպանիչներ։ GSP9-BC12.5 Surge Protective Device։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Լարման և գերլարման պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Mechanical Characteristics & Environment | |
| Connection By screw terminals | 6-25 mm² |
| Terminal Screw Torque | 2.5 Nm |
| Recommended Cable cross Section | ≥ 16 mm² |
| Insert wire length | 15mm |
| Mounting DIN rail | 35mm (EN60715) |
| Degree of Protection | IP20 |
| Housing Material | PBT/PA |
| Flame retardant grade | UL94 V0 |
| Operating temperature | -40°C ~ +70°C |
| Operating relative humidity | 5% – 95% |
| Working atmospheric pressure | 70kPa ~ 106kPa |
| Poles | 1P | 1+NPE | 2P | 3P | 4P | 3+NPE |
| Size (mm) | 18×90×67 | 36×90×67 | 36×90×67 | 54×90×67 | 72×90×67 | 72×90×67 |
| Packing | Inner box | |||||
| Delivery packaging | Carton or Pallet |
| Technical Data (T1+T2+T3) | Symbol | L-N (6.25kA) | L-N (8kA) | L-N (12.5kA) | N-PE |
| Max Continuous Operating Voltage | (AC) Uc | 275V | 275V | 275V | 255V |
| Rated Voltage | (AC) Un | 220V | 220V | 220V | 220V |
| Maximum Impact Current (T1) | Iimp | 6.25kA | 8kA | 12.5kA | 25kA |
| Nominal Discharge Current (T2) | In | 20kA | 20kA | 20kA | 25kA |
| Open Circuit Voltage (T3) | Uoc | 20kV | 20kV | 20kV | 20kV |
| Protection Level | Up | 1.25kV | 1.25kV | 1.25kV | 1.5kV |
| Follow Current Interrupt Rating | Ifi | 300A | 300A | 300A | 100A |
| Response Time | tA | 25ns | 25ns | 25ns | 100ns |
| TOV | N-PE | 1200V | |||
| Residual / Leakage Current | Ipe | NONE | |||
| Remote Communication | With | ||||
| Remote Communication Connection | 14 11:NO, 11 12:NC | ||||
| Remote Contact Rated Current | 220V / 0.5A | ||||
| Thermal Disconnector | Disconnector internal | ||||
| SPD Special Disconnector | Recommend | SSD15X |
