GEYA

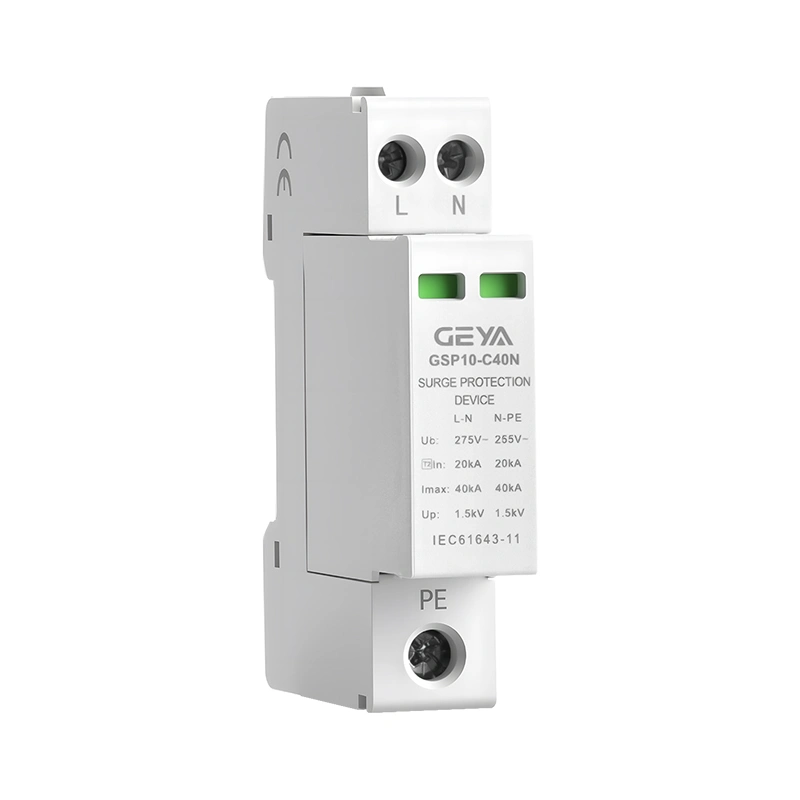

GSP10-C40N T2 Surge Protection Device
Լարման և գերլարման պաշտպանիչներ։ GSP10-C40N T2 Surge Protection Device։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Լարման և գերլարման պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Technical Data (Type 2 (T2)) | Option 1 | Option 2 | Option 3 | |
| Max Continuous Operating Voltage | Uc | 275V | 320V | 385V |
| Rated Voltage | Un | 220V | 220V | 220V |
| Nominal discharge current (T2) | In | 20kA | 20kA | 20kA |
| Maximum discharge current | Imax | 40kA | 40kA | 40kA |
| Protection level | Up(L-N) | 1.5kV | 1.5kV | 1.8kV |
| Protection level | Up(N-PE) | 1.2kV | 1.2kV | 1.2kV |
| Follow Current Interrupt Rating | In | 100A(N-PE) | ||
| Response Time | tA | 25ns | ||
| SPD Special disconnector | Recommend | SSD40 | ||
| TOV | N-PE | 1200V | ||
| Residual current-Leakage current at | Ipe | NONE | ||
| Admissible short-circuit current | Isccr | 25000A | ||
| Remote communication | √ | |||
| Remote communication connection | 14 11:NO, 11 12:NC | |||
| Remote contact rated current | 220V/0.5A | |||
| Associated disconnectors | ||||
| Thermal | disconnector internal | |||
| Mechanical characteristics | ||||
| Connection By screw terminals | 4-16 mm² | |||
| Terminal Screw Torque | The upper 1.2Nm, The bottom 2.0 Nm | |||
| Recommended Cable cross Section | ≥ 10mm² | |||
| Insert wire length | The upper 12mm, The bottom 15mm | |||
| Mounting DIN rail | 35mm (EN60715) | |||
| Degree of Protection | IP20 | |||
| Housing | PBT/PA | |||
| Flame retardant grade | UL94 V0 | |||
| Operating temperature | -40°C ~ +70°C | |||
| Operating relative humidity | 5%-95% | |||
| Working atmospheric pressure | 70kPa ~ 106kPa |
