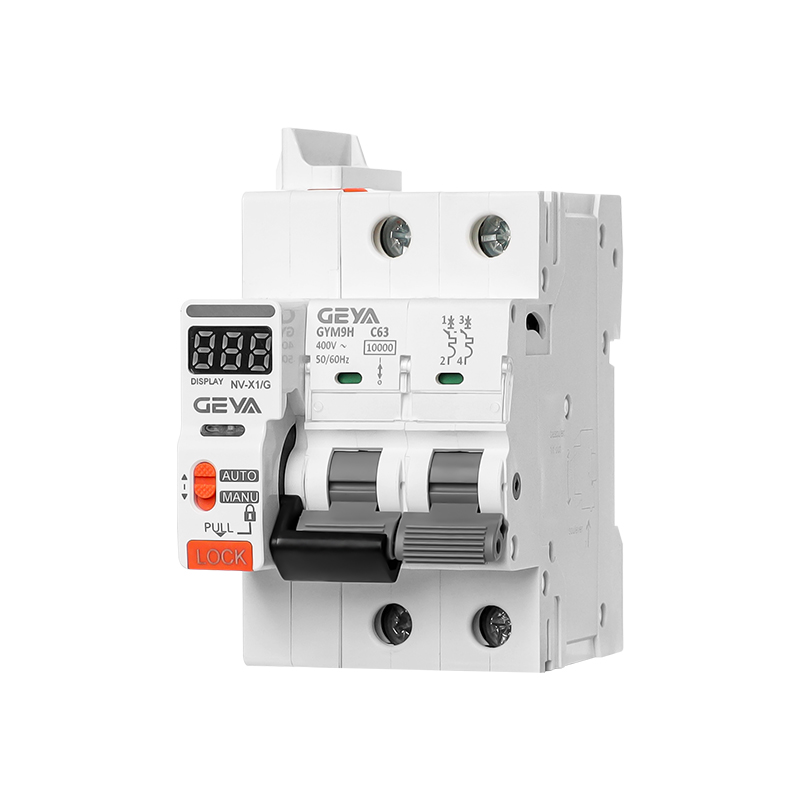

GYAR9-NV-X1 G+GYM9H 2P~4P Smart Auto Recloser
Ավտոմատներ և պաշտպանիչներ։ GYAR9-NV-X1 G+GYM9H 2P~4P Smart Auto Recloser։ Մոդելի տեխնիկական տվյալներ և գնառաջարկ ԲիգՎոլտից։
| Բրենդ | GEYA |
| Ապրանքային խումբ | Ավտոմատներ և պաշտպանիչներ |
Տեխնիկական բնութագրեր
| Technical Features | GYAR9-NV-X1 Series Specifications | |
| Suitable for | MCBs series RCCBs (up to 100A) and B type (up to 63A) RCBOs Switch Disconnectors | |
| Number of modules | 1 | |
| Operating voltage | 24…48 V AC/DC -10% +10% | 230-240 V AC -15% +10% |
| Minimum operating voltage | 21.6 V AC/DC / 110 V AC | 230-240 V AC -15% +10% |
| Power consumption during operation | <28 VA | <30 VA |
| Power consumption at rest | <1 VA | <1.5 VA |
| Closing time | <1 s | |
| Opening time | <1 s | |
| Mechanical endurance | 10000 | |
| Protection degree acc. To EN 60529 | IP40 (housing) / IP20 (terminals) | |
| Operating temperature (daily average ≤ +35 °C) | -25 … +60 °C | |
| Storage temperature | -40 … +70 °C | |
| Overvoltage category | III | |
| Pollution degree acc. to EN 60664 | 2 | |
| Shock resistance acc. to IEC/EN 60068-2-27 | 25g, 2 shocks, 13ms | |
| Vibration resistance acc. to IEC/EN 60068-2-6 | 1g – 20 cycle at 5… 150 …5 Hz | |
| Environmental conditions (damp heat) | 28 cycles with 55°C/90-96% and 25°C/95-100% | |
| Terminal type | plug-in | |
| Cross-section of conductors | 0.2…2.5 mm² | |
| Tightening torque | 0.4 Nm | |
| Stripping length of the cable | 5 mm | |
| Cable length of the control circuits | 10 m | |
| Remote control: close contact* | Terminal 6 | |
| Remote control: open contact | Terminal 5 | |
| Auxiliary contact | Terminal 4 | |
| Signal contact | Terminal 3 |
